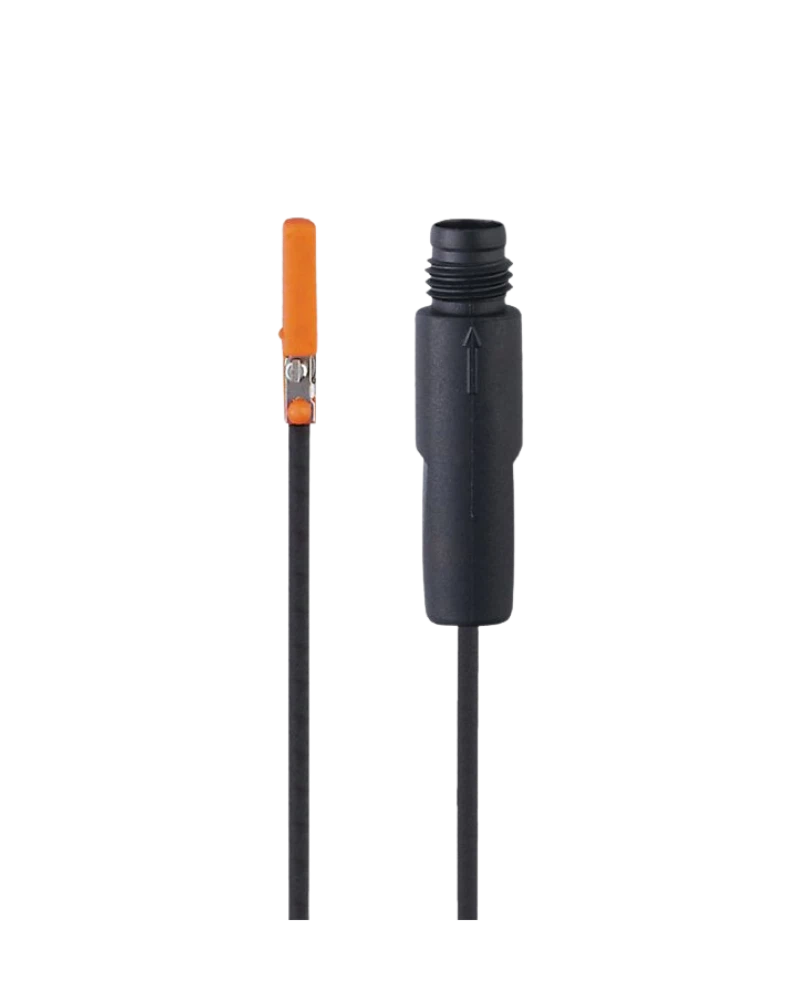

MK5301 is a compact C-slot cylinder sensor with a PNP normally open output. It operates from 10…30 V DC and supports switching frequencies up to 10 kHz. The sensor provides 2.8 mT magnetic sensitivity and contactless piston detection. Its 17.5 × 2.8 × 7.7 mm housing supports compact cylinder installation. A 0.3 m PUR cable with M8 connection provides flexible integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5301 detects the magnetic piston position inside C-slot cylinders. Its 2.8 mT sensitivity provides dependable switching. The sensor supports travel speeds above 10 m/s. Its 10 kHz switching frequency supports rapid pneumatic cycles. This provides reliable position feedback for automated equipment.
The sensor operates from 10…30 V DC. Current consumption is below 10 mA. The PNP output provides 100 mA continuous current. Short-circuit and overload protection are included. Reverse polarity protection improves electrical reliability.
The sensor measures 17.5 × 2.8 × 7.7 mm. It is designed for non-flush C-slot mounting. The 0.3 m PUR cable terminates at an M8 connector. A stainless-steel fastening clamp holds the sensor in place. IP65/IP67 protection supports factory automation.
C-slot cylinder sensor
PNP design
Normally open
10…30 V DC
<10 mA consumption
100 mA output
10 kHz switching
2.8 mT sensitivity
0.3 m PUR cable
M8 connector
PA housing
Stainless-steel clamp
Yellow LED
IP65/IP67
Non-flush mounting
Short-circuit protection
Overload protection
C-slot cylinders
Pneumatic automation
Packaging machinery
Assembly equipment
Robotics
Material handling
Machine tools
Factory automation
Pneumatic grippers
Position detection
The high switching frequency supports rapid piston movement. Magnetic sensing provides contactless detection. The 2.8 mT sensitivity supports reliable switching. Low hysteresis supports consistent operation. This makes MK5301 suitable for repetitive automation cycles.
The 0.3 m PUR cable reduces unnecessary wiring. The M8 connector provides a standard automation interface. The compact sensor body fits narrow C-slots. The stainless-steel clamp provides stable retention. This simplifies installation and servicing.
| Specification | MK5301 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5301 |
| Product type | C-slot cylinder sensor |
| Order code | MKC3028-BPKG/G/0,3M/ZH/AS |
| Sensor principle | Magnetic |
| Electrical design | PNP |
| Output function | Normally open |
| Supply voltage | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 30 ms |
| Output current | 100 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 10,000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.8 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 17.5 × 2.8 × 7.7 mm |
| Mounting | Non-flush |
| Cylinder type | C-slot |
| Housing | PA |
| Clamp | Stainless steel |
| Cable | 0.3 m PUR |
| Connector | M8 |
| Protection | IP65/IP67 |
