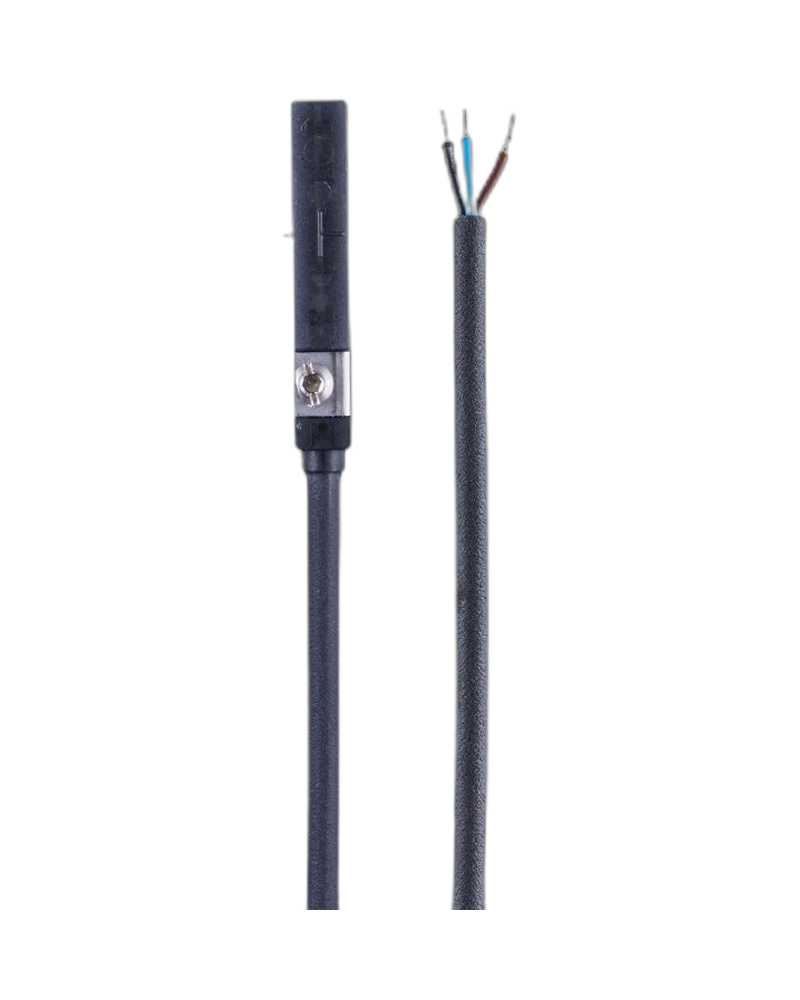

MK5249 is a long-cable T-slot cylinder sensor for pneumatic position detection. It uses a PNP normally open output and operates from 10…30 V DC. The sensor provides 2.3 mT magnetic sensitivity and 2000 Hz switching frequency. Its 6 m cable provides extended connection reach in larger machines. The compact housing supports flush installation in T-slot cylinders.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5249 uses a 6 m connection length for extended machine wiring. This reduces the need for intermediate extensions in larger installations. The PNP normally open output interfaces directly with control systems. Its 2.3 mT sensitivity provides reliable piston detection. The configuration is useful where sensors are positioned far from control cabinets.
The sensor operates from 10…30 V DC. Current consumption is below 15 mA. The output supports 100 mA continuous current. Short-circuit and overload protection are provided. Switching frequency reaches 2000 Hz.
MK5249 measures 25 × 5 × 6.5 mm. The T-slot fastening system supports flush mounting. The compact housing is suitable for pneumatic cylinders. The 6 m cable provides long-distance connection. IP65/IP67 protection supports industrial environments.
T-slot cylinder sensor
PNP output
Normally open
10…30 V DC
<15 mA current
100 mA output
2000 Hz switching
2.3 mT sensitivity
10 m/s travel speed
6 m cable
Short-circuit protection
Overload protection
Reverse polarity protection
25 × 5 × 6.5 mm
Yellow LED
Flush mounting
IP65/IP67
Large machines
Pneumatic cylinders
Production lines
Packaging systems
Assembly equipment
Robotics
Material handling
Machine tools
Factory automation
Remote control cabinets
The 6 m cable provides additional reach between sensor and controller. This is useful on large production machines. It can reduce the number of cable extensions required. The sensor remains compact at the cylinder. This simplifies distributed machine wiring.
The yellow LED helps technicians confirm switching status. The self-locking mounting mechanism supports adjustment. The long cable simplifies replacement where control cabinets are distant. IP65/IP67 protection supports industrial operation. This makes the sensor practical for maintenance-heavy machinery.
| Specification | MK5249 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5249 |
| Product type | T-slot cylinder sensor |
| Order code | MKT3028BBPKG/A/6,0M/ZH |
| Sensor principle | Magnetic |
| Electrical design | PNP |
| Output function | Normally open |
| Supply | 10…30 V DC |
| Current consumption | <15 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | <50 ms |
| Output current | 100 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 2000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.3 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 25 × 5 × 6.5 mm |
| Mounting | Flush |
| Cylinder type | T-slot |
| Cable length | 6 m |
| Cable construction | Industrial sensor cable |
| Indicator | Yellow LED |
| Protection | IP65/IP67 |
| Application | Piston position detection |
