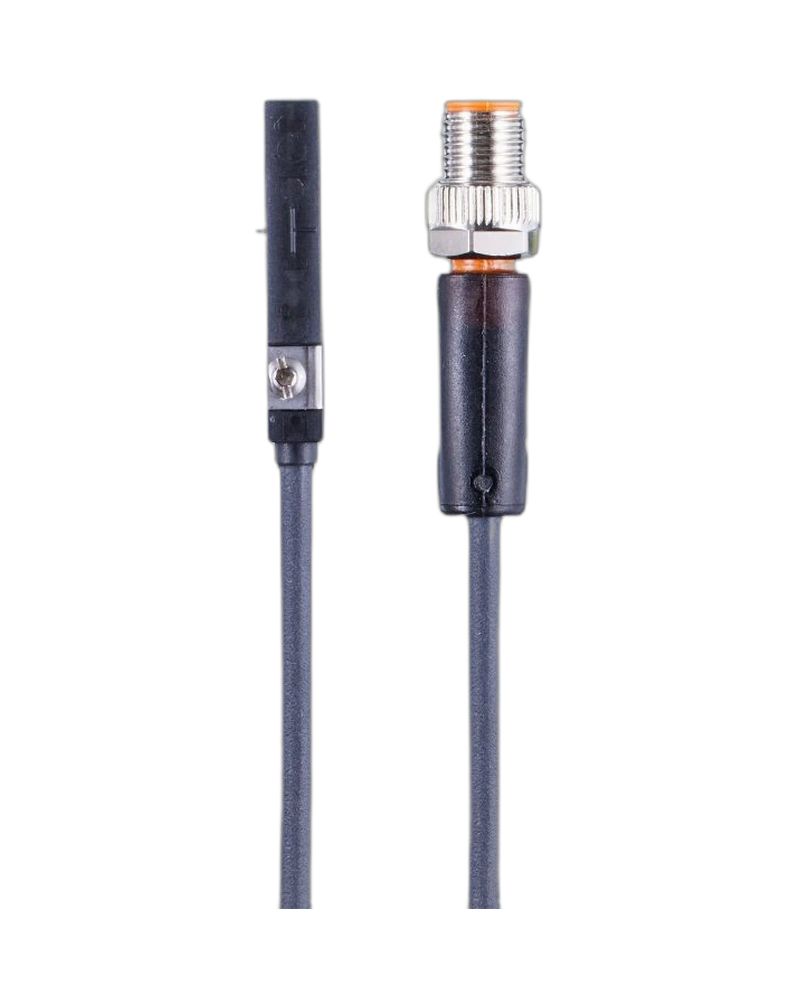

MK5247 is an AMR-based T-slot cylinder sensor for precise pneumatic position detection. It uses a PNP normally open output with 10…30 V DC operation. The sensor provides 2.3 mT magnetic sensitivity and 2000 Hz switching frequency. Its 25 × 5 × 6.5 mm housing is designed for compact flush installation. A 0.3 m cable with M8 connection supports straightforward industrial integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5247 uses an AMR sensing cell for magnetic piston detection. It provides 2.3 mT response sensitivity. The sensor supports travel speeds above 10 m/s. Repeatability is better than 0.2 mm. This makes it suitable for high-speed pneumatic position monitoring.
The sensor operates from 10…30 V DC. Its PNP normally open output supports 100 mA continuous current. Switching frequency is 2000 Hz. Short-circuit and overload protection are included. Reverse polarity protection further improves electrical robustness.
MK5247 uses a flush-mount T-slot design. The sensor measures 25 × 5 × 6.5 mm. A 0.3 m cable terminates in an M8 connector. The self-locking fastening system supports quick adjustment. IP65/IP67 protection supports factory environments.
AMR sensing cell
T-slot mounting
PNP output
Normally open
10…30 V DC
100 mA output
2000 Hz switching
2.3 mT sensitivity
10 m/s travel speed
Short-circuit protection
Overload protection
0.3 m cable
M8 connector
25 × 5 × 6.5 mm
Yellow LED
IP65/IP67
Flush installation
Self-locking clamp
3-wire design
Pneumatic cylinders
Fast automation
Packaging systems
Robotic machinery
Assembly machines
Pneumatic grippers
Material handling
Machine tools
Factory automation
Position feedback
The AMR sensor provides contactless magnetic detection. Its high switching frequency supports rapid cylinder movements. The 2.3 mT sensitivity provides reliable piston recognition. Low hysteresis supports repeatable switching. This is useful for automated pneumatic sequences.
The 0.3 m cable simplifies installation in compact machines. The M8 connection provides a standard industrial interface. The self-locking clamp maintains sensor position. The yellow LED gives direct switching feedback. These features simplify commissioning and maintenance.
| Specification | MK5247 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5247 |
| Product type | T-slot cylinder sensor |
| Order code | MKT3028BBPKG/A/0,3M/ZH/ASR |
| Sensing technology | AMR |
| Electrical design | PNP |
| Output function | Normally open |
| Supply voltage | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Output current | 100 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 2000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.3 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 25 × 5 × 6.5 mm |
| Mounting | Flush |
| Cylinder type | T-slot |
| Housing | PA |
| Clamp | Stainless steel |
| Cable length | 0.3 m |
| Connector | M8 |
| LED | Yellow |
| Protection | IP65/IP67 |
| Product category | Cylinder sensor |
