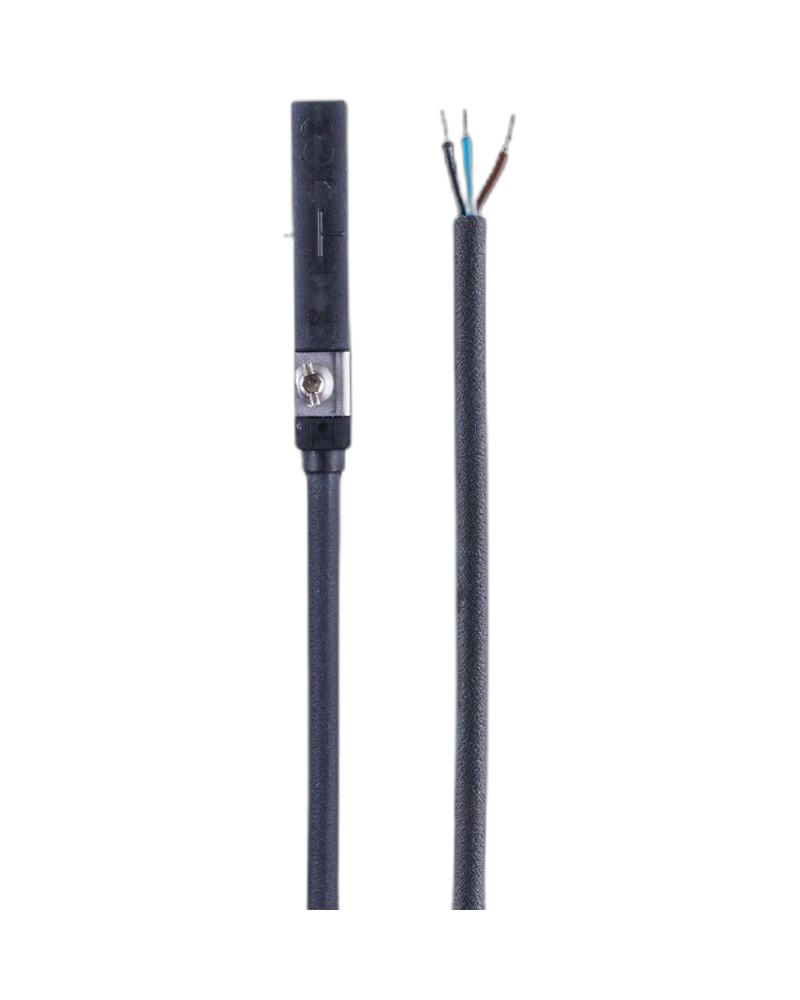

MK5245 is a compact T-slot cylinder sensor for pneumatic piston-position detection. It provides a PNP normally open output and operates from 10…30 V DC. The sensor offers 2.3 mT magnetic sensitivity and 2000 Hz switching frequency. Its 25 × 5 × 6.5 mm body supports compact cylinder installation. The integrated mounting system allows quick adjustment and reliable positioning.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5245 detects the piston magnet without mechanical contact. Its 2.3 mT sensitivity supports dependable switching. The sensor can detect piston movement at speeds above 10 m/s. Repeatability is better than 0.2 mm. This makes it suitable for repetitive pneumatic operations.
The sensor operates from 10…30 V DC. Current consumption is below 15 mA. Its PNP normally open output supports 100 mA continuous current. Short-circuit and overload protection are included. The maximum output voltage drop is 2.5 V.
MK5245 has a compact 25 × 5 × 6.5 mm housing. The mounting clamp allows installation directly into T-slots. Its stainless-steel fixing element provides mechanical retention. A yellow LED indicates switching status. IP65/IP67 protection supports industrial pneumatic equipment.
T-slot cylinder sensor
PNP output
Normally open
10…30 V DC
<15 mA consumption
100 mA output
2000 Hz switching
2.3 mT sensitivity
10 m/s travel speed
Short-circuit protection
Overload protection
25 × 5 × 6.5 mm
Stainless-steel fastening
Yellow LED
IP65/IP67
Flush mounting
Pneumatic cylinders
Robotic actuators
Packaging machines
Assembly systems
Material handling
Machine tools
Pneumatic grippers
Factory automation
Production equipment
Position monitoring
The 2000 Hz switching frequency supports rapid pneumatic cycles. Magnetic sensing eliminates mechanical contact wear. The sensor provides consistent piston-position feedback. Low hysteresis supports repeatable switching. This improves automated cylinder sequencing.
The sensor can be mounted directly in the cylinder slot. Its compact body requires little installation space. The fastening element supports easy adjustment. LED indication simplifies commissioning. The sensor is suitable for standard industrial pneumatic systems.
| Specification | MK5245 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5245 |
| Product type | T-slot cylinder sensor |
| Order code | MKT3028BBPKG/A/ZH |
| Sensor principle | Magnetic |
| Electrical design | PNP |
| Output function | Normally open |
| Supply | 10…30 V DC |
| Current consumption | <15 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | <50 ms |
| Output voltage drop | 2.5 V |
| Output current | 100 mA |
| Switching frequency | 2000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.3 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 25 × 5 × 6.5 mm |
| Cylinder type | T-slot |
| Mounting | Flush |
| Housing | PA |
| Fastening | Stainless steel clamp |
| Indicator | Yellow LED |
| Protection | IP65/IP67 |
| Application | Piston position detection |
