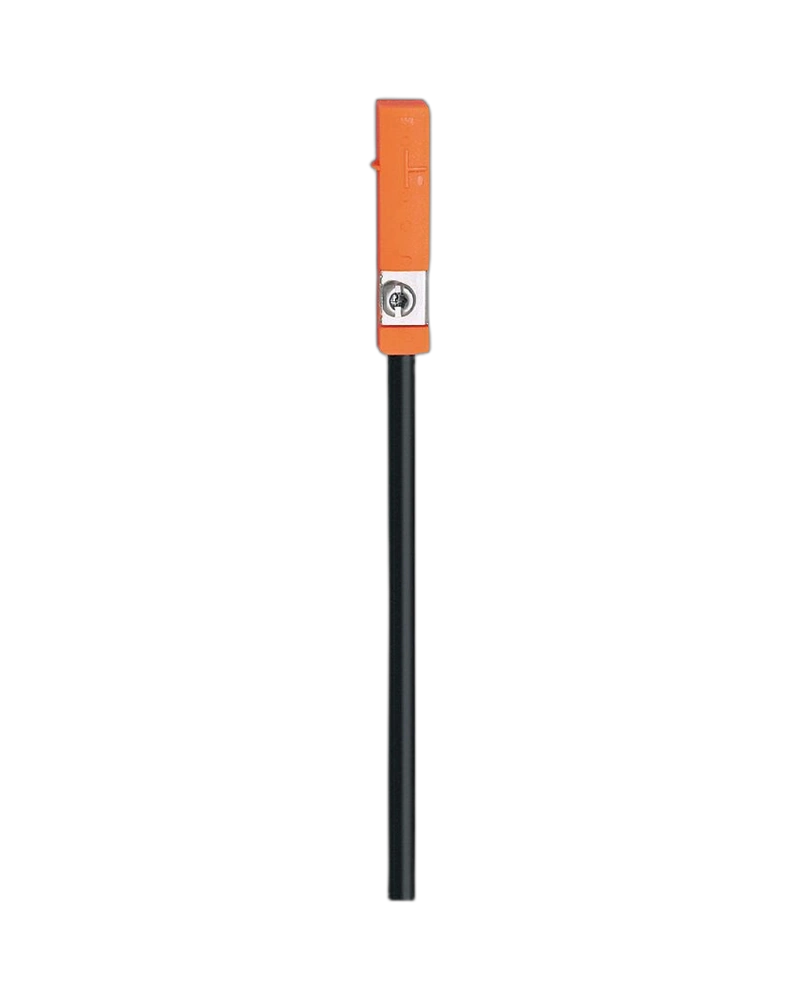

MK5230 is a compact T-slot cylinder sensor for pneumatic piston-position detection. It uses a PNP normally open output and operates from 10…30 V DC. The sensor provides 2.8 mT magnetic sensitivity and supports switching frequencies up to 10 kHz. Its 25 × 5 × 6.5 mm housing fits directly into compatible T-slot cylinders. The 0.07 m connection length is suitable for compact machine installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5230 provides fast magnetic piston detection inside pneumatic cylinders. Its PNP normally open output interfaces directly with common PLC inputs. The 2.8 mT sensitivity provides reliable piston recognition. The sensor supports travel speeds above 10 m/s. This makes it suitable for high-speed pneumatic automation.
The sensor operates between 10 and 30 V DC. Current consumption remains below 10 mA. Reverse polarity, short-circuit and overload protection are provided. The output can handle 100 mA continuous current. A 2.5 V maximum voltage drop is specified.
The compact housing measures 25 × 5 × 6.5 mm. Its T-slot fastening arrangement supports quick sensor installation. The short connection length reduces cable routing requirements. A visible LED provides switching-status indication. IP65/IP67 protection supports factory environments.
T-slot cylinder sensor
PNP output
Normally open
10…30 V DC
<10 mA current
100 mA output
10 kHz switching frequency
2.8 mT sensitivity
10 m/s travel speed
Short-circuit protection
Overload protection
Reverse polarity protection
25 × 5 × 6.5 mm housing
0.07 m connection
Yellow LED
IP65/IP67 protection
Flush installation
Self-locking mounting
Pneumatic cylinders
Pneumatic grippers
Packaging machines
Assembly systems
Material handling
Machine tools
Robotics
Factory automation
Position detection
Automated production
The high switching frequency supports rapid piston movement. Magnetic detection provides contactless operation. The sensor avoids mechanical switching wear. Repeatable position detection supports automated sequences. This improves reliability in repetitive pneumatic cycles.
The small housing requires minimal cylinder-slot space. Its short cable connection supports compact control layouts. The mounting mechanism simplifies adjustment. LED indication assists commissioning. The sensor is well suited to standard pneumatic automation.
| Specification | MK5230 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5230 |
| Product type | T-slot cylinder sensor |
| Order code | MKT3028BBPKG/G/0,07M/ZH |
| Sensor principle | Magnetic |
| Electrical design | PNP |
| Output | Normally open |
| Supply | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | <30 ms |
| Voltage drop | 2.5 V |
| Output current | 100 mA |
| Switching frequency | 10,000 Hz |
| Short-circuit protection | Yes |
| Protection type | Pulsed |
| Overload protection | Yes |
| Sensitivity | 2.8 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Housing size | 25 × 5 × 6.5 mm |
| Cylinder type | T-slot |
| Mounting | Flush |
| Connection length | 0.07 m |
| Connection type | Cable |
| LED | Yellow |
| Protection | IP65/IP67 |
| Application | Pneumatic position detection |
