MK5215 is a T-slot cylinder sensor developed for pneumatic position detection in welding environments. It provides a PNP normally open output with 10…30 V DC operation. The sensor includes interference-field suppression for improved operation near welding equipment. Its PTFE-coated protective construction helps resist welding spatter. The compact design supports quick mounting directly into compatible T-slots.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5215 is designed specifically for applications exposed to welding processes. It suppresses unwanted magnetic fields generated by welding equipment. A PTFE protective tube helps protect the sensor cable and body from welding spatter. The connector also uses a non-stick protective treatment. These features make the sensor suitable for robotic welding cells.
The sensor detects the magnetic field generated by the cylinder piston. Its 2.8 mT response sensitivity supports reliable piston detection. The normally open PNP output provides a straightforward PLC interface. The sensor supports fast pneumatic movement with travel speeds above 10 m/s. Repeatability remains below 0.2 mm.

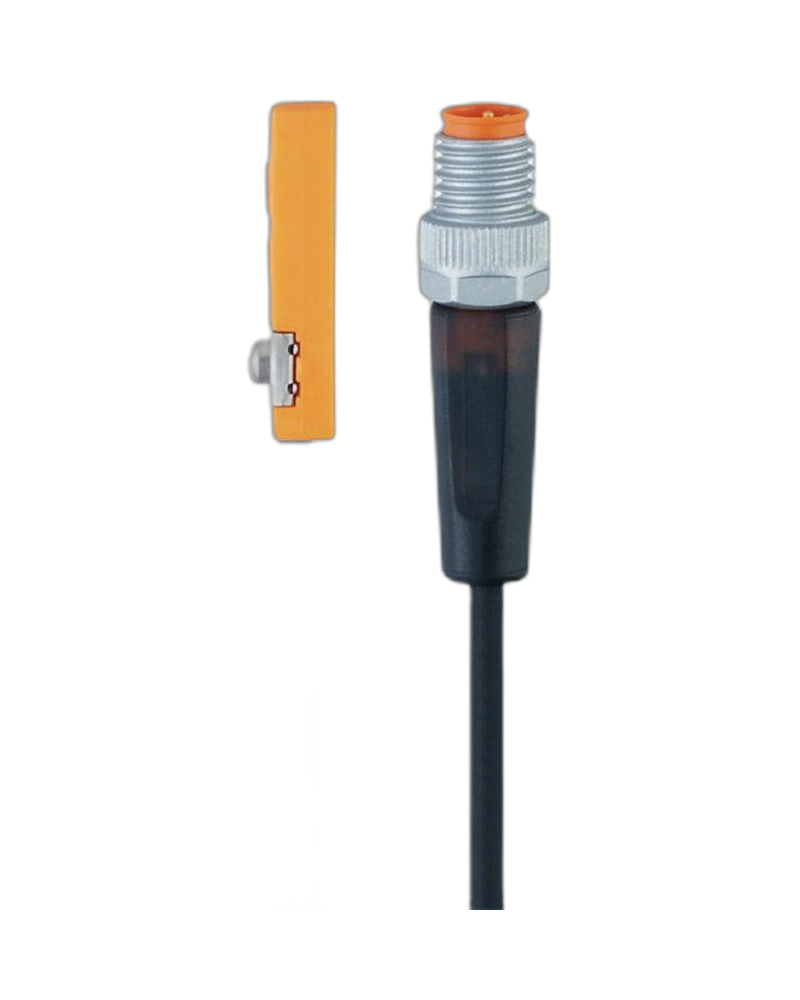

MK5215 measures approximately 25.3 × 5 × 6.5 mm. Its self-locking fastening clamp simplifies installation and adjustment. The sensor can be inserted from the top of a T-slot. A 0.3 m PUR cable terminates in an M8 connector. IP65/IP67 protection supports industrial machine environments.
T-slot cylinder sensor
Welding-compatible design
Magnetic-field suppression
PNP output
Normally open switching
10…30 V DC
2.8 mT magnetic sensitivity
10 m/s travel speed
2000 Hz switching frequency
Short-circuit protection
Overload protection
PTFE protective tube
PTFE-coated knurled nut
0.3 m PUR cable
M8 connector
Yellow switching LED
Self-locking fastening
IP65/IP67 protection
Stainless-steel clamp
Robotic welding
Welding cells
Pneumatic cylinders
Industrial robots
Automated assembly
Metal fabrication
Machine tools
Material handling
Pneumatic grippers
Factory automation
The sensor is designed for installation close to welding equipment. Magnetic-field suppression reduces unwanted switching caused by welding currents. PTFE protection reduces exposure to welding spatter. The connector construction supports repeated industrial use. This makes MK5215 suitable for automated welding systems.
The self-locking clamp makes sensor adjustment straightforward. The visible LED assists commissioning and troubleshooting. The compact housing fits directly into standard T-slots. The 0.3 m PUR cable provides flexible connection routing. This simplifies maintenance in robotic machine cells.
| Specification | MK5215 |
|---|---|
| Manufacturer | ifm electronic |
| Model | MK5215 |
| Product type | T-slot cylinder sensor |
| Order code | MKT3028BBPKG/G/WFI/0,3M/ZH/ASR |
| Sensor principle | Magnetic |
| Application | Welding |
| Magnetic-field suppression | Yes |
| Electrical design | PNP |
| Output function | Normally open |
| Supply voltage | 10…30 V DC |
| Current consumption | <15 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Power-on delay | <50 ms |
| Output current | 100 mA |
| Voltage drop | 2.5 V |
| Switching frequency | 2000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2.8 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Housing dimensions | 25.3 × 5 × 6.5 mm |
| Housing material | PA |
| Clamp material | Stainless steel |
| Cable | 0.3 m PUR |
| Connector | M8 |
| Protective tube | PTFE-coated |
| Protection | IP65/IP67 |
