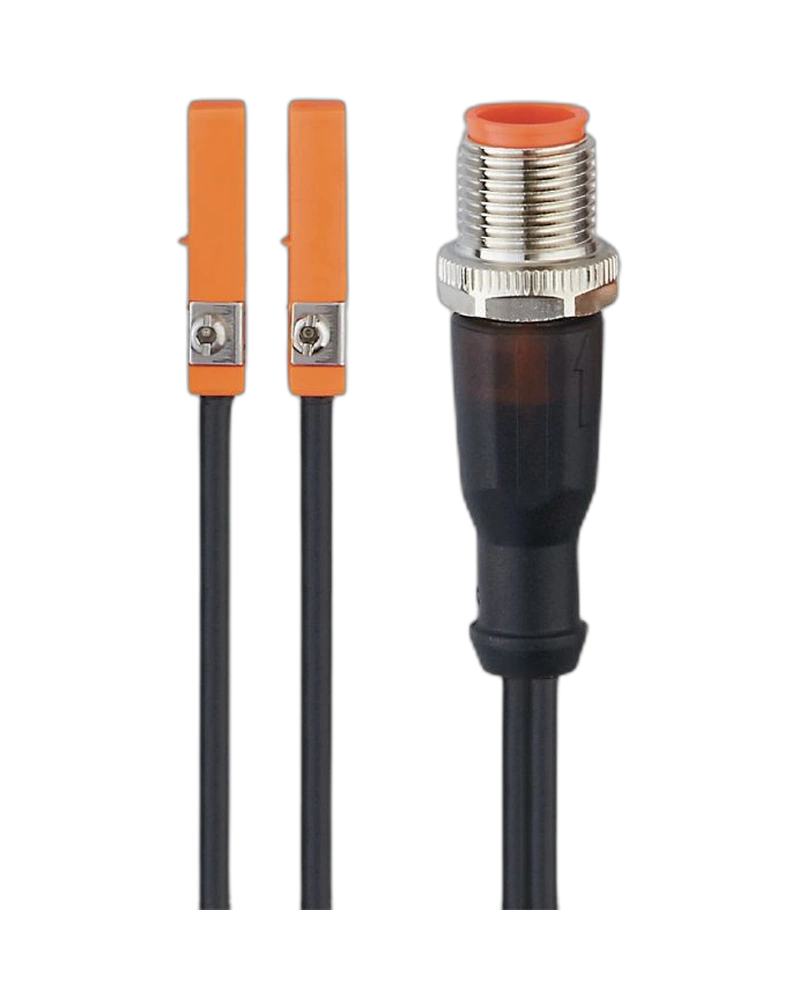

MK5209 is a dual-channel T-slot cylinder sensor designed for pneumatic piston-position detection. It provides two normally open PNP outputs and operates from 10…30 V DC. The sensor supports a high 6000 Hz switching frequency for fast cylinder movements. Its compact 25 × 5 × 6.5 mm body mounts directly into compatible T-slots. A 0.3 m PUR cable with M12 connector provides the electrical connection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5209 can be inserted directly into the T-slot of compatible pneumatic cylinders. Its self-locking fastening mechanism supports quick positioning. The compact sensor body allows flush installation. The fastening arrangement makes adjustment straightforward. This reduces installation effort during machine assembly.
The sensor provides two normally open PNP switching outputs. Dual outputs allow two piston positions to be monitored using one sensor assembly. The switching frequency reaches 6000 Hz. Each output supports up to 100 mA permanent current. Short-circuit and overload protection are included.
MK5209 operates from 10…30 V DC and has reverse-polarity protection. The sensor operates between -25 and 85 °C. IP65/IP67 protection supports industrial pneumatic applications. A 0.3 m PUR cable provides the connection to the M12 connector. The compact construction is suitable for automated cylinder systems.
T-slot cylinder sensor
Dual-channel detection
PNP electrical design
Two normally open outputs
10…30 V DC
<10 mA current consumption
6000 Hz switching frequency
100 mA output current
2.5 V voltage drop
Short-circuit protection
Overload protection
2 mT magnetic sensitivity
10 m/s travel speed
25 × 5 × 6.5 mm dimensions
0.3 m PUR cable
M12 connector
IP65/IP67 protection
Yellow LED
Flush mounting
Self-locking fastening
Pneumatic cylinders
T-slot cylinders
Piston position sensing
Machine automation
Packaging machinery
Pick-and-place systems
Material handling
Industrial automation
Machine tools
Factory automation
MK5209 detects the magnetic field from the piston magnet. Its 2 mT magnetic sensitivity provides reliable switching. The 6000 Hz switching frequency supports high-speed cylinder operation. Low hysteresis helps improve position detection. This makes the sensor suitable for fast pneumatic automation.
The moulded PUR cable provides good strain relief. The 0.3 m cable length supports compact cylinder installations. The M12 connection provides a standard industrial interface. The self-locking mounting clamp simplifies positioning. These features support reliable installation in moving pneumatic systems.
| Specification | MK5209 |
|---|---|
| Product type | T-slot cylinder sensor |
| Manufacturer | ifm electronic |
| Model | MK5209 |
| Technical code | MKT3020BBPKG/A/0,3M/ZH/US/2X |
| Sensor principle | Magnetic |
| Electrical design | PNP |
| Output channels | 2 |
| Output function | 2 × normally open |
| Supply voltage | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 30 ms |
| Maximum voltage drop | 2.5 V |
| Permanent output current | 100 mA |
| Switching frequency | 6000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1 mm |
| Repeatability | <0.2 mm |
| Ambient temperature | -25…85 °C |
| Protection rating | IP65/IP67 |
| Dimensions | 25 × 5 × 6.5 mm |
| Mounting | Flush mount |
| Cylinder type | T-slot |
| Cable | 0.3 m PUR |
| Connector | M12 |
| LED | Yellow switching-status LED |
| Housing material | PA |
| Fastening | Self-locking clamp |
| Weight | 23.77 g |
| Pack quantity | 1 |
| Output type | Normally open |
