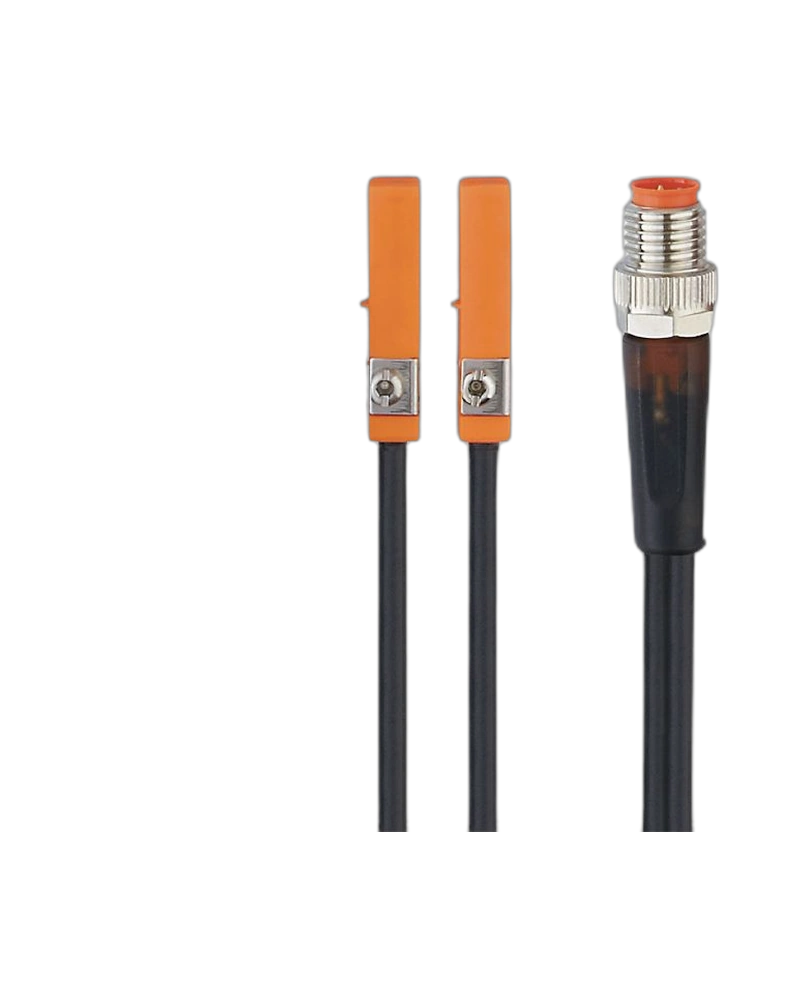

MK5208 is a dual-channel T-slot cylinder sensor with PNP switching outputs. It provides two normally open outputs for detecting piston position in pneumatic cylinders. The sensor operates from 10…30 V DC and supports a 6000 Hz switching frequency. Its 25 × 5 × 6.5 mm body is designed for flush mounting in T-slot cylinders. A 0.3 m PUR cable with M8 connector provides the electrical connection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK5208 mounts directly into compatible T-slot cylinders. The self-locking fastening clamp allows quick installation and adjustment. The compact 25 × 5 × 6.5 mm housing fits directly into the cylinder slot. A combined slot and hex socket arrangement supports mechanical adjustment. This makes installation fast and practical.
The sensor provides two normally open PNP switching outputs. These outputs can monitor two piston positions from the same sensor body. The switching frequency reaches 6000 Hz. The output stage supports up to 100 mA permanent current. Short-circuit and overload protection improve operational reliability.
MK5208 operates from 10…30 V DC. Reverse-polarity protection is provided. The sensor has IP65 and IP67 protection ratings. Its ambient operating temperature is -25…85 °C. The 0.3 m PUR cable and M8 connector provide a compact industrial connection.
T-slot cylinder sensor
Dual-channel sensing
PNP electrical design
Two normally open outputs
10…30 V DC
6000 Hz switching frequency
100 mA output current
2.5 V maximum voltage drop
Short-circuit protection
Overload protection
2 mT magnetic sensitivity
10 m/s travel speed
25 × 5 × 6.5 mm dimensions
0.3 m PUR cable
M8 connector
IP65/IP67 protection
Yellow LED
Stainless-steel fastening clamp
Flush mountable
M8 × 1 connection
Pneumatic cylinder position sensing
T-slot cylinders
Industrial automation
Pneumatic automation
Machine tools
Packaging machinery
Material handling
Pick-and-place systems
Factory automation
Cylinder end-position detection
MK5208 detects the magnetic field generated by the cylinder piston magnet. Its 2 mT magnetic sensitivity supports reliable piston-position detection. The high switching frequency supports fast pneumatic movements. Low hysteresis helps improve position repeatability. This makes the sensor suitable for high-speed automation.
The 0.3 m PUR cable provides a flexible machine connection. The M8 connector simplifies connection to compatible automation wiring. The fastening clamp supports quick T-slot installation. A rubber memory stop and cable clip are supplied. This helps maintain a neat and stable cylinder-sensor installation.
| Specification | MK5208 |
|---|---|
| Product type | T-slot cylinder sensor |
| Manufacturer | ifm electronic |
| Model | MK5208 |
| Technical code | MKT3020BBPKG/A/0,3M/ZH/ASR/2X |
| Sensor principle | Magnetic |
| Magnetic cell | AMR |
| Electrical design | PNP |
| Output channels | 2 |
| Output function | 2 × normally open |
| Supply voltage | 10…30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 30 ms |
| Voltage drop | 2.5 V |
| Permanent output current | 100 mA |
| Switching frequency | 6000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Magnetic sensitivity | 2 mT |
| Travel speed | >10 m/s |
| Hysteresis | <1 mm |
| Repeatability | <0.2 mm |
| Ambient temperature | -25…85 °C |
| Protection rating | IP65/IP67 |
| Dimensions | 25 × 5 × 6.5 mm |
| Mounting | Flush mount |
| Cylinder type | T-slot |
| Cable | 0.3 m PUR |
| Connector | M8 |
| LED | Yellow switching-status LED |
| Housing material | PA |
| Clamp material | Stainless steel |
| Weight | 20.7 g |
| Supplied accessories | Rubber memory stop + cable clip |
| Pack quantity | 1 |
