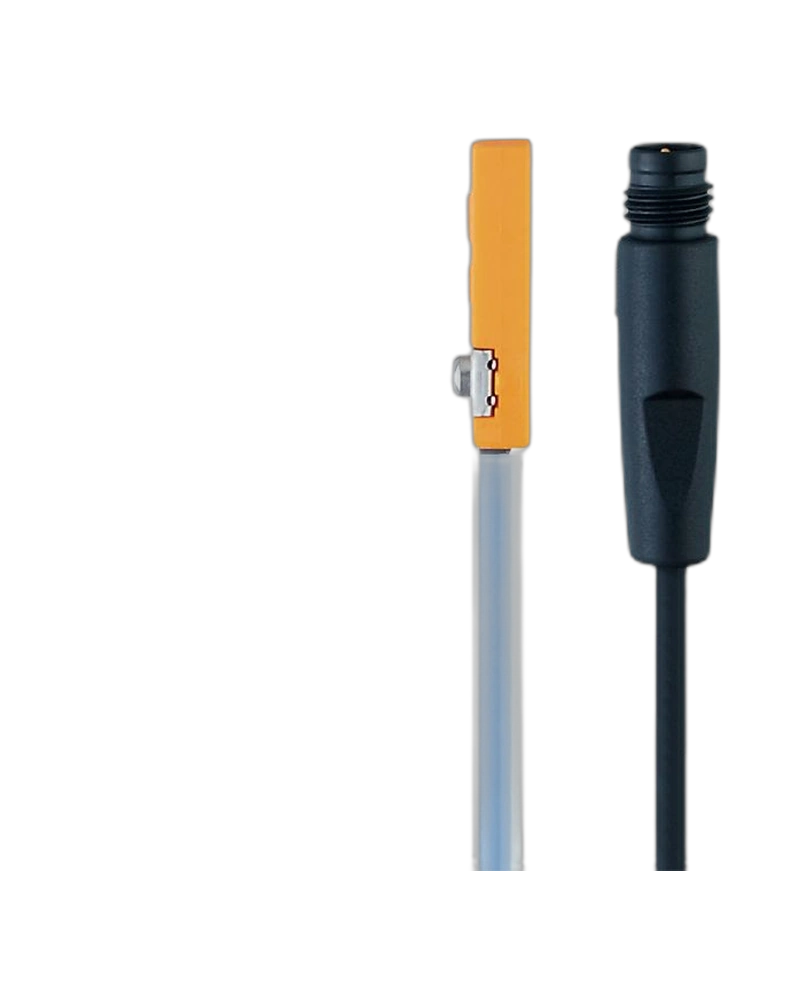

The IFM MK5192 T-slot cylinder sensor is designed for reliable piston-position detection in industrial pneumatic automation. Its self-locking mounting concept allows quick installation and easy adjustment, while the 0.3 m PUR cable provides compact and dependable machine wiring. The sensor offers clear switching-status indication and is designed for reliable operation in demanding environments. Its compact construction makes it suitable for assembly, packaging, material handling and automated production systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5192 provides contactless magnetic detection of piston position in T-slot cylinders. This eliminates direct mechanical contact with moving cylinder components. The compact design supports efficient installation inside the cylinder slot. The sensor can provide reliable feedback during repeated actuator movement. It is suitable for automated pneumatic systems.
The self-locking fixture allows fast installation and adjustment. The sensor can be fitted from the top of the slot for convenient machine assembly. Its fixing arrangement helps maintain the selected switching position. The compact dimensions support space-efficient installation. This simplifies commissioning and maintenance.
The 0.3 m PUR cable provides a practical connection for compact installations. The cable is designed to provide good strain relief at the sensor outlet. Proper cable routing helps protect the connection from mechanical stress. The M8 A-coded connection provides a compact interface for compatible wiring. This supports dependable industrial installation.
The MK5192 provides clear switching-status indication through its yellow LED. It is designed for reliable operation across a broad industrial temperature range. Its IP65 and IP67 protection supports use in demanding environments. High switching capability supports rapid cylinder movement. The sensor is suitable for modern industrial automation systems.
T-slot cylinder sensor
MKT3028BBPKG/G configuration
0.3 m PUR cable
M8 A-coded connection
Self-locking fixture
Top-down installation
Yellow switching-status LED
25 x 5 x 6.5 mm dimensions
High switching frequency
IP65 and IP67 protection
Compact mounting
Good cable strain relief
Pneumatic cylinder monitoring
Assembly automation
Packaging machines
Material handling
Robotic actuator monitoring
Conveyor systems
Machine tools
Pick-and-place equipment
Production-line automation
Factory automation
| Specification | Details |
|---|---|
| Product Code | MK5192 |
| Model | MKT3028BBPKG/G/0.3M/ZH/AS |
| Product Type | T-slot cylinder sensor |
| Brand | IFM |
| Cylinder Type | T-slot cylinders |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 10,000 Hz |
| Permanent Current Rating | 100 mA |
| Max. Voltage Drop | 2.5 V |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 25 x 5 x 6.5 mm |
| Cable | 0.3 m PUR |
| Connector | M8, A-coded, 3 contacts |
| Ambient Temperature | -25...85 °C |
| Protection Rating | IP65 / IP67 |
