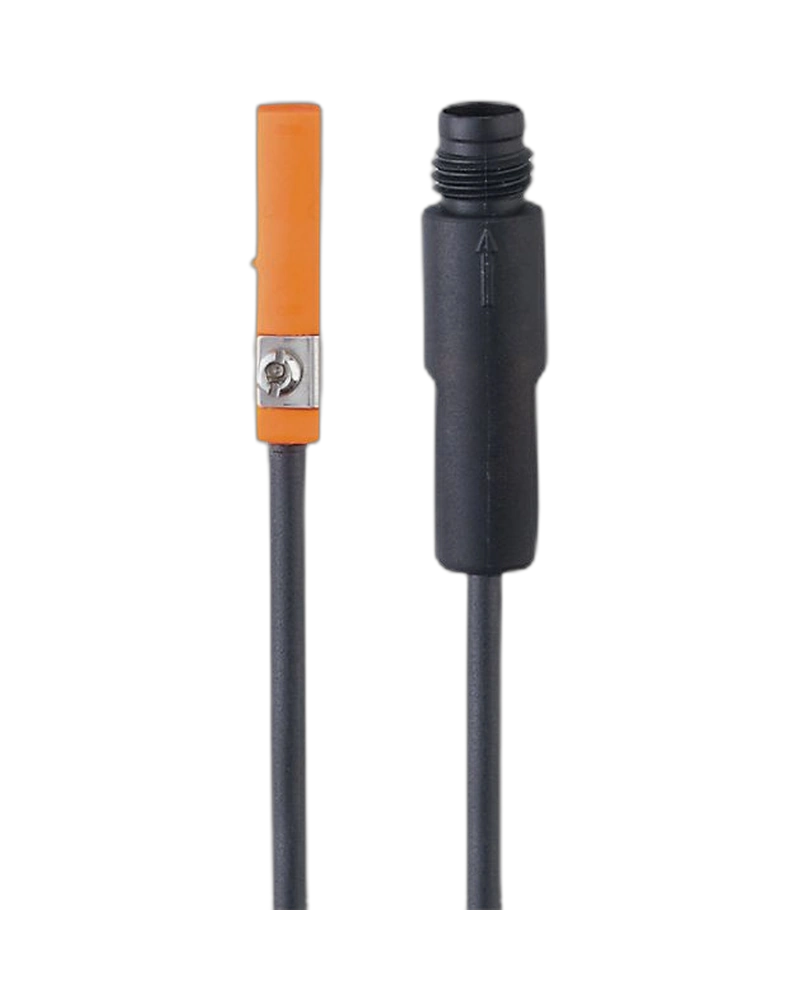

The IFM MK5138 T-slot cylinder sensor provides dependable magnetic position detection for compatible pneumatic cylinders. Its compact MKT3020 design supports efficient installation in T-slots while the 0.3 m PUR cable provides practical connection for compact automation equipment. The sensor is designed for repeated cylinder movements and provides clear switching-status indication. Its robust construction, compact dimensions and reliable switching make it suitable for industrial automation and machine-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5138 detects piston position using contactless magnetic sensing. It provides switching feedback without mechanical contact with the moving piston. This reduces mechanical wear and supports consistent operation over repeated cycles. The compact housing fits efficiently within suitable cylinder slots. It is suitable for automated pneumatic machinery.
The sensor is designed for simple mounting inside compatible T-slots. Its fixing arrangement supports quick adjustment to the required switching position. Top-down installation can reduce machine assembly time. The secure fixture helps prevent unwanted movement during operation. This provides practical installation for machine builders and maintenance teams.
The 0.3 m cable is suitable for compact machine layouts where the control connection is located nearby. The moulded cable construction supports reliable strain relief. The connector arrangement is suitable for compatible industrial sensor wiring. Cable routing should be arranged to avoid excessive mechanical stress. This supports dependable long-term machine operation.
The MK5138 can be used in automated assembly, handling and packaging machinery. It provides cylinder-position feedback to compatible control systems. The compact design helps reduce installation requirements around actuators. Its industrial protection supports demanding operating environments. It is a practical choice for reliable cylinder monitoring.
T-slot cylinder sensor
MKT3020 series
0.3 m cable
PUR cable configuration
Compact 25 x 5 x 6.5 mm design
Contactless magnetic sensing
Quick T-slot installation
Yellow switching-status LED
Flush mounting
High switching capability
Industrial protection
Suitable for automation systems
Pneumatic cylinder monitoring
Assembly equipment
Packaging machines
Material handling
Robotic systems
Conveyor equipment
Machine tools
Automatic production lines
Pick-and-place equipment
Factory automation
| Specification | Details |
|---|---|
| Product Code | MK5138 |
| Model | MKT3020BBPKG/A/0,3M/ZH/AS |
| Product Type | T-slot cylinder sensor |
| Brand | IFM |
| Cylinder Type | T-slot cylinders |
| Electrical Design | Model-specific |
| Output Function | Model-specific |
| Operating Voltage | Model-specific |
| Current Consumption | Model-specific |
| Protection Class | Model-specific |
| Reverse Polarity Protection | Model-specific |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Switching Frequency | Model-specific |
| Cable Length | 0.3 m |
| Cable Type | PUR |
| Connector | M8, A-coded, 3 contacts |
| Mounting | Flush mountable |
| Dimensions | 25 x 5 x 6.5 mm |
| Housing Material | PA |
| Fixing Material | Stainless steel |
| Status Indication | Yellow LED |
| Ambient Temperature | -25...85 °C |
| Protection Rating | IP65 / IP67 |
| Pack Quantity | 1 piece |
