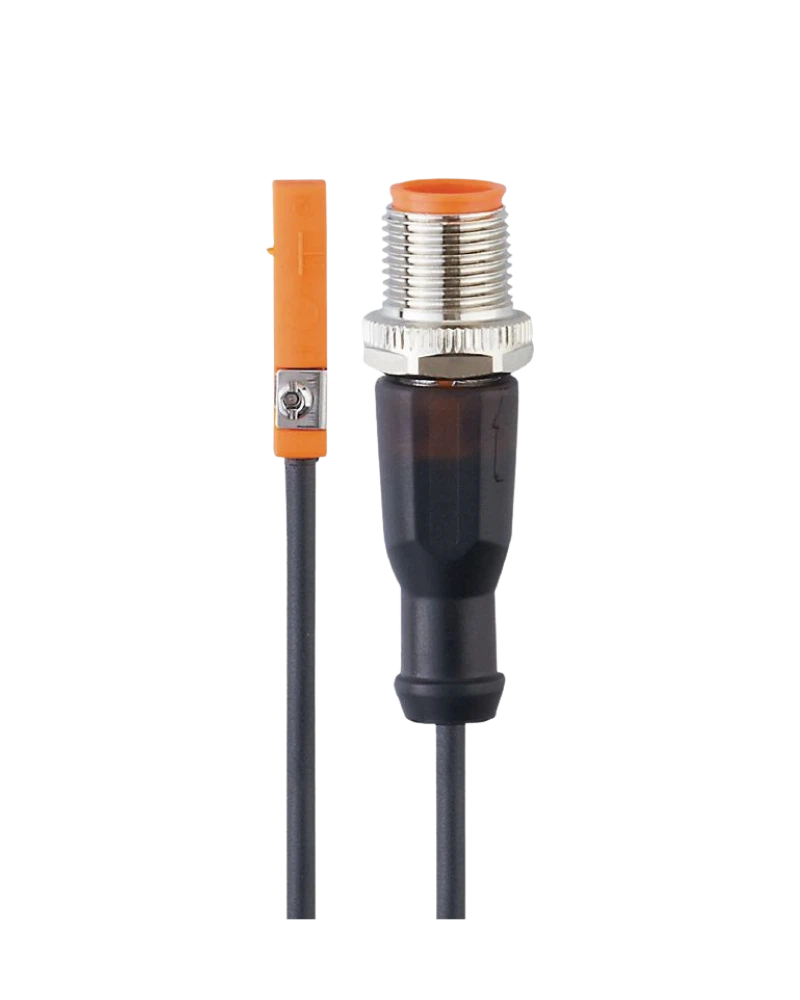

The IFM MK5132 T-slot cylinder sensor provides reliable magnetic position detection for T-slot pneumatic cylinders. Its self-locking mounting system allows fast top-down installation and easy adjustment, reducing assembly time in automated machinery. The 2 m cable gives additional wiring flexibility for larger machine layouts. High switching frequency, clear switching-status indication and robust industrial protection make the sensor suitable for repetitive cylinder monitoring in factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5132 is designed for contactless detection of piston positions in T-slot cylinders. Magnetic sensing allows the sensor to detect piston movement without direct mechanical contact. This helps reduce wear and provides dependable feedback during repeated actuator cycles. Its compact construction supports installation within the cylinder slot. It is suitable for a wide range of automated motion applications.
The self-locking fixture simplifies installation and adjustment inside the cylinder slot. The sensor can be inserted from above without complicated mounting procedures. Its fixing mechanism helps maintain the selected position during machine operation. The compact body fits efficiently into T-slot cylinder assemblies. This makes installation and maintenance more convenient.
The MK5132 supports high switching frequency for fast cylinder movements. Its PNP normally open output can interface with compatible automation controllers. The visible LED provides useful feedback during setup and troubleshooting. Protective functions help support reliable electrical operation. These features make the sensor suitable for high-cycle industrial machinery.
The 2 m cable supports machine layouts where the cylinder is positioned farther from the control cabinet. The sensor can be used in packaging, assembly and material-handling equipment. Its industrial housing is designed for demanding operating conditions. The compact construction helps minimize installation space. It provides practical and reliable cylinder-position feedback.
T-slot cylinder sensor
2 m connection cable
PNP normally open output
Self-locking mounting fixture
Top-down slot installation
High switching frequency
Clear yellow switching-status LED
Compact housing
Flush mountable
Short-circuit protection
Overload protection
Industrial IP protection
Pneumatic automation
Assembly machines
Packaging equipment
Material handling
Conveyor systems
Robotic automation
Pick-and-place machines
Machine tools
Production-line equipment
PLC-controlled machinery
| Specification | Details |
|---|---|
| Product Code | MK5132 |
| Model | MKT3028BBPKG/G/2,0M/ZH/US |
| Product Type | T-slot cylinder sensor |
| Brand | IFM |
| Cylinder Type | T-slot cylinders |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 10,000 Hz |
| Permanent Current Rating | 100 mA |
| Max. Voltage Drop | 2.5 V |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 25 x 5 x 6.5 mm |
| Cable Length | 2.0 m |
| Indication | Yellow LED |
| Protection Rating | IP65 / IP67 |
