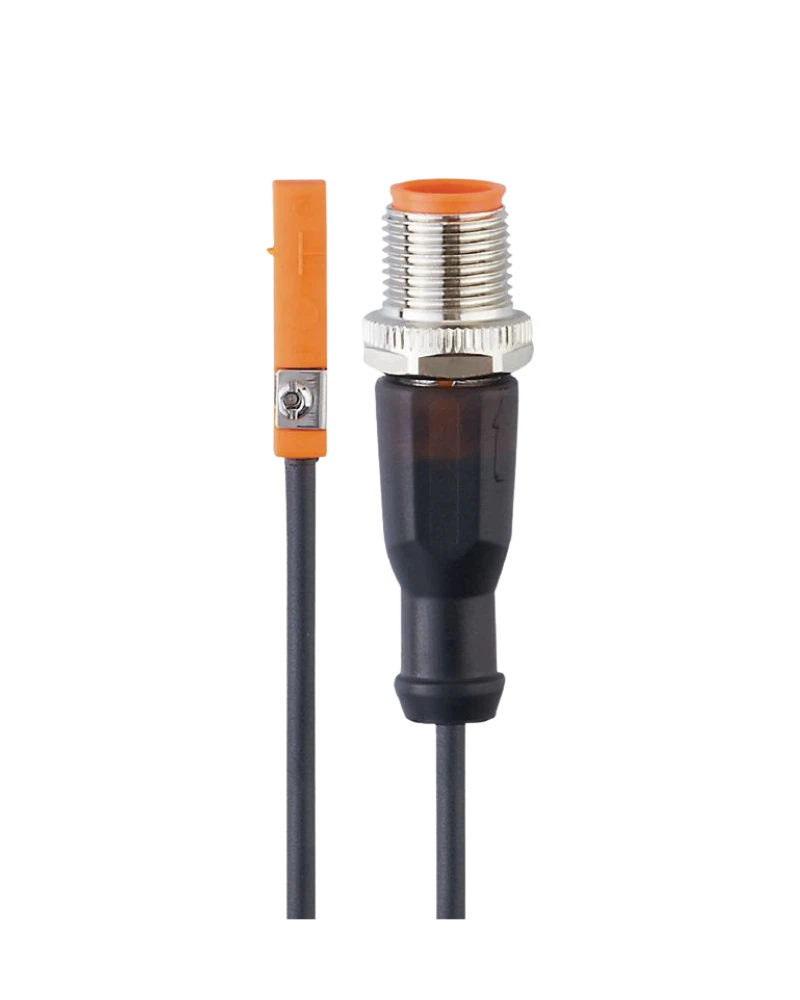

The IFM MK5131 T-slot cylinder sensor is designed for dependable piston-position detection in pneumatic automation systems. Its self-locking fixture enables simple installation directly into T-slots, while the compact 25 x 5 x 6.5 mm construction helps save installation space. The 1 m cable provides practical wiring flexibility for industrial machines. High switching frequency, clear LED indication and robust protection make the sensor suitable for repetitive cylinder monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5131 uses non-contact magnetic sensing to monitor piston position inside T-slot cylinders. It provides switching feedback without mechanical contact with the moving cylinder components. This reduces wear and supports reliable operation over repeated machine cycles. The compact sensor design allows integration into small cylinder assemblies. It is well suited to automated pneumatic applications.
The sensor incorporates a self-locking fixture for quick mounting and adjustment. Top-down installation makes it convenient to fit into the cylinder slot during machine assembly. The sensor can be positioned accurately to match the required switching point. Its secure fixing arrangement helps maintain the selected position. This simplifies both initial installation and service work.
The PNP normally open output can be connected to compatible PLC and control inputs. A yellow LED gives clear visual feedback of the switching condition. High switching frequency supports rapid cylinder movements and high production cycles. Protective functions help reduce the effects of electrical faults. The sensor therefore supports dependable machine operation.
The 1 m cable provides useful connection flexibility for factory automation equipment. The sensor is suitable for assembly machines, packaging equipment and handling systems. Its compact design keeps installation requirements low. Industrial protection helps support operation in demanding environments. The MK5131 provides reliable cylinder-position feedback for automated control.
T-slot cylinder sensor
1 m cable configuration
PNP normally open output
Self-locking mounting fixture
Easy top-down slot installation
High switching frequency
Yellow switching-status LED
Compact 25 x 5 x 6.5 mm housing
Flush mountable
Short-circuit protection
Overload protection
Industrial protection rating
Pneumatic cylinder sensing
Assembly automation
Packaging machinery
Material handling systems
Robotic actuator control
Conveyor systems
Machine tools
Automatic production equipment
Pick-and-place machinery
Factory automation
| Specification | Details |
|---|---|
| Product Code | MK5131 |
| Model | MKT3028BBPKG/G/1,0M/ZH/US |
| Product Type | T-slot cylinder sensor |
| Brand | IFM |
| Cylinder Type | T-slot cylinders |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 10,000 Hz |
| Permanent Current Rating | 100 mA |
| Max. Voltage Drop | 2.5 V |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 25 x 5 x 6.5 mm |
| Cable Length | 1.0 m |
| Indication | Yellow LED |
| Protection Rating | IP65 / IP67 |
