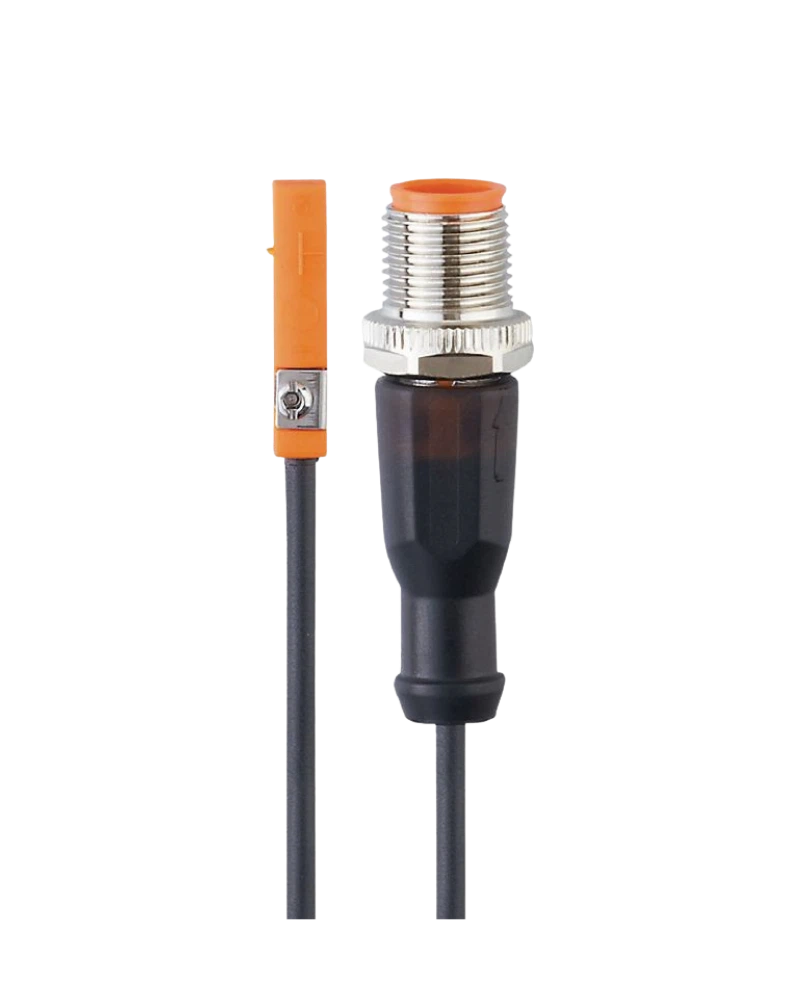

The IFM MK5130 T-slot cylinder sensor is designed for precise and dependable detection of piston positions in pneumatic cylinders. It combines a compact housing with a self-locking fixture for quick top-down installation and easy adjustment. The 0.5 m cable provides convenient connection for compact machine layouts, while the high switching frequency supports fast actuator cycles. Its clear LED indication and industrial protection make it suitable for automated machinery and factory applications
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5130 provides non-contact magnetic detection of cylinder piston positions. It is designed specifically for T-slot cylinders used in pneumatic automation. The compact sensing body allows efficient installation inside the cylinder slot. Contactless operation reduces mechanical wear associated with conventional mechanical switches. This supports dependable position feedback during repeated machine cycles.
The integrated self-locking fixture allows quick installation and adjustment. The sensor can be inserted from the top of the T-slot, reducing assembly effort. The fixing mechanism helps keep the sensor securely positioned during operation. The compact dimensions make it suitable for restricted installation spaces. This design supports efficient machine construction and maintenance.
The MK5130 supports very high switching frequency for rapid cylinder movement. Its PNP normally open output provides a standard switching interface for compatible controllers. The visible yellow LED helps confirm switching status during setup. Short-circuit and overload protection improve operating reliability. These characteristics make the sensor suitable for high-cycle automation systems.
The sensor is suitable for assembly, packaging and material-handling equipment. Its protected housing supports operation in industrial environments. The moulded cable provides effective strain relief and simplifies wiring. The sensor can provide reliable position feedback to PLC-based control systems. It is a practical solution for automated cylinder monitoring.
T-slot cylinder sensor
PNP normally open output
0.5 m cable configuration
Self-locking fixture
Easy top-down installation
High switching frequency
Yellow LED switching indication
25 x 5 x 6.5 mm dimensions
Flush-mountable design
Short-circuit protection
Overload protection
IP65 and IP67 protection
Pneumatic cylinder monitoring
Assembly automation
Packaging machines
Material handling equipment
Robotic systems
Conveyor automation
Pick-and-place equipment
Machine tools
Production-line automation
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | MK5130 |
| Model | MKT3028BBPKG/G/0,5M/ZH/US |
| Product Type | T-slot cylinder sensor |
| Brand | IFM |
| Cylinder Type | T-slot cylinders |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | 10,000 Hz |
| Permanent Current Rating | 100 mA |
| Max. Voltage Drop | 2.5 V |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 25 x 5 x 6.5 mm |
| Cable Length | 0.5 m |
| Indication | Yellow LED |
| Protection Rating | IP65 / IP67 |
