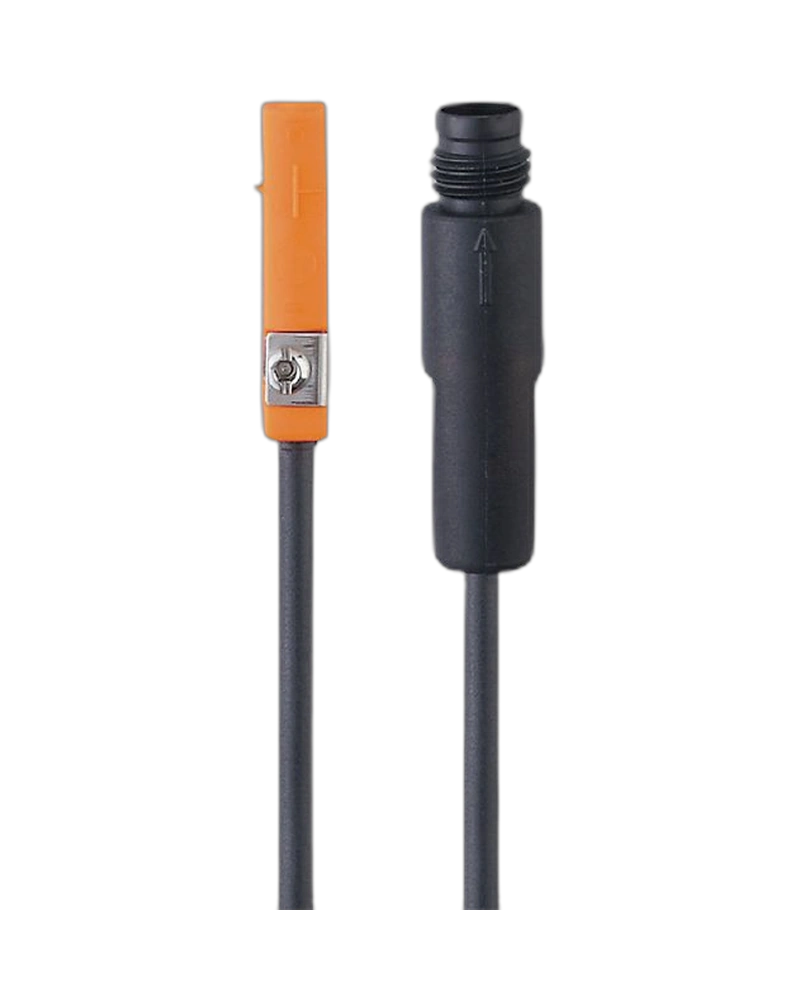

The IFM MK5129 T-slot cylinder sensor provides compact and reliable magnetic position detection for pneumatic cylinders. Its 0.1 m cable configuration is suitable for installations where the sensor is located close to a connection point or junction system. The self-locking mounting design supports quick positioning inside T-slots, while the visible switching-status indication simplifies commissioning. Its high switching frequency and industrial protection make it suitable for fast and repetitive automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5129 is designed to detect the magnetic position of a piston inside T-slot cylinders. Its contactless sensing principle provides reliable switching without mechanical contact with the moving piston. The compact sensor housing supports installation in limited machine spaces. It is suitable for repeated cylinder movements in automated equipment. The design helps simplify cylinder-position monitoring.
The self-locking fixture allows the sensor to be positioned quickly inside the cylinder slot. Top-down installation makes fitting convenient during machine assembly and maintenance. The sensor can be adjusted to the required switching position before final tightening. Its secure mounting arrangement helps prevent unwanted movement during operation. This reduces installation time for automation technicians.
A visible LED provides immediate indication of the switching condition. This helps technicians verify sensor operation during commissioning and troubleshooting. The PNP normally open output supports connection to suitable industrial control systems. High switching frequency enables detection during fast actuator cycles. Built-in protection functions support reliable machine operation.
The MK5129 can be used in pneumatic automation, assembly machinery and material handling systems. Its short cable length is practical for compact machine installations. The sensor can provide cylinder-end-position information to PLCs and control systems. Its industrial housing supports demanding factory environments. It is a practical choice for space-efficient cylinder monitoring.
T-slot cylinder sensor
0.1 m cable configuration
PNP normally open output
Self-locking fixture
Top-down slot installation
Compact sensor housing
Yellow switching-status indication
High switching frequency
Flush-mountable design
Short-circuit protection
Overload protection
Industrial IP protection
Pneumatic cylinder position sensing
Compact automation machines
Assembly equipment
Packaging systems
Material handling machinery
Robotic actuator monitoring
Machine tools
Production automation
Conveyor systems
PLC-controlled equipment
| Specification | Details |
|---|---|
| Product Code | MK5129 |
| Model | MKT3028BBPKG/G/0,1M/ZH/AS |
| Product Type | T-slot cylinder sensor |
| Brand | IFM |
| Cylinder Type | T-slot cylinders |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 10,000 Hz |
| Permanent Current Rating | 100 mA |
| Max. Voltage Drop | 2.5 V |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 25 x 5 x 6.5 mm |
| Mounting | Flush mountable |
| Cable Length | 0.1 m |
| Indication | Yellow LED, switching status |
| Protection Rating | IP65 / IP67 |
