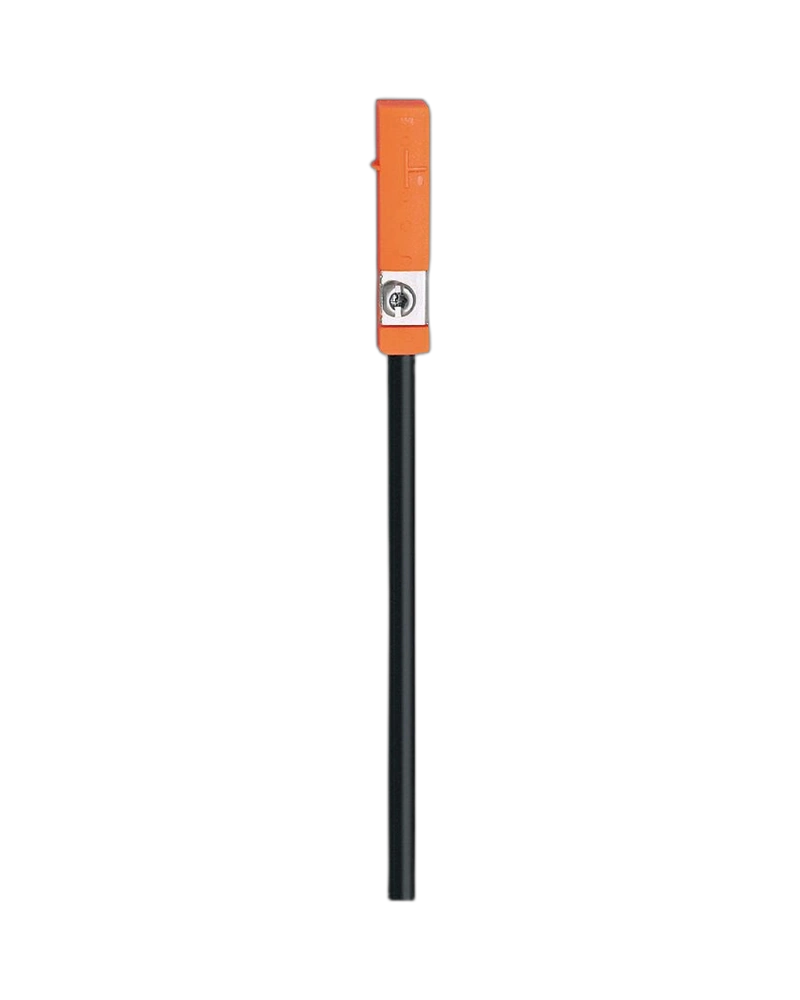

The IFM MK5128 is a T-slot cylinder sensor designed for dependable magnetic position detection on pneumatic cylinders. Its compact construction allows installation directly inside the T-slot while maintaining a secure position during repeated cylinder movement. The 6 m PVC cable provides extended connection distance for machine layouts where sensors are installed away from control cabinets. Its robust industrial construction and clear switching indication make it suitable for demanding automated production environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5128 detects piston position without physical contact, making it suitable for repetitive pneumatic cylinder applications. The sensor is designed to fit T-slot cylinders and provide reliable switching information to machine controls. Its compact body allows installation where conventional sensors may require additional mounting space. The non-contact sensing principle minimizes mechanical wear. This supports long-term operation in automated machinery.
This version uses a 6 m PVC cable, making it useful for machines with longer distances between cylinders and control equipment. The cable configuration reduces the need for additional extension cables in many installations. The cable outlet is designed for dependable strain relief. Correct routing should be maintained to protect the cable from excessive mechanical stress. This makes the sensor practical for larger automated machine assemblies.
The sensor provides a high switching frequency suitable for rapid cylinder movements. A clearly visible LED indicates the switching status during commissioning and troubleshooting. Its PNP normally open output can be integrated into compatible control circuits. Protection functions help improve reliability during industrial operation. The sensor is designed for consistent performance during repeated actuator cycles.
The MK5128 is suitable for pneumatic automation systems requiring reliable cylinder-position feedback. It can be used in assembly, material handling, packaging and machine-building applications. Its IP-rated housing supports use in demanding industrial surroundings. The compact T-slot installation saves mounting space. It provides a practical sensing solution for automated motion monitoring.
T-slot cylinder sensor
PNP normally open output
6 m PVC connection cable
Self-locking mounting concept
Easy top-down T-slot installation
Compact 25 x 5 x 6.5 mm construction
Yellow switching-status LED
High switching frequency
Flush-mountable design
IP65, IP67 and IP69K protection for this variant
Good cable strain relief
Suitable for industrial automation
Pneumatic cylinder monitoring
Automated assembly equipment
Packaging machinery
Material handling systems
Machine automation
Robotic actuator monitoring
Conveyor systems
Production-line equipment
Pick-and-place machines
Industrial motion control
| Specification | Details |
|---|---|
| Product Code | MK5128 |
| Model | MKT3028BBPKG/G/6,0M/-H |
| Product Type | T-slot cylinder sensor |
| Brand | IFM |
| Cylinder Type | T-slot cylinders |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 10,000 Hz |
| Permanent Current Rating | 100 mA |
| Max. Voltage Drop | 2.5 V |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 25 x 5 x 6.5 mm |
| Mounting | Flush mountable |
| Cable | 6 m PVC |
| Cable Conductors | 3 x 0.14 mm² |
| Protection Rating | IP65 / IP67 / IP69K |
