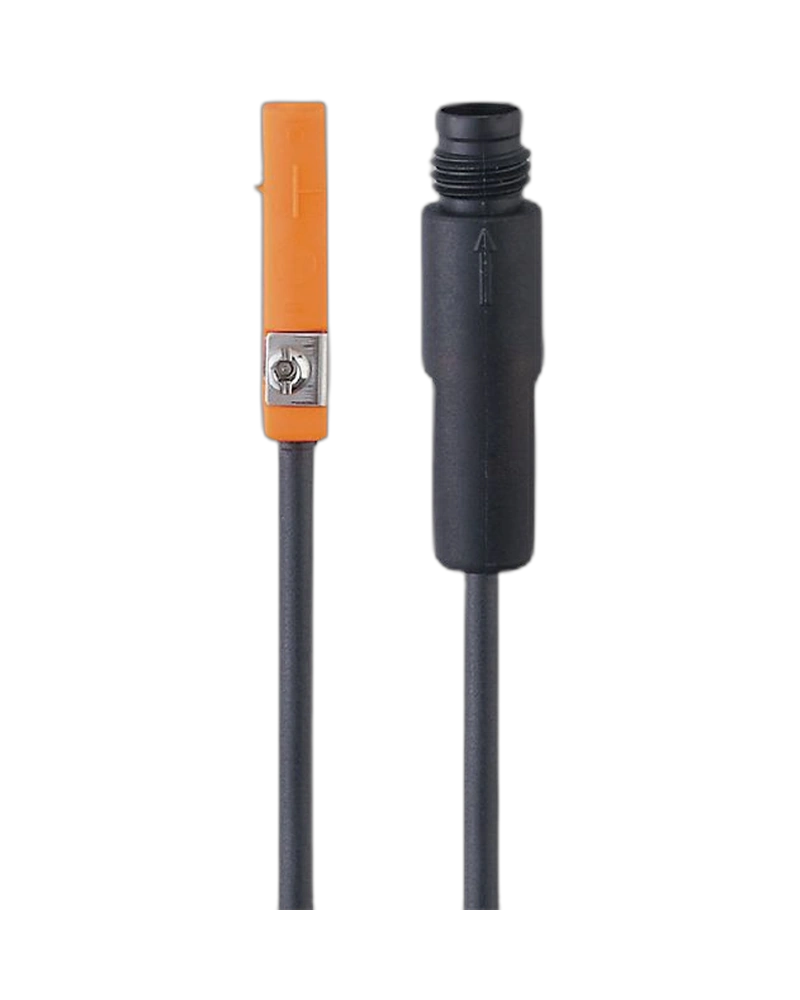

The IFM MK5127 T-slot cylinder sensor is designed for reliable position detection on pneumatic and hydraulic cylinders with T-slots. Its self-locking mounting concept allows quick installation and easy adjustment directly from the top of the cylinder slot. The compact sensor provides clear switching-status indication and dependable operation in demanding industrial environments. The 0.3 m cable configuration supports convenient machine wiring and efficient integration into automated motion-control systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5127 is a compact cylinder sensor designed specifically for T-slot cylinders. Its sensing principle detects the magnetic field of the cylinder piston without mechanical contact. The sensor can be installed directly into the cylinder slot from above, reducing installation effort. Its compact 25 x 5 x 6.5 mm housing fits efficiently into space-limited machine designs. This makes it suitable for modern pneumatic automation equipment.
The integrated self-locking fixture enables fast mounting and straightforward positioning. The sensor can be inserted into the T-slot without requiring complicated disassembly of the cylinder. Its fixing arrangement helps maintain the selected sensor position during machine operation. The cable outlet is designed to provide good strain relief and support reliable cable routing. This simplifies commissioning and maintenance in automated production systems.
The MK5127 provides clear visual indication of its switching status through an LED. Its high switching frequency allows reliable detection during rapid cylinder movements. The sensor is designed for stable operation with commonly used industrial control systems. Protection against reverse polarity, short circuit and overload improves operational reliability. These features make the sensor suitable for repetitive industrial positioning tasks.
The sensor is well suited for monitoring end positions and intermediate positions of pneumatic cylinders. It can be integrated into PLC-controlled machines, assembly equipment and automated handling systems. Its robust housing and high ingress protection support use in industrial environments. The compact design helps reduce installation space requirements inside machine assemblies. It is an effective solution for dependable cylinder-position feedback.
T-slot cylinder sensor for pneumatic automation
Self-locking fixture for quick installation
Easy top-down installation into the cylinder slot
Compact 25 x 5 x 6.5 mm sensor housing
Clearly visible yellow switching-status LED
High switching frequency for fast cylinder movements
PNP normally open switching output
Moulded 0.3 m cable configuration
Good cable strain relief
Flush-mountable sensor design
IP65 and IP67 protection
Suitable for industrial automation systems
Pneumatic cylinder position monitoring
Hydraulic cylinder position feedback
Automated assembly machines
Material handling equipment
Packaging and filling machinery
Robotic actuator monitoring
Machine tool automation
Pick-and-place systems
Conveyor automation
Factory automation control systems
| Specification | Details |
|---|---|
| Product Code | MK5127 |
| Model | MKT3028BBPKG/G/0,3M/ZH/AS |
| Product Type | T-slot cylinder sensor |
| Brand | IFM |
| Sensor Type | Cylinder sensor |
| Cylinder Type | T-slot cylinders |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Switching Frequency | Up to 10,000 Hz |
| Permanent Current Rating | 100 mA |
| Max. Voltage Drop | 2.5 V |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 25 x 5 x 6.5 mm |
| Mounting | Flush mountable, self-locking fixture |
| Connection | 0.3 m moulded cable, model-specific connector configuration |
| Protection Rating | IP65 / IP67 |
