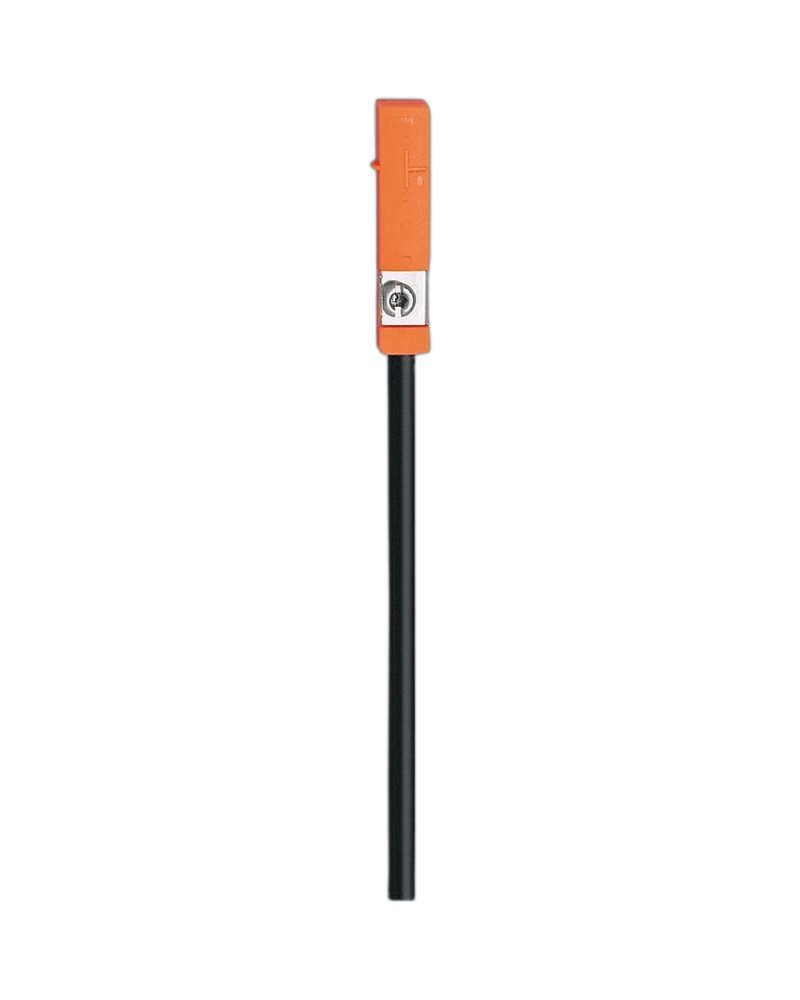

The IFM MK5124 T-slot cylinder sensor is designed for magnetic piston position monitoring on pneumatic cylinders with a very long 10 m cable configuration. Its T-slot mounting design provides compact installation directly on compatible cylinders, while the extended cable supports remote connection to control cabinets and junction points. The sensor is suitable for large industrial machines, production lines, packaging systems and material handling equipment where long-distance sensor wiring and reliable cylinder feedback are required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5124 is particularly useful where the cylinder is located at a considerable distance from the machine control system. Its 10 m cable provides substantial connection reach from the sensor to the control point. This can reduce the requirement for additional cable extensions. The configuration is useful in large machine structures. It supports flexible installation of pneumatic actuators.
The sensor detects the magnetic piston position inside a compatible T-slot cylinder. Contactless sensing supports repeated actuator movement without mechanical contact. The switching signal can be used for PLC inputs and automated sequence control. This allows machine controllers to determine actuator position. The sensing concept is suitable for industrial pneumatic automation.
The compact sensor body can be mounted directly into the cylinder slot. The long cable can be routed through machine frames, cable channels or control-system pathways. This makes the MK5124 suitable for large production equipment. Its switching indication assists commissioning and maintenance. The sensor provides a practical solution for extended-distance cylinder monitoring.
T-slot cylinder sensor
10 m cable configuration
Magnetic piston detection
Compact sensor body
Extended wiring capability
Direct cylinder mounting
Reliable switching feedback
Suitable for large machines
Industrial automation compatible
Practical remote connection
Large production machines
Packaging lines
Material handling systems
Assembly automation
Pneumatic actuator monitoring
Factory automation
Remote control cabinet connection
Machine sequencing
Production equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | MK5124 |
| Model | MKT3028BBPKG/G/10M/ZH |
| Product Type | T-slot cylinder sensor |
| Operating Principle | Magnetic/GMR family |
| Cylinder Type | T-slot |
| Electrical Design | Model-specific – verify datasheet |
| Output Function | Model-specific – verify datasheet |
| Operating Voltage | 10…30 V DC family value |
| Current Consumption | <10 mA family value |
| Protection Class | III family value |
| Reverse Polarity Protection | Yes, family value |
| Power-on Delay | 30 ms family value |
| Response Sensitivity | 2.8 mT family value |
| Travel Speed | >10 m/s family value |
| Switching Frequency | Model-specific |
| Output Current | Up to 100 mA depending on variant |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Cable Length | 10 m |
| Cable Configuration | Integrated cable |
| Mounting | T-slot |
| Housing | PA family design |
| Fastening Clamp | Stainless steel family design |
| Display | Switching-status LED |
| Brand | IFM |
