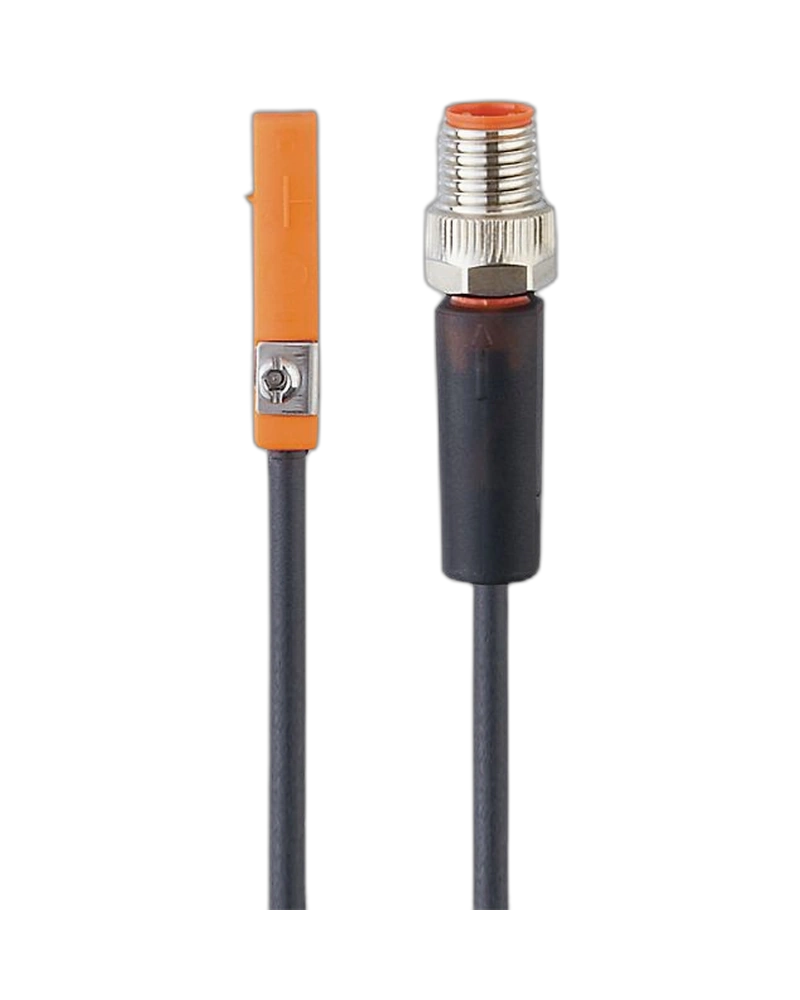

The IFM MK5122 T-slot cylinder sensor is designed for dependable magnetic piston position detection with an extended 1.0 m cable configuration. Its compact T-slot construction supports direct installation into compatible pneumatic cylinders, while the PNP normally open switching output enables integration with industrial controllers. The sensor is suitable for high-speed repetitive movements and machine sequencing. It can be used in packaging, assembly, handling and production automation applications where reliable cylinder feedback is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5122 uses magnetic sensing to detect piston position inside compatible T-slot cylinders. Its contactless detection principle supports repeated cylinder operation without mechanical sensing contact. The sensor can provide feedback for actuator extension and retraction positions. This information can be used by PLCs and controllers. The design supports reliable automated sequence control.
The 1.0 m cable provides increased wiring reach between the cylinder sensor and machine connection point. This is useful when the sensor is mounted away from a nearby junction or connector. The cable can be routed through machine structures while maintaining a compact sensor installation. It reduces the immediate need for short extension cables. This supports flexible machine wiring.
The sensor is designed for fast repetitive cylinder movements. Its family characteristics include 2.8 mT magnetic sensitivity and high switching frequency. These features support responsive piston position feedback. Short-circuit and overload protection contribute to reliable operation. The sensor is suitable for high-cycle pneumatic automation.
PNP output
Normally open switching
1.0 m cable
T-slot installation
Magnetic piston detection
2.8 mT sensitivity family value
High switching frequency
100 mA output capability
Protection functions
Compact housing
Packaging automation
Assembly machinery
Pneumatic cylinders
Material handling
Pick-and-place systems
Production equipment
Machine sequencing
Linear actuator monitoring
Factory automation
Industrial control
| Specification | Details |
|---|---|
| Product Code | MK5122 |
| Model | MKT3028BBPKG/G/1,0M/ZH/ASR |
| Product Type | T-slot cylinder sensor |
| Operating Principle | Magnetic/GMR |
| Electrical Design | PNP family design |
| Output Function | Normally open |
| Operating Voltage | 10…30 V DC family value |
| Current Consumption | <10 mA family value |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-on Delay | 30 ms family value |
| Response Sensitivity | 2.8 mT family value |
| Travel Speed | >10 m/s family value |
| Switching Frequency | Up to 10,000 Hz depending on variant |
| Output Current | 100 mA family value |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Cable Length | 1.0 m |
| Mounting | T-slot |
| Housing | PA family design |
| Fastening Clamp | Stainless steel family design |
| Display | Switching-status LED |
| Connection | Model-specific |
| Brand | IFM |
