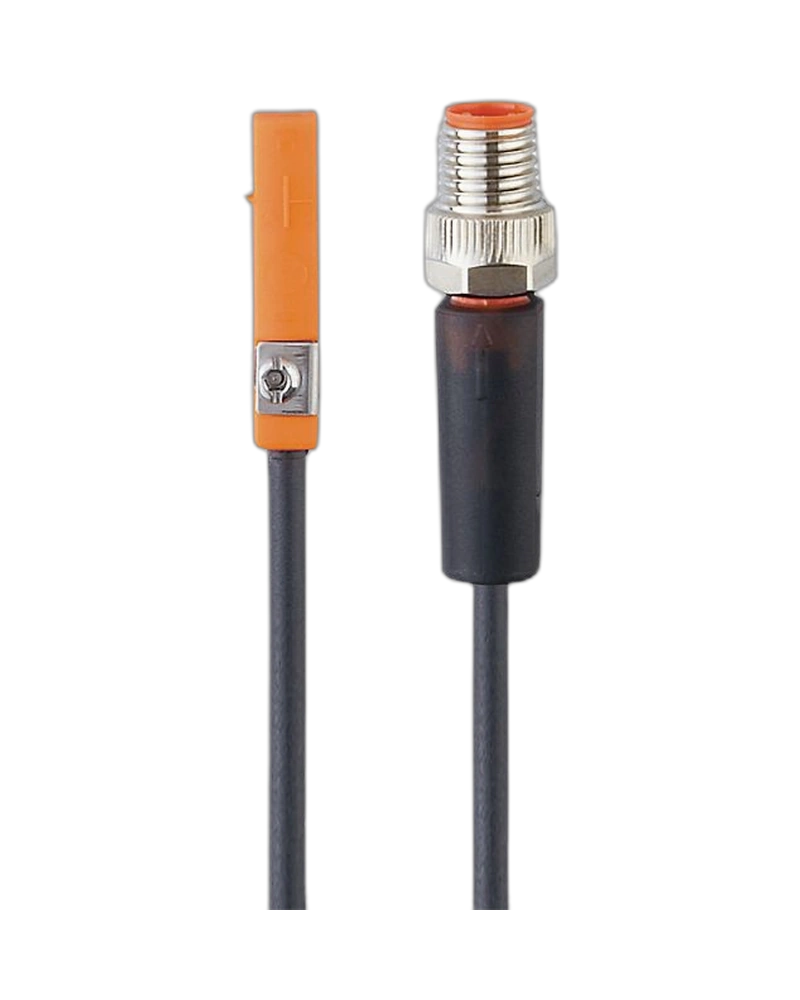

The IFM MK5121 T-slot cylinder sensor provides reliable magnetic position detection for pneumatic cylinders with a compact 0.5 m cable configuration. Its PNP normally open output, 10…30 V DC operation and 10,000 Hz switching frequency support high-speed automated movements. The sensor provides 2.8 mT magnetic sensitivity and a travel speed above 10 m/s. It is suitable for packaging, assembly, handling, machine sequencing and general industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5121 is designed for detecting the magnetic piston position in T-slot cylinders. Its 2.8 mT response sensitivity supports dependable piston detection. A travel speed above 10 m/s allows use in fast pneumatic movements. The high switching frequency supports rapid repetitive operation. This makes the sensor suitable for high-cycle automated machinery.
The sensor uses a PNP normally open output and operates from 10…30 V DC. Its switching output is rated for 100 mA and supports industrial controller integration. Short-circuit protection is provided with pulsed protection technology according to the referenced datasheet. Overload protection further supports reliable operation. This makes it suitable for automated machine control.
The MK5121 includes a 0.5 m cable configuration. This provides more wiring reach than the short 0.3 m variants while keeping the sensor compact. The cable can be routed toward nearby machine connections. The sensor can be positioned directly within a T-slot. This supports convenient installation and maintenance.
PNP output
Normally open function
0.5 m cable
10…30 V DC operation
2.8 mT sensitivity
Pneumatic cylinder monitoring
Packaging machines
Assembly systems
Material handling
Pick-and-place machines
Production automation
Machine sequencing
Linear actuator monitoring
Industrial control systems
Factory automation
| Specification | Details |
|---|---|
| Product Code | MK5121 |
| Model | MKT3028BBPKG/G/0,5M/ZH/ASR |
| Product Type | T-slot cylinder sensor |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10…30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-on Delay | 30 ms |
| Voltage Drop | 2.5 V max. |
| Output Current | 100 mA |
| Switching Frequency | 10,000 Hz |
| Short-Circuit Protection | Yes, pulsed |
| Overload Protection | Yes |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Dimensions | 25.3 x 5 x 6.5 mm |
| Mounting | T-slot |
| Housing | PA |
| Fastening Clamp | Stainless steel |
| Cable Length | 0.5 m |
| Connection | Model-specific |
| Brand | IFM |
