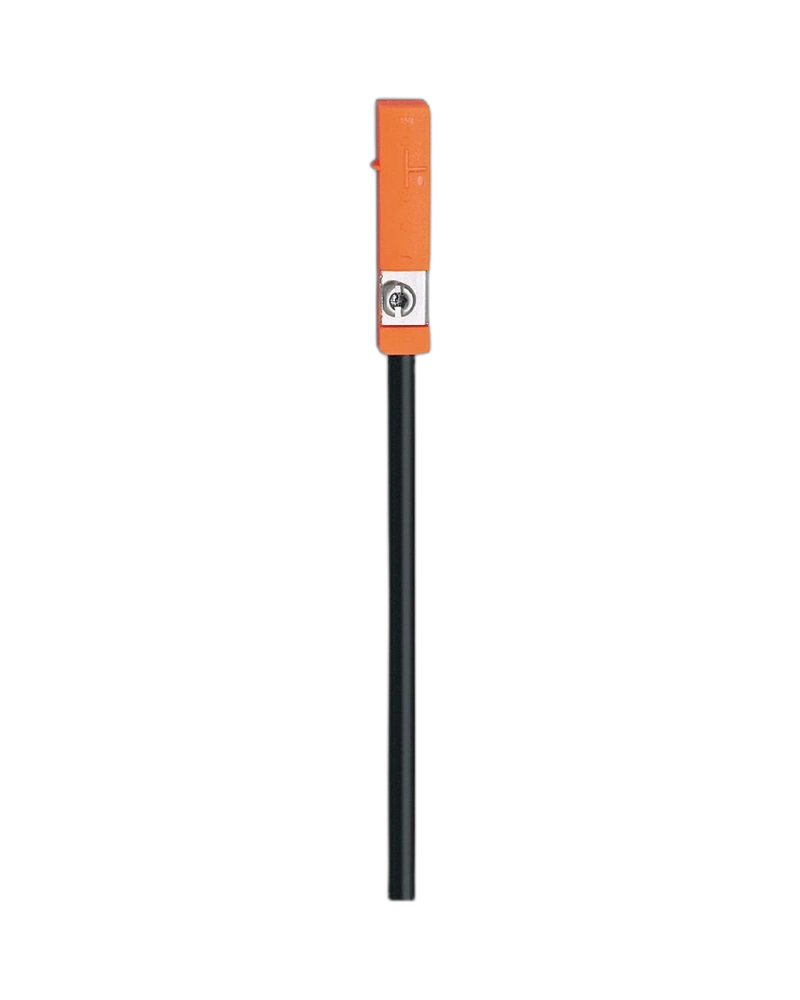

The IFM MK5118 T-slot cylinder sensor is a compact magnetic position sensor designed for pneumatic cylinder applications. Its PNP normally closed output provides a switching signal for monitoring actuator position and machine sequences. The sensor operates from 10…30 V DC and supports high-frequency switching. Its compact 25 x 5 x 6.5 mm design enables convenient T-slot installation. It is suitable for packaging, assembly, handling and industrial automation equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5118 provides a PNP normally closed switching function for applications requiring this type of control logic. The sensor detects the magnetic piston position within the cylinder. Its output changes according to the detected magnetic condition. This enables machine controllers to monitor actuator movement. It is useful for applications requiring normally closed position feedback.
The sensor operates from a 10…30 V DC supply and supports a switching frequency of 10,000 Hz. Its magnetic response sensitivity is 2.8 mT. The high-speed design supports repetitive pneumatic movements. Short-circuit and overload protection improve reliability. This makes the sensor suitable for automated production systems.
The 25 x 5 x 6.5 mm body is designed for compact T-slot installation. The sensor can be positioned along the cylinder slot to establish the required sensing point. Its fastening arrangement supports practical adjustment. The compact body helps minimize installation space. This makes it suitable for dense machine layouts.
PNP electrical design
Normally closed output
10…30 V DC
T-slot mounting
2.8 mT magnetic sensitivity
10,000 Hz switching frequency
100 mA output current
Short-circuit protection
Overload protection
Compact 25 x 5 x 6.5 mm design
Pneumatic cylinder monitoring
Safety-related machine sequencing
Packaging systems
Assembly equipment
Handling machinery
Actuator monitoring
Production automation
Machine control
Linear movement detection
Industrial automation
| Specification | Details |
|---|---|
| Product Code | MK5118 |
| Model | MKT3028BAPKG/G/ZH |
| Product Type | T-slot cylinder sensor |
| Electrical Design | PNP |
| Output Function | Normally closed |
| Operating Voltage | 10…30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-on Delay | 30 ms |
| Voltage Drop | 2.5 V max. |
| Output Current | 100 mA |
| Switching Frequency | 10,000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Dimensions | 25 x 5 x 6.5 mm |
| Mounting | T-slot |
| Housing | PA |
| Fastening Clamp | Stainless steel |
| Display | Switching-status LED |
| Connection | Model-specific |
| Brand | IFM |
