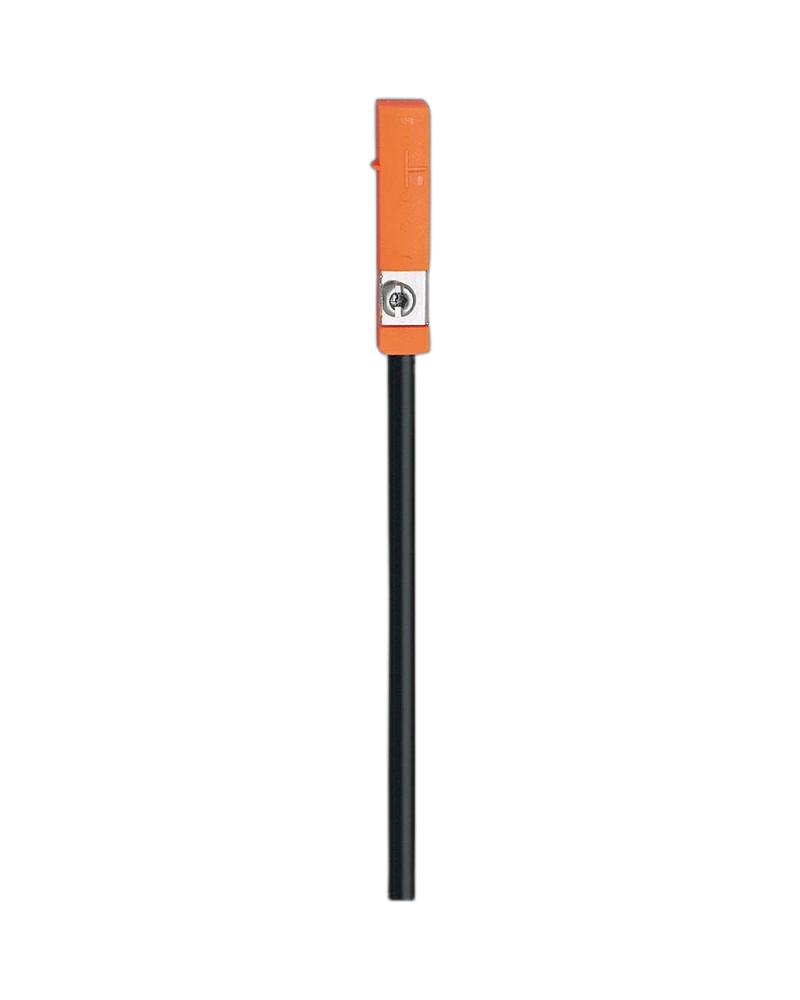

The IFM MK5117 T-slot cylinder sensor is designed for reliable magnetic piston position monitoring on pneumatic cylinders. Its 6.0 m cable configuration provides extended connection reach for machines where sensors are installed far from control cabinets or junction points. The compact T-slot design supports convenient installation and adjustment. It is suitable for packaging, assembly, material handling and industrial automation systems requiring dependable cylinder position feedback over longer wiring distances.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5117 is particularly useful where additional cable length is required between the cylinder and control system. Its 6.0 m cable provides extended reach without requiring an immediate extension cable. This can simplify wiring in larger machine structures. The cable can be routed toward a remote control cabinet or junction box. This makes it useful for distributed automation installations.
The sensor detects the magnetic piston position within a compatible T-slot cylinder. Contactless sensing allows repeated cylinder movement to be monitored without mechanical wear. The switching signal can be used for machine sequencing and actuator feedback. This supports automated production processes. The sensor is suitable for repetitive pneumatic operation.
Despite its long cable configuration, the sensor retains a compact cylinder-mounted sensing design. It can be positioned within the T-slot according to the required switching point. The fastening arrangement supports convenient adjustment during setup. A visible switching indication assists commissioning. This provides practical installation for automated pneumatic machinery.
T-slot cylinder sensor
Magnetic position detection
6.0 m cable
Compact sensor body
Easy slot installation
Adjustable sensing position
Switching status indication
Industrial automation compatible
Suitable for long-distance wiring
Reliable cylinder feedback
Large automation machines
Pneumatic cylinder monitoring
Packaging equipment
Assembly lines
Material handling systems
Production machinery
Remote control cabinet installations
Machine sequencing
Linear actuator monitoring
Industrial automation
| Specification | Details |
|---|---|
| Product Code | MK5117 |
| Model | MKT3028BBPKG/G/6,0M/ZH |
| Product Type | T-slot cylinder sensor |
| Operating Principle | Magnetic/GMR family |
| Cylinder Type | T-slot |
| Electrical Design | Model-specific – verify datasheet |
| Output Function | Model-specific – verify datasheet |
| Operating Voltage | 10…30 V DC family value |
| Current Consumption | <10 mA family value |
| Protection Class | III family value |
| Reverse Polarity Protection | Yes, family value |
| Power-on Delay | 30 ms family value |
| Response Sensitivity | 2.8 mT family value |
| Travel Speed | >10 m/s family value |
| Switching Frequency | Model-specific |
| Output Current | Model-specific |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Cable Length | 6.0 m |
| Mounting | T-slot |
| Housing | PA family design |
| Fastening Clamp | Stainless steel family design |
| Display | Switching-status LED |
| Connection | Model-specific |
| Brand | IFM |
