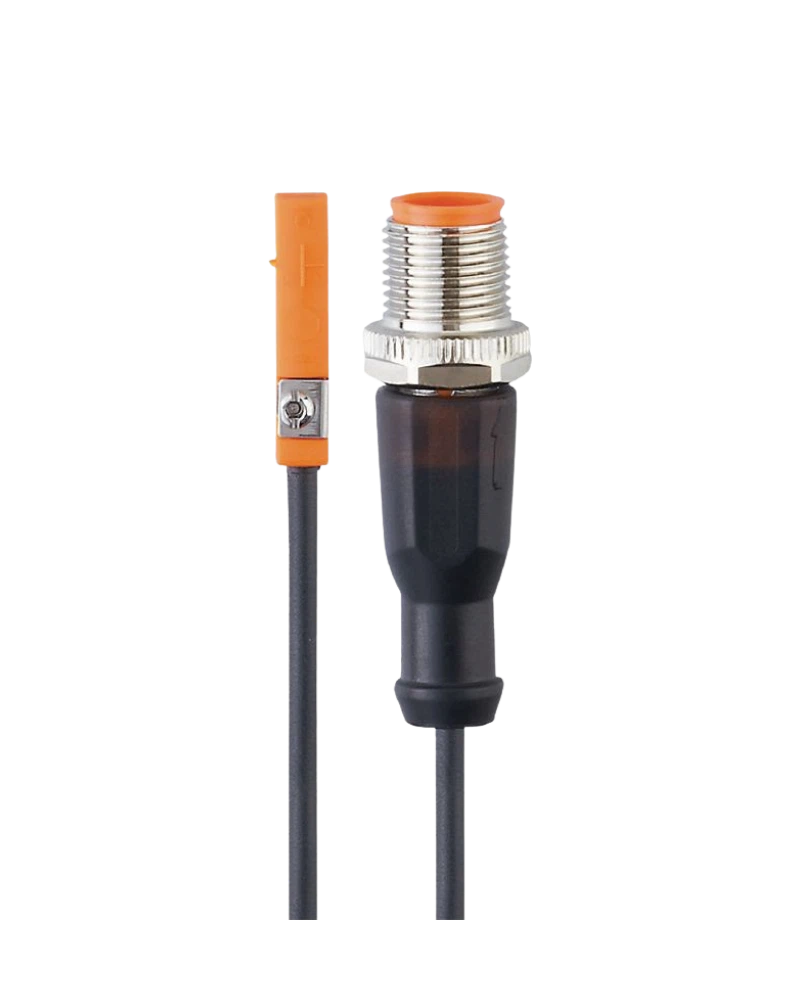

The IFM MK5116 cylinder sensor with GMR cell is designed for magnetic piston position detection on T-slot cylinders. Its GMR sensing technology provides contactless detection and is suitable for repetitive linear movements. The 1.0 m cable configuration supports practical connection to machine control systems. Its compact construction is suitable for industrial automation, packaging, handling and assembly equipment. The sensor provides a convenient solution for monitoring pneumatic actuator positions in automated machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5116 uses a GMR cell to detect the magnetic field of the piston. This enables contactless position detection during cylinder movement. The sensor can provide reliable feedback for extension and retraction positions. GMR technology is well suited to repetitive automated movements. This supports consistent position monitoring in industrial machinery.
The MKT3028BBPKG/G/1,0M/ZH/US configuration includes a 1.0 m cable. This provides additional wiring reach compared with short-cable sensor versions. It can simplify installation where the controller or junction point is positioned farther from the cylinder. The cable configuration supports practical routing in machine structures. This can help reduce the need for additional cable extensions.
The MK5116 can be integrated into pneumatic automation systems where cylinder position must be monitored. It can provide switching feedback to PLCs and machine controllers. The sensor is suitable for repeated machine cycles and automated sequences. Its compact construction helps maintain efficient machine layouts. It can support packaging, assembly, handling and production automation.
GMR cell technology
T-slot cylinder compatibility
Magnetic piston detection
1.0 m cable configuration
Compact sensor housing
Contactless sensing
Reliable switching feedback
Industrial automation design
Suitable for repetitive movement
Machine-control integration
Pneumatic cylinders
Packaging machines
Assembly automation
Handling systems
Pick-and-place equipment
Production lines
Machine sequencing
Actuator position monitoring
Factory automation
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | MK5116 |
| Model | MKT3028BBPKG/G/1,0M/ZH/US |
| Product Type | Cylinder sensor with GMR cell |
| Operating Principle | GMR cell |
| Cylinder Type | T-slot |
| Electrical Design | Model-specific – verify datasheet |
| Output Function | Model-specific – verify datasheet |
| Operating Voltage | Model-specific – verify datasheet |
| Current Consumption | Model-specific – verify datasheet |
| Protection Class | Model-specific |
| Reverse Polarity Protection | Model-specific |
| Power-on Delay | Model-specific |
| Response Sensitivity | Model-specific |
| Travel Speed | Model-specific |
| Switching Frequency | Model-specific |
| Output Current | Model-specific |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Cable Length | 1.0 m |
| Cable Configuration | Integrated cable |
| Mounting | T-slot |
| Housing | Model-specific |
| Connection | M12-family configuration |
| Display | Switching-status LED |
| Brand | IFM |
