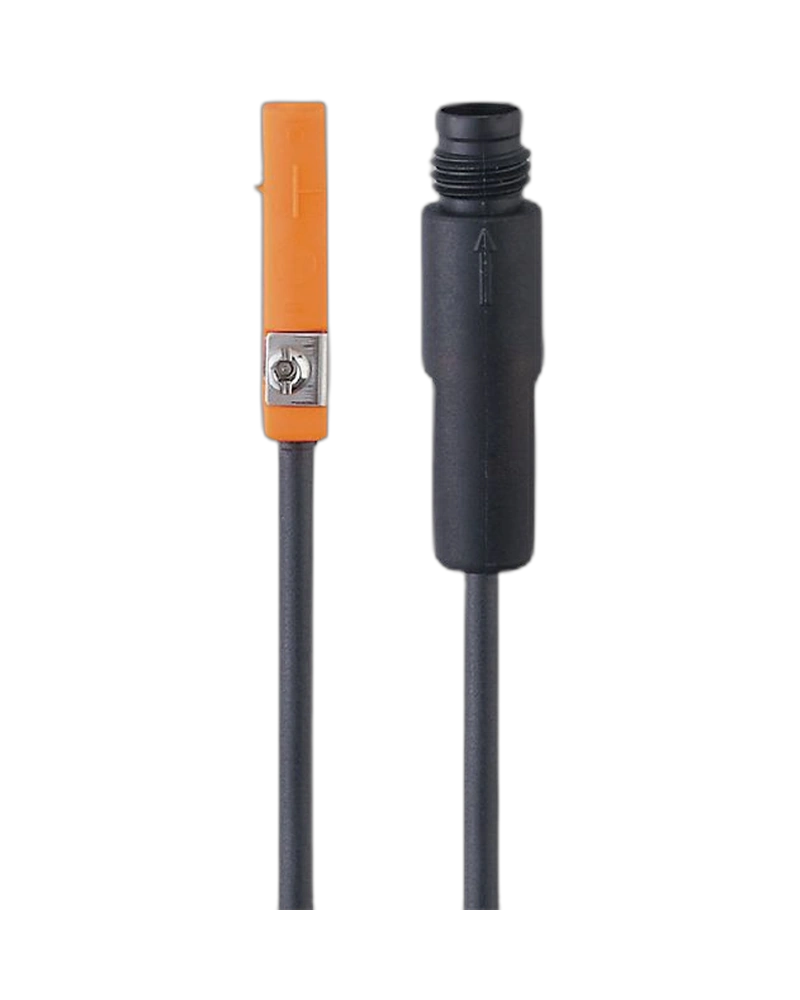

The IFM MK5112 T-slot cylinder sensor is designed for reliable magnetic piston position detection in pneumatic cylinders. Its GMR sensing technology provides contactless detection, while the compact T-slot housing enables convenient mounting directly in compatible cylinder profiles. The 0.3 m cable configuration supports practical machine wiring. With high switching capability, industrial protection features and a compact design, it is suitable for packaging, assembly, material handling and automated production systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5112 uses a GMR cell to detect the magnetic piston inside a pneumatic cylinder. This contactless detection method is suitable for repetitive actuator movements. The sensor provides switching feedback when the piston reaches the configured sensing position. This can be used for machine sequencing and process control. The magnetic sensing principle supports reliable automation.
The MK5112 is identified with a DC NPN electrical design and normally open output. It operates from 10…30 V DC and has a current consumption below 10 mA. The switching output is rated for 100 mA and supports high-frequency operation. Short-circuit and overload protection provide additional system protection. This makes the sensor suitable for industrial controller integration.
The sensor is designed for T-slot cylinders and provides a compact installation arrangement. Its 0.3 m cable can be routed directly toward nearby machine wiring. The fastening arrangement supports secure positioning within the cylinder slot. Its magnetic sensitivity of 2.8 mT supports reliable piston detection. The design is suitable for compact automated machinery.
GMR cell technology
NPN electrical design
Normally open output
10…30 V DC operation
2.8 mT magnetic sensitivity
Pneumatic cylinder monitoring
Packaging machines
Assembly systems
Handling equipment
Machine automation
Pick-and-place systems
Production lines
Cylinder sequencing
Linear actuator monitoring
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | MK5112 |
| Model | MKT3028BANKG/G/0,3M/ZH/AS |
| Product Type | T-slot cylinder sensor |
| Operating Principle | GMR cell |
| Electrical Design | DC NPN |
| Output Function | Normally open |
| Operating Voltage | 10…30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-on Delay | 30 ms max. |
| Voltage Drop | <2.5 V |
| Output Current | 100 mA |
| Switching Frequency | 10,000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Mounting | T-slot |
| Housing | PA family design |
| Fastening Clamp | Stainless steel family design |
| Cable Length | 0.3 m |
| Connection | Model-specific |
| Indicator | Switching-status LED |
| Brand | IFM |
