The IFM MK5111 T-slot cylinder sensor provides compact and high-speed magnetic piston detection for pneumatic cylinders. Its PNP normally open output, 10…30 V DC operation and 10,000 Hz switching frequency support rapid automated movements. The 0.3 m cable configuration provides practical machine connection, while the compact housing allows convenient T-slot installation. It is suitable for packaging, assembly, material handling and industrial automation systems requiring reliable and repeatable cylinder position feedback.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5111 is designed for detecting the position of magnetic pistons in T-slot cylinders. Its magnetic sensing principle provides contactless position feedback. The sensor supports travel speeds above 10 m/s and high switching frequency. This makes it suitable for fast pneumatic sequences. It can help controllers monitor actuator movement accurately.
The sensor uses a PNP normally open output and operates from 10…30 V DC. The switching output can be connected to PLC or automation controller inputs. Short-circuit and overload protection improve operational reliability. Reverse-polarity protection supports safe machine integration. These features make the sensor suitable for industrial control environments.

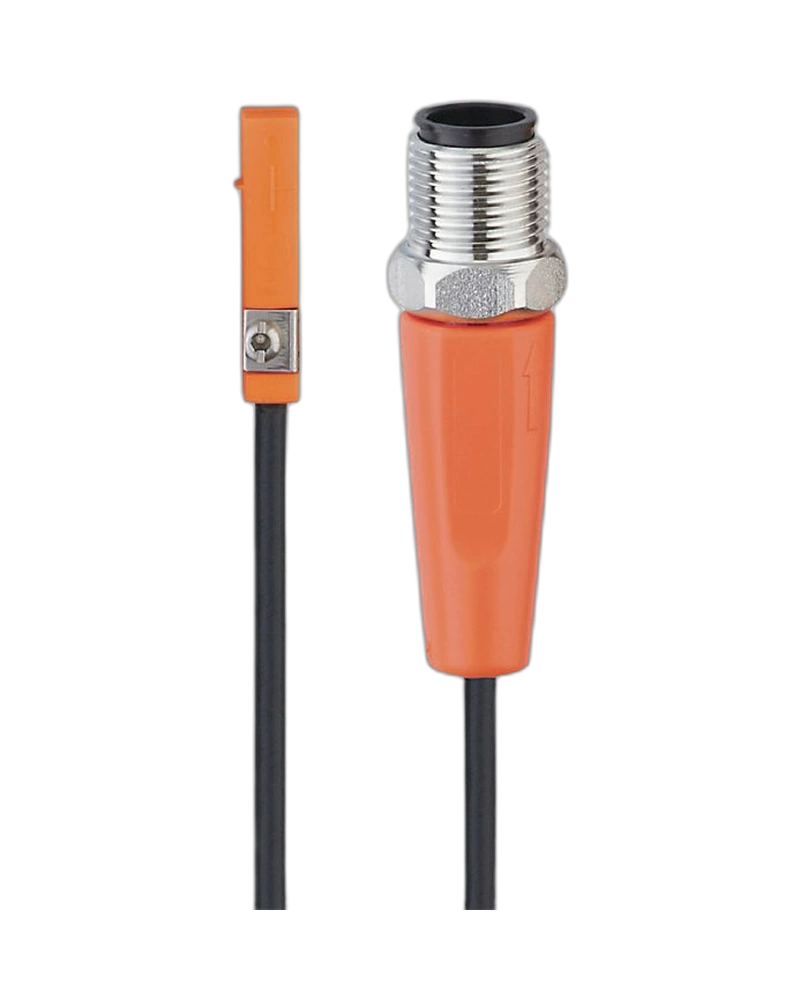

The MK5111 includes a 0.3 m cable and compact T-slot sensor housing. Its dimensions are approximately 25 x 5 x 6.5 mm. The sensor can be installed directly into compatible cylinder slots. The compact cable arrangement supports practical wiring around pneumatic actuators. The design also provides visible switching status for commissioning.
PNP output
Normally open function
10…30 V DC
T-slot mounting
0.3 m cable
2.8 mT response sensitivity
Pneumatic cylinder sensing
Packaging equipment
Assembly machines
Material handling
Pick-and-place systems
Machine automation
Production equipment
Cylinder sequencing
Linear actuator monitoring
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | MK5111 |
| Model | MKT3028BBPKG/G/0,3M/-H/US |
| Product Type | T-slot cylinder sensor |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10…30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-on Delay | 30 ms |
| Voltage Drop | 2.5 V max. |
| Output Current | 100 mA |
| Switching Frequency | 10,000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | 1.5 mm |
| Repeatability | <0.2 mm |
| Dimensions | 25 x 5 x 6.5 mm |
| Mounting | T-slot |
| Cable Length | 0.3 m |
| Connection | M12 connector |
| Display | Yellow LED |
| Brand | IFM |
