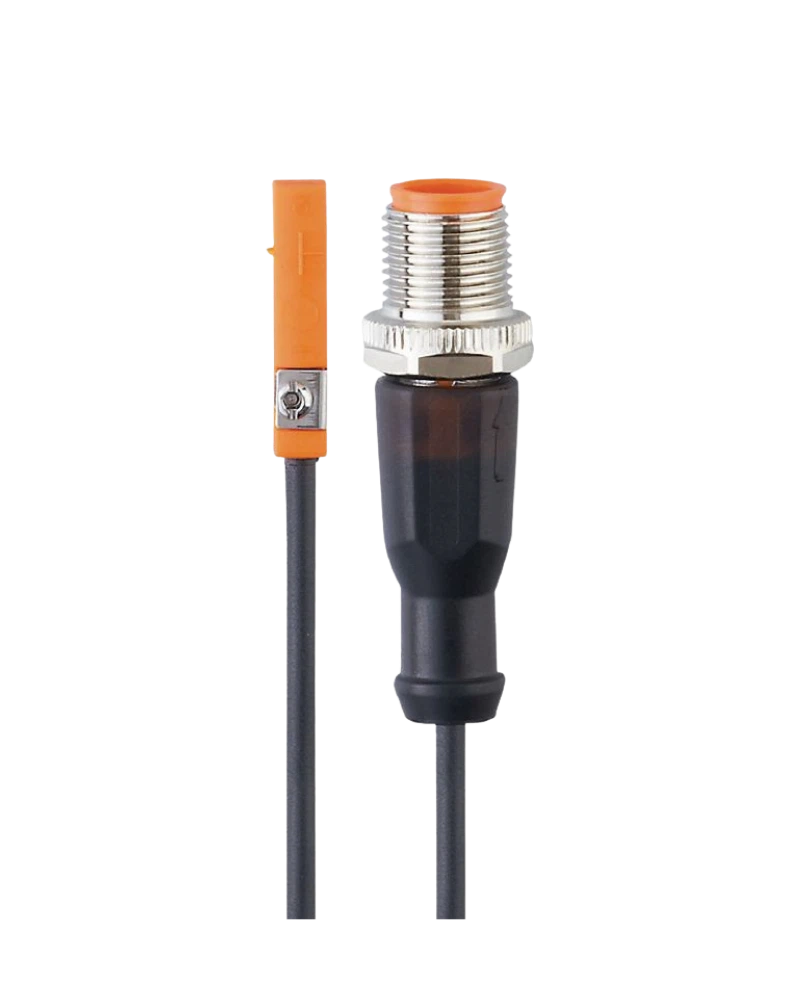

The IFM MK5109 T-slot cylinder sensor is designed for magnetic position monitoring in pneumatic cylinder applications. It uses the MKT2028BARKG sensor design and provides a compact solution for detecting piston movement in compatible T-slot cylinders. The 0.3 m cable configuration supports convenient machine connection. Its design is suited to repetitive industrial movements and can be integrated into packaging, handling, assembly and general automation systems where reliable actuator feedback is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5109 uses magnetic sensing to detect piston position within a pneumatic cylinder. The contactless detection principle allows repeated cylinder movements to be monitored without mechanical wear at the sensing point. The switching output can provide position information to machine controllers. This supports automated sequence control. The sensor is suitable for industrial pneumatic applications.
The MKT2028BARKG family is designed with PNP/NPN electrical capability and normally open output. The referenced MK5109 information indicates a broad supply range and 100 mA switching capability. Its switching frequency is suitable for repeated machine operation. These characteristics provide flexibility when integrating the sensor into existing control systems. Exact variant wiring should be checked before installation.
The sensor is designed for installation in compatible T-slot cylinders. Its compact construction helps reduce the space required around the actuator. The 0.3 m cable provides a practical connection arrangement. The sensor can be adjusted to the required piston detection position. This supports efficient machine commissioning and maintenance.
T-slot cylinder sensor
GMR family sensing
PNP/NPN electrical design
Normally open output
Compact construction
0.3 m cable
Magnetic piston detection
100 mA switching capability
Industrial automation design
Easy cylinder integration
Pneumatic automation
Packaging machinery
Assembly systems
Handling equipment
Pick-and-place machines
Cylinder sequencing
Linear actuator monitoring
Production lines
Special-purpose machinery
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | MK5109 |
| Model | MKT2028BARKG/G/0,3M/ZH/US |
| Product Type | T-slot cylinder sensor |
| Operating Principle | GMR cell |
| Electrical Design | PNP/NPN |
| Output Function | Normally open |
| Operating Voltage | 5…50 V AC / 5…60 V DC family variant |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Output Current | 100 mA |
| Voltage Drop | 5 V max. family variant |
| Switching Frequency DC | 1,000 Hz |
| Switching Frequency AC | 1,000 Hz |
| Maximum Switching Power | 10 W |
| Response Sensitivity | 2.1 mT family variant |
| Travel Speed | 10 m/s family variant |
| Short-Circuit Protection | No, according to referenced variant |
| Overload Protection | No, according to referenced variant |
| Mounting | T-slot |
| Housing | Model-specific |
| Cable Length | 0.3 m |
| Connection | Model-specific |
| Output Type | Switching output |
| Indicator | Switching status LED |
| Installation | Flush mounting family design |
| Brand | IFM |
