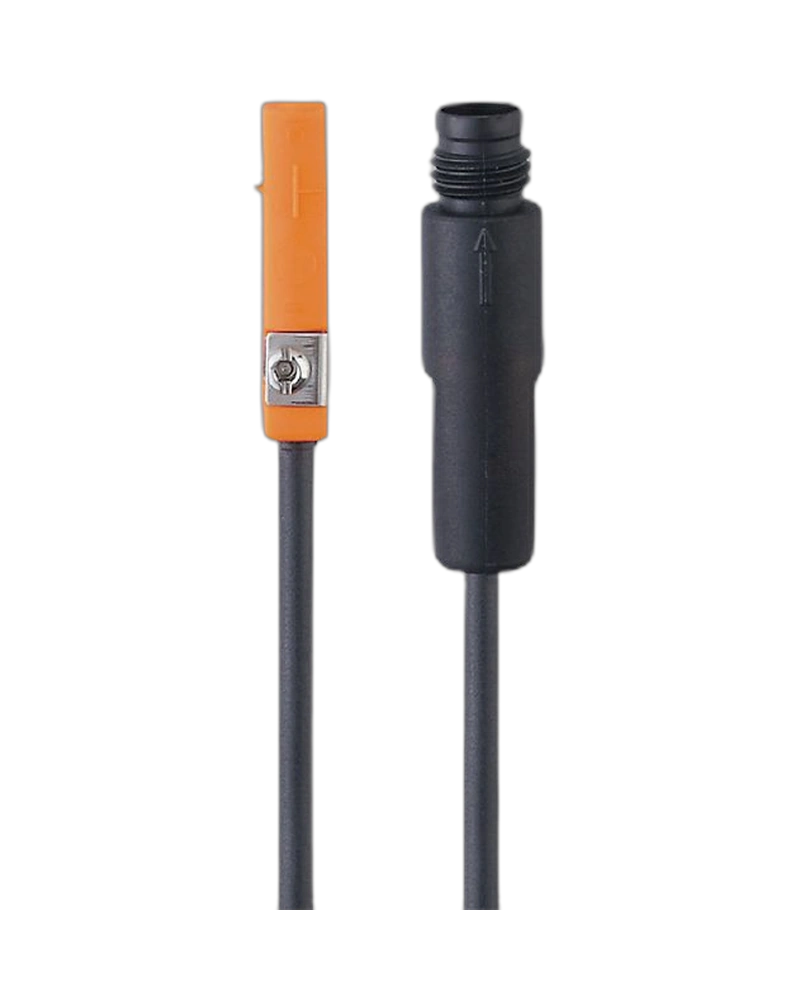

The IFM MK5106 T-slot cylinder sensor is designed for precise magnetic position monitoring in pneumatic cylinder applications. Its compact construction allows convenient installation directly into compatible T-slot profiles, while the 0.3 m cable configuration provides practical connection to machine wiring. The sensor is suitable for repetitive automated movements and cylinder sequencing. It can be integrated into packaging, assembly, handling and general industrial automation equipment requiring dependable piston position feedback.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5106 provides a compact sensing solution for pneumatic cylinders with T-slot mounting. Its small housing allows installation inside the available cylinder profile. The sensor can be adjusted to the required piston detection point. This helps simplify machine setup and commissioning. The design is particularly useful where installation space is limited.
The sensor detects the magnetic piston position without physical contact. This allows the control system to receive feedback during cylinder extension and retraction. The switching signal can be used for sequence control and machine monitoring. Repetitive movements can therefore be monitored efficiently. The sensing principle is well suited to automated pneumatic systems.
The 0.3 m cable configuration provides a practical connection between the sensor and machine wiring. The compact construction helps maintain a clean machine layout. The sensor can be used with PLC-based automation systems. Its switching indication assists with commissioning and troubleshooting. This supports efficient operation and maintenance.
T-slot cylinder mounting
Compact magnetic sensor
GMR family sensing
0.3 m cable configuration
Fast switching capability
Visible switching indication
Reliable piston detection
Easy sensor adjustment
Industrial automation compatible
Space-saving design
Pneumatic actuator monitoring
Packaging machinery
Assembly systems
Material handling
Pick-and-place equipment
Production automation
Cylinder sequencing
Machine control
Linear movement detection
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | MK5106 |
| Model | MKT3028BBPKG/G/0,3M/ZH/AS |
| Product Type | T-slot cylinder sensor |
| Operating Principle | Magnetic/GMR family |
| Cylinder Type | T-slot |
| Electrical Design | Model-specific – verify datasheet |
| Output Function | Model-specific – verify datasheet |
| Operating Voltage | 10…30 V DC family value |
| Current Consumption | <10 mA family value |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-on Delay | 30 ms family value |
| Response Sensitivity | 2.8 mT family value |
| Travel Speed | >10 m/s family value |
| Switching Frequency | Model-specific |
| Output Current | Up to 100 mA depending on variant |
| Short-Circuit Protection | Yes, depending on variant |
| Overload Protection | Yes, depending on variant |
| Dimensions | 25 x 5 x 6.5 mm family design |
| Mounting | T-slot |
| Housing | PA family design |
| Display | Yellow LED |
| Cable Length | 0.3 m |
| Connection | Model-specific |
| Brand | IFM |
