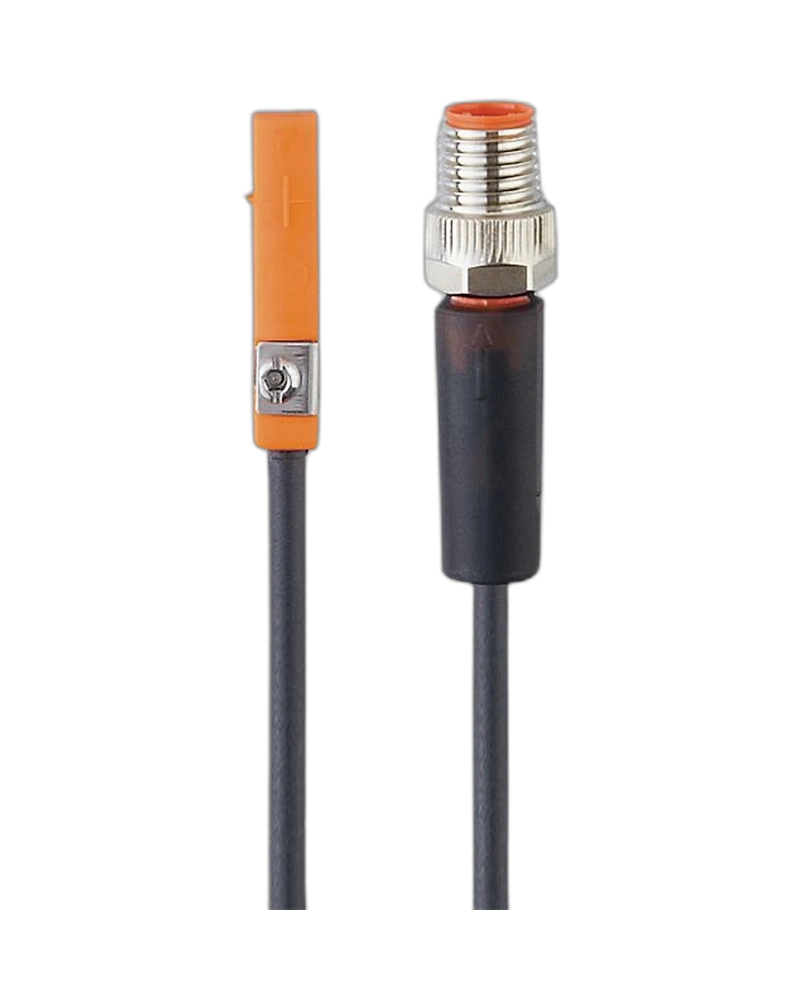

The IFM MK5105 T-slot cylinder sensor provides compact and reliable piston position detection for pneumatic cylinders. It uses a GMR cell and can be installed directly into compatible T-slot cylinder profiles. The 0.3 m cable configuration supports convenient machine wiring, while the normally open switching function provides practical feedback to automation controllers. With PNP/NPN capability, protection functions and high-speed operation, it is suitable for packaging, handling, assembly and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5105 detects the magnetic field generated by a cylinder piston using GMR technology. The contactless sensing principle supports reliable position monitoring without mechanical contact. It can detect piston movement during repeated cylinder cycles. The sensor is useful for determining actuator position in automated sequences. Its compact design supports integration into space-limited machinery.
The sensor has a PNP/NPN electrical design and normally open output. It operates from a 10…30 V DC supply and provides a switching signal to the control system. The switching output is rated for industrial control applications. Protection functions help reduce the effect of short-circuit and overload conditions. This makes the sensor suitable for flexible automation installations.
The MK5105 incorporates a 0.3 m cable and is designed for convenient T-slot installation. Its compact dimensions help maintain clearance around the pneumatic cylinder. The cable can be routed directly toward the machine connection point. This reduces unnecessary wiring around the actuator. The design supports fast installation and maintenance.
GMR cell technology
PNP/NPN electrical design
Normally open output
10…30 V DC supply
2.8 mT magnetic sensitivity
Travel speed above 10 m/s
4,000 Hz switching frequency
0.3 m cable
Short-circuit protection
Overload protection
Pneumatic cylinder monitoring
Packaging automation
Assembly machinery
Handling equipment
Pick-and-place systems
Production lines
Machine tools
Linear actuator monitoring
Industrial automation
Cylinder sequencing
| Specification | Details |
|---|---|
| Product Code | MK5105 |
| Model | MKT2028BARKG/G/0,3M/ZH/ASR |
| Product Type | T-slot cylinder sensor |
| Operating Principle | GMR cell |
| Electrical Design | PNP/NPN |
| Output Function | Normally open |
| Operating Voltage | 10…30 V DC |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-on Delay | 30 ms max. |
| Voltage Drop | 4.5 V max. |
| Minimum Load Current | 5 mA |
| Leakage Current | <0.8 mA |
| Output Current | 100 mA |
| Switching Frequency | 4,000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Dimensions | 25.3 x 5 x 6.5 mm |
| Mounting | Flush mountable |
| Cable Length | 0.3 m |
| Cable Configuration | Integrated cable |
| Connection | Model-specific |
| Brand | IFM |
