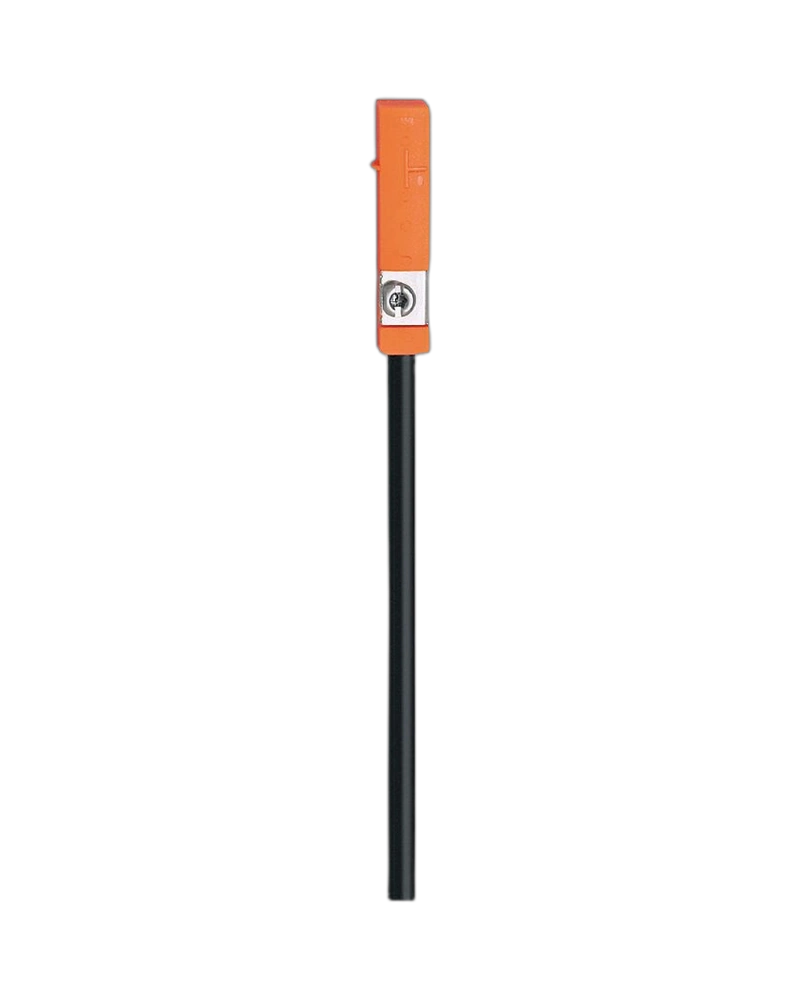

The IFM MK5103 T-slot cylinder sensor is designed for magnetic position detection on pneumatic cylinders used in industrial automation. Its compact T-slot construction allows direct mounting into compatible cylinder profiles and enables convenient adjustment of the sensing position. The MKT2028BARKG design belongs to the GMR-based cylinder sensor family and is suitable for monitoring repetitive piston movements. It can support machine sequencing, actuator feedback, packaging, handling and automated production equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5103 uses a magnetic sensing principle to detect the position of a piston magnet inside a compatible cylinder. This contactless operation reduces mechanical wear at the sensing point. The sensor provides feedback to the machine controller when the piston reaches the detection position. It can support reliable automated movement sequences. The GMR technology is suitable for high-speed cylinder applications.
The sensor is designed for direct installation into T-slot cylinders. Its compact housing allows installation where available space around the cylinder is limited. The sensor can be positioned along the slot according to the required switching point. This makes commissioning easier during machine setup. The mounting concept supports clean and space-efficient pneumatic installations.
The MK5103 can be used in automated machinery requiring repeated cylinder position feedback. It is suitable for applications involving frequent extension and retraction cycles. The sensor supports integration with industrial control systems. Its compact construction helps maintain a neat machine layout. The exact electrical variant should be checked against the model-specific datasheet.
T-slot cylinder design
GMR magnetic sensing
Compact construction
Flush-mountable design
Reliable piston detection
High-speed magnetic response
Easy position adjustment
Suitable for pneumatic automation
Industrial machine integration
Non-contact sensing
Pneumatic actuator monitoring
Packaging machines
Assembly equipment
Material handling
Pick-and-place systems
Machine automation
Production machinery
Cylinder sequencing
Linear movement monitoring
Industrial control panels
| Specification | Details |
|---|---|
| Product Code | MK5103 |
| Model | MKT2028BARKG/G/ZH |
| Product Type | T-slot cylinder sensor |
| Sensor Principle | GMR cell |
| Cylinder Type | T-slot |
| Electrical Design | Model-specific – verify datasheet |
| Output Function | Normally open family variant |
| Operating Voltage | Model-specific – verify datasheet |
| Current Consumption | Model-specific – verify datasheet |
| Protection Class | III family value |
| Reverse Polarity Protection | Yes |
| Power-on Delay | Model-specific |
| Response Sensitivity | Approx. 2.8 mT family value |
| Travel Speed | >10 m/s family value |
| Switching Frequency | Model-specific |
| Output Current | Model-specific |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Mounting | T-slot |
| Flush Mounting | Yes, family design |
| Housing | PA family construction |
| Fastening Clamp | Stainless steel family design |
| Display | Switching-status LED |
| Connection | Model-specific |
| Brand | IFM |
