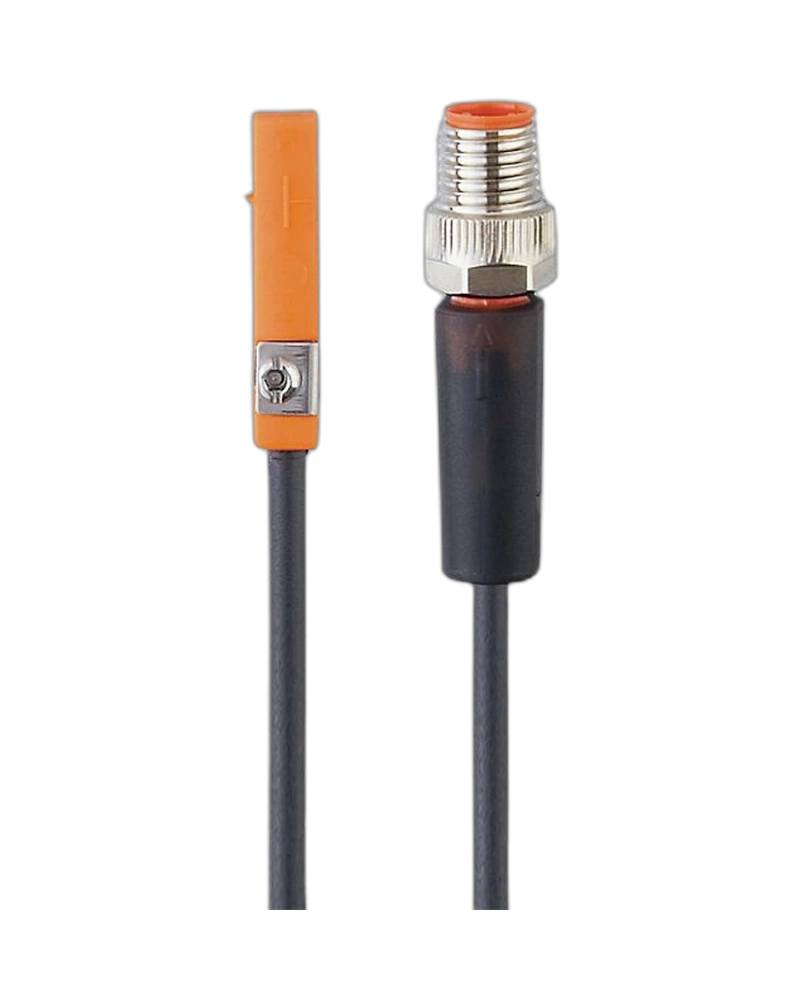

The IFM MK5102 T-slot cylinder sensor is designed for dependable magnetic position detection on pneumatic cylinders. Its compact construction enables convenient installation in compatible T-slot profiles, while the 0.3 m cable and connector configuration provides practical machine integration. The sensor is suitable for automated cylinder monitoring, machine sequencing and position feedback. It supports fast repetitive movements and is designed for industrial automation environments where compact and reliable sensing is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5102 combines a compact T-slot housing with magnetic sensing technology for cylinder position monitoring. It can be positioned within the cylinder slot to establish the required detection point. The design supports flush mounting and convenient sensor adjustment. Its compact dimensions help save installation space. This makes it suitable for modern pneumatic automation systems.
The sensor provides a normally open switching output and is designed for high-speed operation. Its magnetic sensitivity supports reliable piston detection during rapid cylinder movements. The switching output can be integrated with machine controllers and PLC inputs. Protection functions help support reliable industrial use. The sensor is suitable for repetitive automated processes.
The MKT3028BBPKG/G/0,3M/ZH/ASR version incorporates a 0.3 m cable configuration. This provides convenient routing between the cylinder sensor and the machine connection point. The connection arrangement is suited to compact machine layouts. Its construction supports practical installation and maintenance. It can be used where short sensor leads are preferred.
T-slot installation
Compact magnetic sensor
PNP electrical design
Normally open output
10…30 V DC operation
2.8 mT magnetic sensitivity
High switching frequency
0.3 m cable configuration
Short-circuit protection
Overload protection
Pneumatic cylinder monitoring
Automation systems
Packaging equipment
Assembly machinery
Handling systems
Machine tools
Pick-and-place applications
Production lines
Cylinder sequencing
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | MK5102 |
| Model | MKT3028BBPKG/G/0,3M/ZH/ASR |
| Product Type | T-slot cylinder sensor |
| Operating Principle | Magnetic sensing |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10…30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-on Delay | 30 ms max. |
| Voltage Drop | 2.5 V max. |
| Output Current | 100 mA |
| Switching Frequency | 10,000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Response Sensitivity | 2.8 mT |
| Travel Speed | >10 m/s |
| Hysteresis | <1.5 mm |
| Dimensions | 25 x 5 x 6.5 mm family design |
| Mounting | T-slot |
| Cable Length | 0.3 m |
| Connection | Model-specific connector |
| Housing | PA |
| Brand | IFM |
