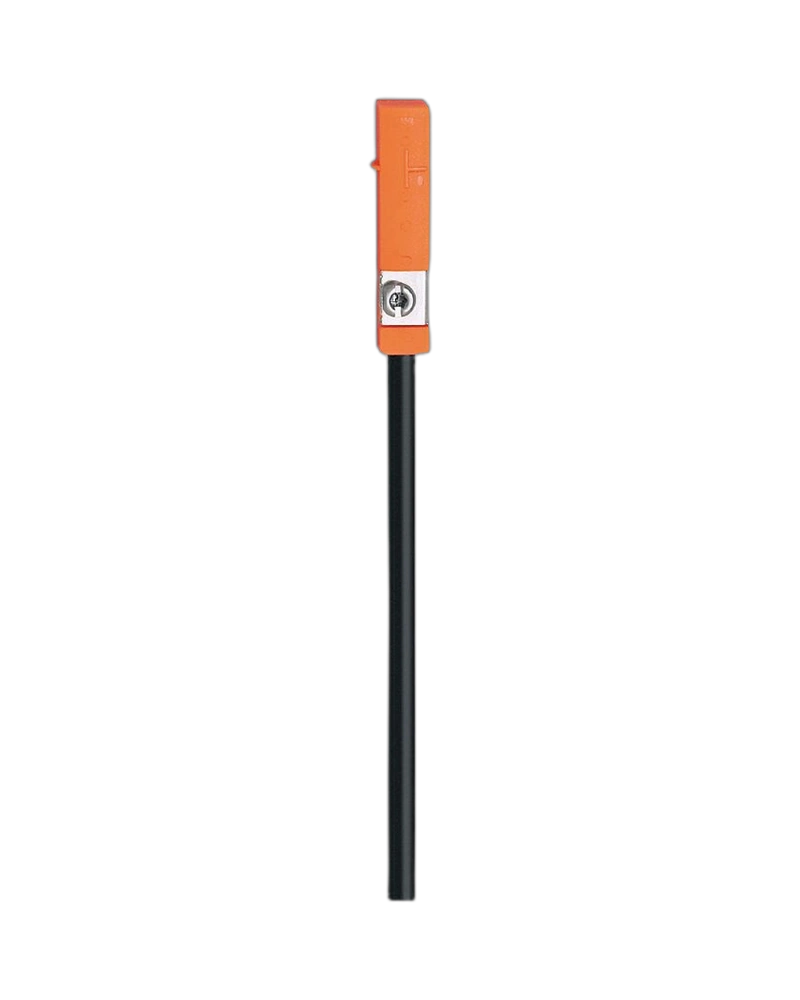

The IFM MK5100 T-slot cylinder sensor is designed for dependable magnetic position detection in pneumatic cylinders. Its compact T-slot construction allows the sensor to be inserted and positioned directly within compatible cylinder profiles, helping simplify installation and adjustment. The sensor is suitable for automated machinery where accurate cylinder position feedback is required. It can support packaging, handling, assembly and general factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MK5100 is developed specifically for T-slot cylinders and offers a compact installation method. The sensor can be positioned within the cylinder slot to detect the magnetic piston. Its small form factor helps conserve installation space. The fastening arrangement supports practical mounting and adjustment. This makes it suitable for compact pneumatic automation systems.
The sensor uses magnetic detection to identify the piston position within the cylinder. This provides a switching signal for PLCs and machine controllers. Position feedback can be used to control automated movement sequences. It helps determine whether a cylinder has reached its required position. The sensing principle is suitable for repetitive industrial operation.
The MK5100 can be integrated into pneumatic control systems used across automated machinery. Its compact design is useful in applications where sensors must fit inside narrow cylinder slots. It can support machine sequencing and process monitoring. The visible switching indication helps during setup and commissioning. It is a practical solution for cylinder position feedback.
T-slot cylinder sensor design
Magnetic piston detection
Compact housing
Easy slot installation
Adjustable sensor position
Visible switching indication
Suitable for pneumatic cylinders
Designed for industrial automation
Reliable position feedback
Suitable for repetitive machine operation
Pneumatic cylinder monitoring
Packaging machinery
Assembly machines
Material handling systems
Pick-and-place equipment
Automation machinery
Linear actuator monitoring
Production lines
Machine sequencing
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | MK5100 |
| Model | MKT3028BBPKG/G/ZH |
| Product Type | T-slot cylinder sensor |
| Operating Principle | Magnetic sensing |
| Cylinder Type | T-slot |
| Electrical Design | Model-specific – verify datasheet |
| Output Function | Model-specific – verify datasheet |
| Operating Voltage | 10…30 V DC family value |
| Current Consumption | <10 mA family value |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-on Delay | 30 ms max. family value |
| Response Sensitivity | 2.8 mT family value |
| Travel Speed | >10 m/s family value |
| Switching Frequency | Up to 10,000 Hz depending on variant |
| Switching Output Current | Up to 100 mA depending on variant |
| Short-Circuit Protection | Yes, depending on variant |
| Overload Protection | Yes, depending on variant |
| Dimensions | Approx. 25 x 5 x 6.5 mm family design |
| Housing | PA family construction |
| Fastening Clamp | Stainless steel family design |
| Display | Yellow LED, switching status |
| Mounting | Flush mountable family design |
| Connection | Model-specific |
| Brand | IFM |
