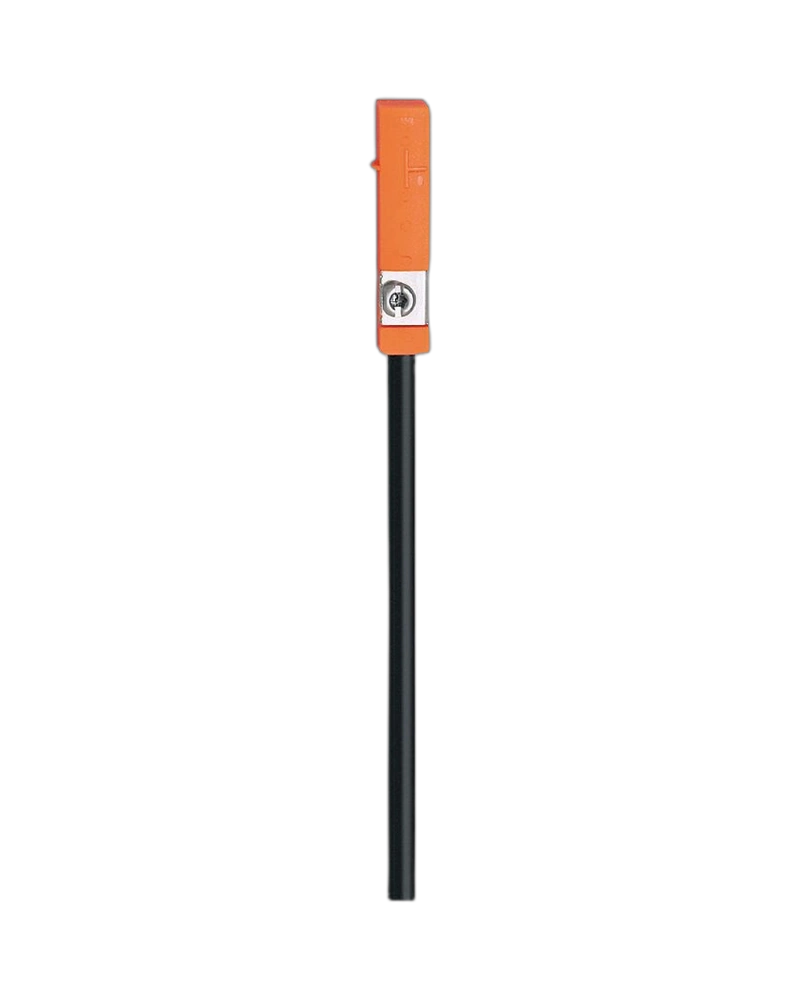

The IFM MK500A T-slot cylinder sensor is designed for reliable magnetic position detection on pneumatic cylinders with T-slots. It detects the piston magnet without mechanical contact and provides a switching signal for machine control. The compact sensor format supports direct cylinder installation and is suitable for automated pneumatic systems, assembly equipment and industrial production machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
MK500A is a T-slot cylinder sensor designed for mounting directly into compatible pneumatic cylinders. It uses magnetic detection to identify the position of the piston. This enables reliable feedback without physical contact with moving components. The compact 25 × 5 × 6.5 mm format supports space-saving installation.
The sensor uses a PNP electrical design and normally open output function. Its compact dimensions allow it to fit within T-slot cylinder applications. Magnetic sensing provides reliable piston-position feedback for automated machine sequences. The sensor is designed for repetitive switching in industrial pneumatic systems.
MK500A can be used in pneumatic automation equipment where cylinder position must be monitored. It is suitable for assembly machinery, material handling and production lines. The sensor can provide feedback for cylinder extension and retraction states. Its compact design supports integration into machines with limited installation space.
MK500A provides a compact and practical solution for T-slot cylinder position detection. Its PNP normally-open output and magnetic sensing principle make it suitable for machine-control applications. The sensor can be installed directly on compatible cylinders for efficient pneumatic automation.
T-slot cylinder mounting
Magnetic sensing
PNP electrical design
Normally open output
Compact 25 × 5 × 6.5 mm design
Non-contact piston detection
10–30 V DC operation
Short power-on delay
Short-circuit protection
Overload protection
Pneumatic cylinder monitoring
Assembly machines
Packaging machinery
Material handling
Production automation
Machine sequencing
Pneumatic systems
Cylinder position feedback
Industrial machinery
Factory automation
| Specification | Details |
|---|---|
| Product Code | MK500A |
| Model | MKT3028BBPKG/G/ZH/3D |
| Brand | IFM |
| Product Type | T-slot cylinder sensor |
| Sensor Principle | Magnetic |
| Electrical Design | PNP |
| Output Function | Normally open |
| Dimensions | 25 × 5 × 6.5 mm |
| Operating Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Maximum Power-on Delay | 30 ms |
| Maximum Voltage Drop | 2.5 V |
| Permanent Current Rating | 100 mA |
| Switching Frequency | 10,000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Response Sensitivity | 2.8 mT |
| Detection Zone | Magnetic |
| Hysteresis | <1.5 mm |
| Mounting | T-slot cylinder |
| Connection | Model dependent |
| Application | Pneumatic cylinder position |
| Product Family | MK cylinder sensors |
