Product Overview

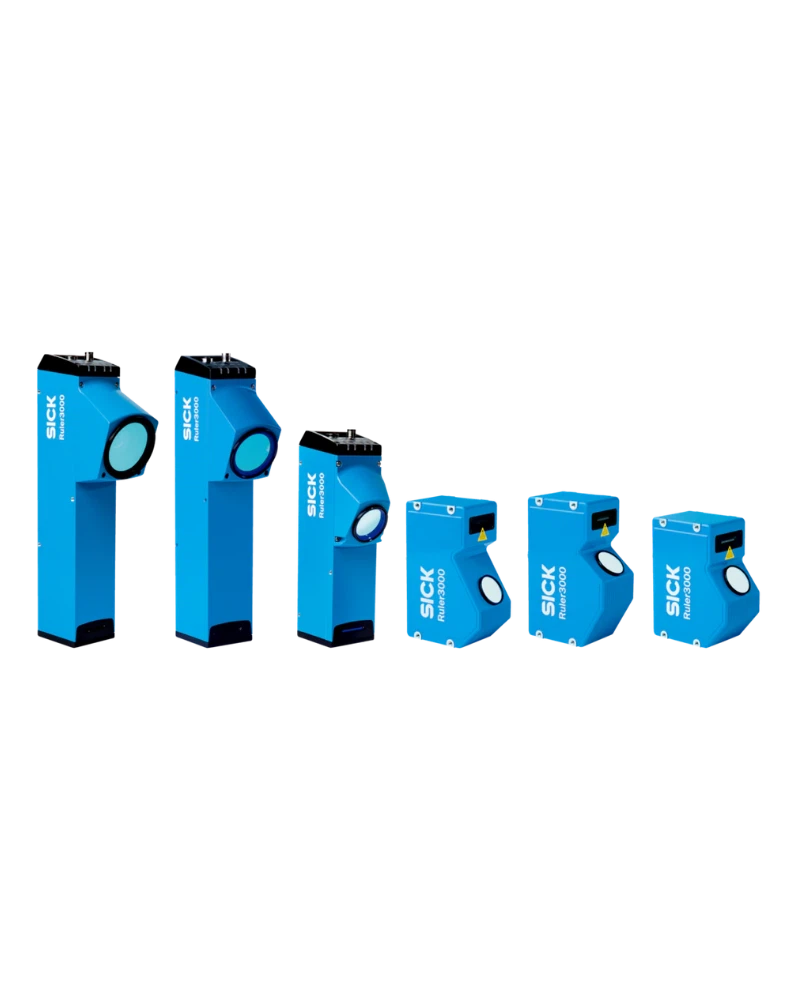

The SICK Ruler3000 is a high-performance 3D machine vision camera designed for fast, accurate measurement in industrial applications. Powered by SICK’s unique 3D CMOS sensor, it delivers reliable results with unmatched speed and precision. The Ruler3000 enables system integrators to achieve superior inspection performance through advanced AI-driven 3D vision technology integrated into the SICK Nova platform. With its ability to capture detailed surface features and dimensional data in a single shot, the Ruler3000 simplifies complex inspection tasks while maintaining high accuracy. It is engineered for demanding environments where speed, reliability, and precision are critical—making it the preferred choice for next-generation machine vision systems.

Key Features and Technology

The Ruler3000 leverages SICK Nova AI technology to deliver intelligent 3D vision with true height-based understanding. This enables inspection capabilities beyond traditional 3D imaging, allowing detection of dents, irregularities, and surface defects in a single measurement. The patented Surface+ technology adds an extra image dimension that reveals even the smallest scratches on smooth surfaces. It also supports gloss defect detection by measuring coating reflectivity. Both 2D and 3D data are captured simultaneously during a single image acquisition and aligned precisely within the same coordinate system, ensuring seamless integration into inspection workflows. This dual capability—dimensional measurement and surface quality assessment—without additional hardware or complex setups makes the Ruler3000 a powerful solution for comprehensive quality control.

Technical Characteristics

The SICK Ruler3000 delivers 3200 data points per profile, enabling highly detailed and accurate measurements down to the micrometer range. Its 3D CMOS sensor ensures superior image processing and reliable measurement outcomes. The camera captures both 2D and 3D data in a single frame, with Surface+ technology providing an additional dimension for surface inspection. This dual-data capability allows detection of dimensional irregularities such as dents using 3D data and fine scratches or gloss defects using 2D data—all within one image capture. The alignment of 2D and 3D data ensures consistent spatial accuracy across all inspection tasks, enabling high-quality results even in complex applications.

Configuration and Integration

The Ruler3000 is designed for ease of integration into existing machine vision systems. With SICK Nova AI tools, it simplifies setup by combining artificial intelligence with true height-based understanding to automate inspection processes. The camera captures both 2D and 3D data in a single image capture, reducing the need for multiple cameras or complex alignment procedures. This unified approach streamlines integration while maintaining high performance. System integrators can leverage existing SICK Nova AI tools to configure and deploy advanced inspection logic without extensive programming. The aligned coordinate system between 2D and 3D data ensures consistent results across different inspection tasks, reducing setup time and improving reliability.

Operating Environment

The Ruler3000 is built for robust industrial operation under a wide range of environmental conditions. It operates effectively in standard industrial settings with typical temperature and humidity ranges. The camera’s design ensures stable performance even when exposed to varying lighting conditions, making it suitable for use in diverse production environments. Its high-speed processing and reliable image quality maintain accuracy regardless of ambient changes. While specific environmental ratings are not provided in the source material, its proven performance in real-world applications confirms suitability for continuous operation in demanding industrial settings where consistent inspection results are essential.

Industrial Applications

The Ruler3000 is ideal for a range of industries requiring precise dimensional and surface inspections. Common use cases include battery foil inspection, ceramic tile quality control, and board defect detection. In these applications, the 3D data identifies dents or irregularities in shape and size, while the 2D data detects fine scratches or gloss defects visible under specific illumination. With Surface+ technology, both tasks are completed with a single camera, eliminating the need for multiple sensors. This makes the Ruler3000 particularly effective in high-speed production lines where throughput and inspection accuracy must be balanced. Its ability to capture detailed features at the micrometer level ensures reliable quality assurance across complex manufacturing processes.
