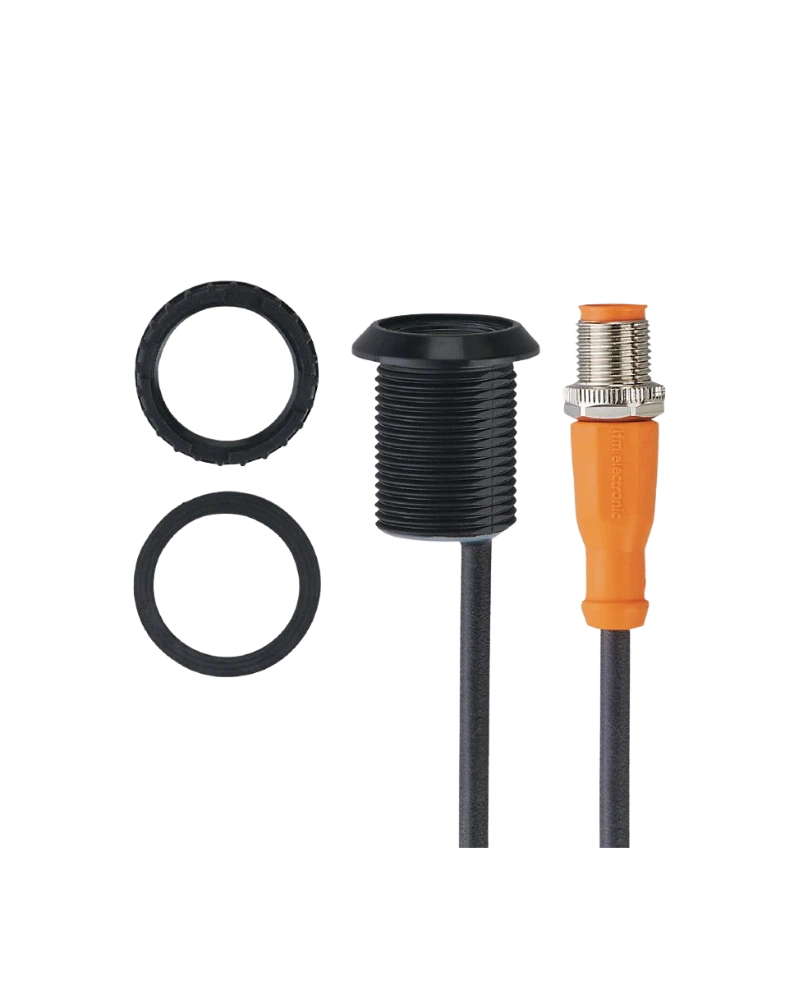

The IFM KT5112 is an illuminated capacitive touch sensor designed for intuitive industrial machine operation. It combines capacitive touch detection with integrated visual indication in an M22 panel-mount format. The sensor uses dynamic evaluation and features a compact 0.3 m PUR cable with M12 plug. Its durable construction and high ingress protection make it suitable for automation panels and demanding machine interfaces.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KT5112 provides modern touch-based machine control using capacitive sensing technology. Its M22 panel design allows convenient integration into suitable industrial control panels. Dynamic evaluation supports responsive operator interaction, while integrated illumination provides clear visual feedback. The compact 0.3 m PUR cable and M12 plug arrangement make the sensor particularly practical for installations where neat and accessible panel wiring is required.
The sensor is designed for reliable touch activation during repeated machine operation. Its PUR cable and M12 plug provide a practical connection solution, while high ingress protection supports use in industrial environments exposed to dust and moisture. The illuminated surface helps operators identify the control position quickly. Its compact construction allows machine builders to integrate touch operation without requiring extensive panel space.
The KT5112 combines responsive capacitive touch operation, integrated illumination and a compact industrial connection arrangement. The M22 design supports straightforward panel mounting, while the PUR cable and M12 plug simplify field connection. It is suitable for machine builders looking for durable touch controls that provide convenient operator interaction and visible feedback in industrial automation environments.
Illuminated capacitive touch sensing
M22 panel mounting
Dynamic evaluation
DC PNP switching principle
Integrated visual illumination
0.3 m PUR cable
M12 plug connection
Compact industrial design
High ingress protection
Suitable for automation interfaces
Industrial machine controls
Operator panels
Production equipment
Packaging systems
Assembly machinery
Factory automation
Machine function activation
Process equipment controls
Industrial command stations
Automation control panels
| Specification | Details |
|---|---|
| Product Code | KT5112 |
| Model | KTMDF-KGRBPKG/US |
| Product Type | Illuminated capacitive touch sensor |
| Sensing Range | Capacitive touch sensing |
| Electrical Design | DC PNP |
| Output Function | Model-specific |
| Operating Voltage | 24 V DC ±20% |
| Current Consumption | Approx. 30 mA |
| Housing Material | PA |
| Housing Design | M22 panel-mount design |
| Connection | 0.3 m PUR cable |
| Connector | M12 plug |
| Protection Rating | IP65 / IP67 / IP69K |
| Protection Class | Model-specific |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | -40 to 85 °C |
| Installation | Panel installation |
| Mounting | M22 |
| LED Indicator | Integrated illumination |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Reverse Polarity Protection | Model-specific |
| Weight | Model-specific |
| Additional Information | Dynamic evaluation; compact M12 connection configuration |
