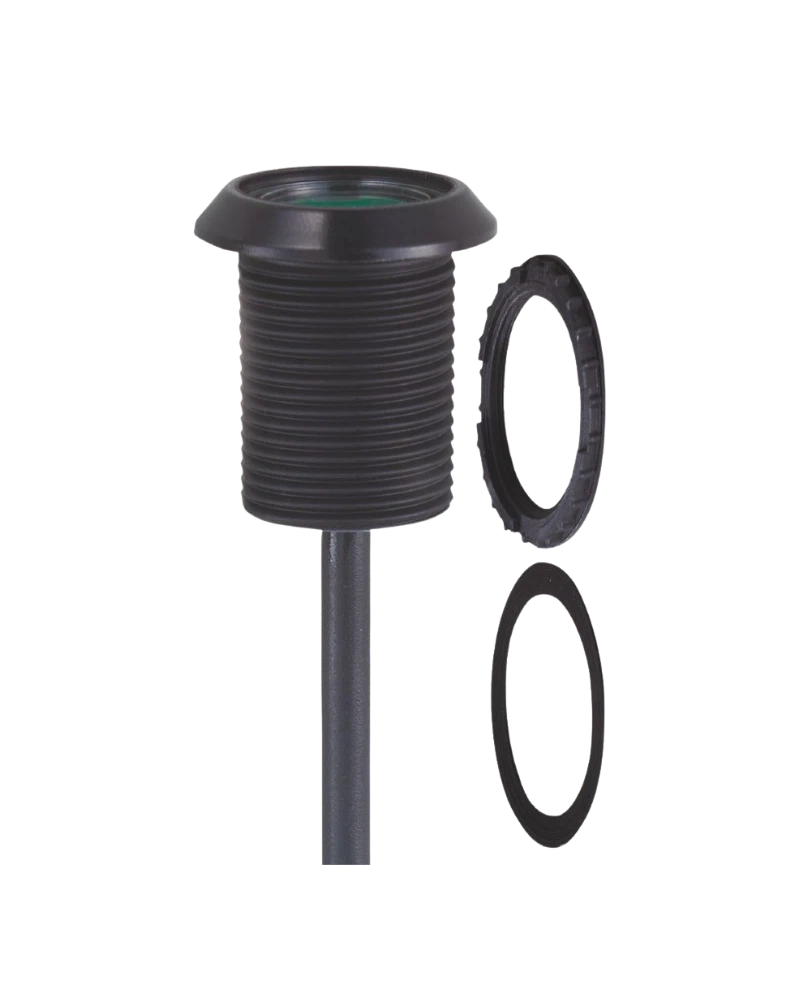

The IFM KT5110 is an illuminated capacitive touch sensor designed for modern industrial operator interfaces. It provides intuitive touch activation with integrated illumination for clear visual feedback. The M22 design, PA housing and 2 m PUR cable make it suitable for machine control panels and automation equipment. Its industrial protection and touch-based operation provide a convenient alternative to conventional mechanical controls.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KT5110 uses capacitive touch technology to provide convenient operator control without mechanical button movement. Its M22 panel-mount configuration supports integration into machine panels and control enclosures. Integrated illumination improves visibility and helps operators identify the active control area. The sensor is designed for industrial automation applications where dependable touch detection, visual feedback and straightforward installation are important.
The sensor provides reliable touch interaction for frequently operated machine functions. Its 2 m PUR cable allows practical wiring in automation installations, while the robust PA housing supports industrial use. IP65, IP67 and IP69K protection provides resistance to dust, moisture and demanding cleaning conditions. The illumination can also be controlled separately, giving machine builders additional flexibility for operator indication.
The KT5110 combines capacitive touch operation, visual illumination and industrial protection in a compact M22 sensor. Its DC PNP switching design supports integration into appropriate control systems. The long PUR cable provides installation flexibility, while the durable housing and high protection ratings support demanding machine environments. It is a practical solution for modern, user-friendly industrial operator panels.
Illuminated capacitive touch operation
M22 panel mounting
Static evaluation
DC PNP switching design
Normally open switching function
Integrated illumination
Separately controllable LED
2 m PUR cable
PA housing
IP65, IP67 and IP69K protection
Machine operator panels
Automation control interfaces
Production machinery
Packaging machines
Assembly equipment
Factory automation systems
Industrial control cabinets
Machine function controls
Process equipment interfaces
Operator command stations
| Specification | Details |
|---|---|
| Product Code | KT5110 |
| Model | KTMSF-KGRBPKG/2M |
| Product Type | Illuminated capacitive touch sensor |
| Sensing Range | Capacitive touch sensing |
| Electrical Design | DC PNP |
| Output Function | Normally open |
| Operating Voltage | 24 V DC ±20% |
| Current Consumption | Approx. 30 mA |
| Housing Material | PA |
| Housing Design | M22 panel-mount design |
| Connection | 2 m PUR cable |
| Connector | Cable connection |
| Protection Rating | IP65 / IP67 / IP69K |
| Protection Class | Model-specific |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | -40 to 85 °C |
| Installation | Panel installation |
| Mounting | M22 |
| LED Indicator | Integrated, separately controllable illumination |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Reverse Polarity Protection | Model-specific |
| Weight | Model-specific |
| Additional Information | Static evaluation; current rating classification up to 200 mA |
