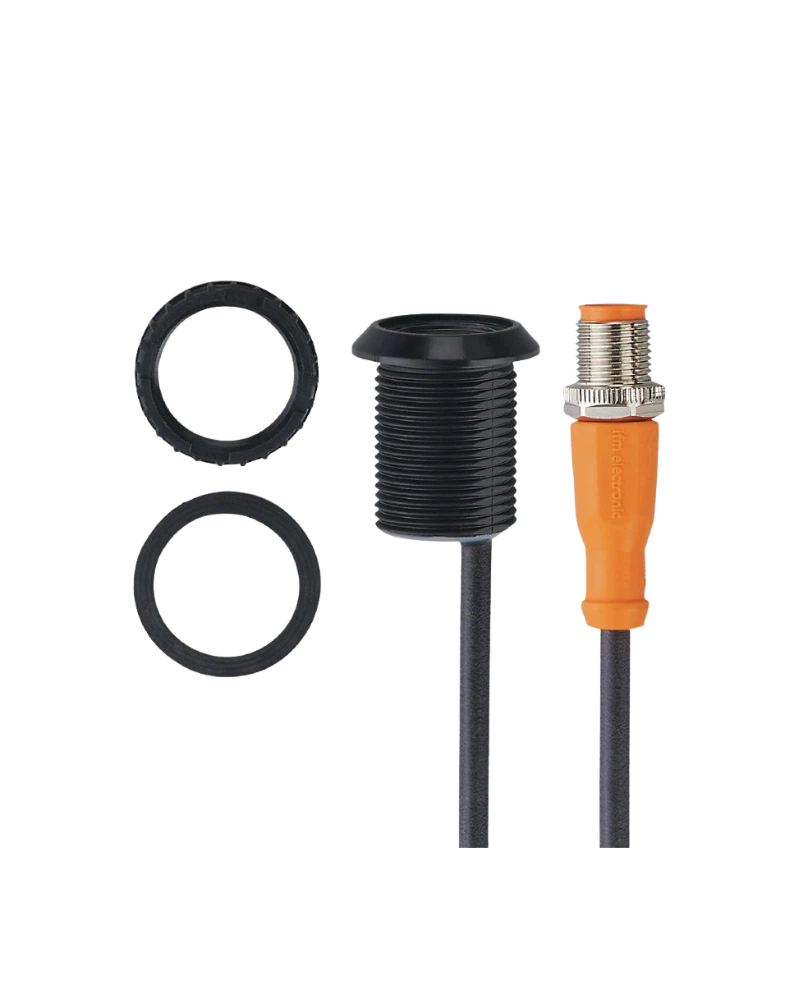

The IFM KT5106 is an illuminated capacitive touch sensor designed for intuitive industrial machine control. Its M22 panel-mount design combines reliable touch detection with integrated visual indication. The sensor features a PA housing, 0.3 m PUR cable and M12 plug connection, making it suitable for control panels, automation equipment and machine interfaces where convenient operation and clear visual feedback are required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KT5106 provides a modern touch-based switching solution for industrial operator interfaces. Capacitive sensing enables activation through touch without conventional mechanical button movement. Its M22 mounting arrangement supports straightforward panel integration, while the illuminated surface provides clear operator feedback. The compact construction makes it suitable for machine builders developing space-efficient and user-friendly automation control interfaces.
The sensor supports dependable touch operation in industrial environments where controls are frequently accessed. Its 0.3 m PUR cable with M12 plug provides a practical connection arrangement for panel installations. The IP65, IP67 and IP69K protection levels support applications exposed to dust, moisture and intensive cleaning. The illuminated touch area also helps operators quickly locate and activate the required machine function.
The KT5106 combines capacitive touch technology, illumination and industrial construction in a compact M22 format. Its DC PNP normally open switching design can be integrated into suitable automation circuits. The PA housing, PUR cable and high ingress protection provide a practical solution for modern industrial control panels. It is suitable for machine builders seeking intuitive touch operation with visible operator feedback.
Illuminated capacitive touch sensing
M22 panel-mount design
Static evaluation principle
DC PNP normally open output
Integrated visual illumination
0.3 m PUR cable
M12 plug connection
PA housing
IP65, IP67 and IP69K protection
Suitable for industrial machine interfaces
Industrial machine control panels
Automation operator interfaces
Production machinery
Packaging equipment
Assembly-line controls
Factory automation systems
Industrial equipment interfaces
Machine function activation
Process equipment controls
Operator command stations
| Specification | Details |
|---|---|
| Product Code | KT5106 |
| Model | KTMSF-K-RBPKG/US/0,3M |
| Product Type | Illuminated capacitive touch sensor |
| Sensing Range | Capacitive touch sensing |
| Electrical Design | DC PNP |
| Output Function | Normally open |
| Operating Voltage | 12–30 V DC |
| Current Consumption | Approx. 30 mA |
| Housing Material | PA |
| Housing Design | M22 panel-mount design |
| Connection | 0.3 m PUR cable |
| Connector | M12 plug |
| Protection Rating | IP65 / IP67 / IP69K |
| Protection Class | Model-specific |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | -40 to 85 °C |
| Installation | Panel installation |
| Mounting | M22 |
| LED Indicator | Integrated illumination |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
| Reverse Polarity Protection | Model-specific |
| Weight | Model-specific |
| Additional Information | Static evaluation; current rating classification up to 200 mA |
