The IFM KT5006 is a compact capacitive touch sensor for contactless industrial switching. It uses a static operating principle with a PNP normally open output. The sensor provides a 100 mm diameter activation surface and clear LED feedback. A 0.3 m PUR cable with an M8 connector provides the electrical connection. IP67 and IP69K front protection support reliable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KT5006 uses static capacitive sensing to detect operator interaction without mechanical actuation. The contactless principle eliminates physical switch movement. Its large 100 mm activation area provides convenient access for machine operators. The design is suitable for repeated switching actions. This approach can reduce mechanical wear compared with traditional push buttons.
The sensor uses a PNP normally open output. Operating voltage is 12 to 30 V DC and current consumption is approximately 30 mA. The switching output supports 200 mA permanent current. Short-circuit and overload protection are included. Reverse polarity protection is provided for electrical installation reliability.
Eight red LEDs indicate switching status. Eight green LEDs indicate operating status. The two indication groups provide clear feedback from the sensor face. This helps operators identify the sensor condition during machine operation. The front-facing LED arrangement also supports convenient visual diagnostics.

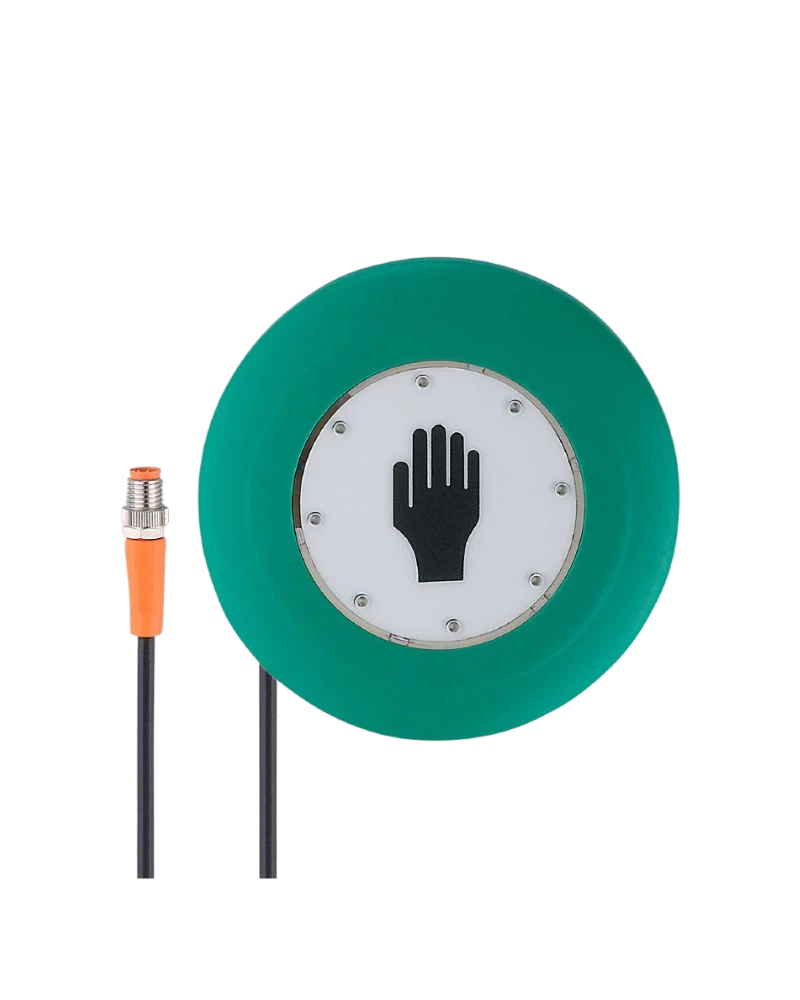

The KT5006 uses a 100 mm diameter and 11 mm length cylindrical body. The activation face is made from transparent PA Grilamid TR 90UV. The housing uses black PC/ABS with a green PC/ABS surround. A 0.3 m PUR cable terminates in an A-coded M8 connector. The documented weight is 129.5 g.
Capacitive touch sensing
Static operating principle
Contactless switching
PNP normally open output
12...30 V DC
30 mA current consumption
200 mA output current
500 ms maximum power-on delay
35 ms response time
Short-circuit protection
Overload protection
Reverse polarity protection
Class III
IP67 protection
IP69K front protection
8 red switching LEDs
8 green operating LEDs
100 mm diameter
11 mm length
129.5 g weight
0.3 m PUR cable
A-coded M8 connector
Optional coloured surrounds
Oil-resistant design
Impact-resistant design
Scratch-resistant design
Maintenance-free operation
Operator control panels
Machine start controls
Packaging machines
Assembly equipment
Production machinery
Material handling equipment
Contactless push-button replacement
Operator acknowledgement systems
Industrial automation
Machine interface applications
The short 0.3 m cable minimizes excess wiring around the sensor. The A-coded M8 connector provides a compact industrial connection. This arrangement is suitable for installations where the sensor is mounted directly on machine panels. PUR cable provides a practical industrial connection material. The connectorized format can also simplify sensor replacement.
The contactless switching principle avoids mechanical button wear. The sensor is designed to resist oil, impact and scratches. IP69K front protection supports applications where intensive cleaning is required. LED indicators provide quick visual feedback during servicing. These characteristics make the KT5006 suitable for demanding industrial operator interfaces.
| Specification | KT5006 |
|---|---|
| Product type | Capacitive touch sensor |
| Order code | KTRSHMK-RBPKG/AM/AS/0,3M |
| Operating principle | Static |
| Electrical design | PNP |
| Output function | Normally open |
| Operating voltage | 12...30 V DC |
| Current consumption | 30 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Maximum power-on delay | 500 ms |
| Output current | 200 mA |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Response time | 35 ms |
| Ambient temperature | -40...85°C |
| Protection rating | IP67 / IP69K front |
| MTTF | 394 years |
| Housing shape | Cylindrical |
| Diameter | 100 mm |
| Length | 11 mm |
| Weight | 129.5 g |
| Activation surface | PA Grilamid TR 90UV |
| Housing material | PC/ABS black |
| Surround material | PC/ABS green |
| Switching indication | 8 × red LED |
| Operating indication | 8 × green LED |
| Optional accessory | Coloured surrounds |
| Cable | 0.3 m PUR |
| Connector | M8 A-coded |
