Capacitive Touch Technology

The KT5002 uses a dynamic capacitive sensing principle. It detects operator interaction without requiring mechanical pressure or physical switch movement. The large 100 mm activation area provides a broad interaction zone. This design reduces mechanical wear associated with conventional push buttons. The sensor is therefore suitable for frequently operated machine interfaces.

Electrical Design

The KT5002 uses a PNP normally open switching output. It operates from 12 to 30 V DC and has approximately 30 mA current consumption. The output supports 200 mA permanent current. Short-circuit and overload protection are included. Reverse polarity protection and class III construction support electrical reliability.

Visual Feedback

Eight red LEDs indicate switching status on the front of the sensor. Eight green LEDs indicate normal operation. This dual indication makes the sensor status easy to understand during machine operation. The large illuminated interface can also improve operator visibility. Different coloured external surrounds can be used as optional accessories.

Mechanical and Connection Design

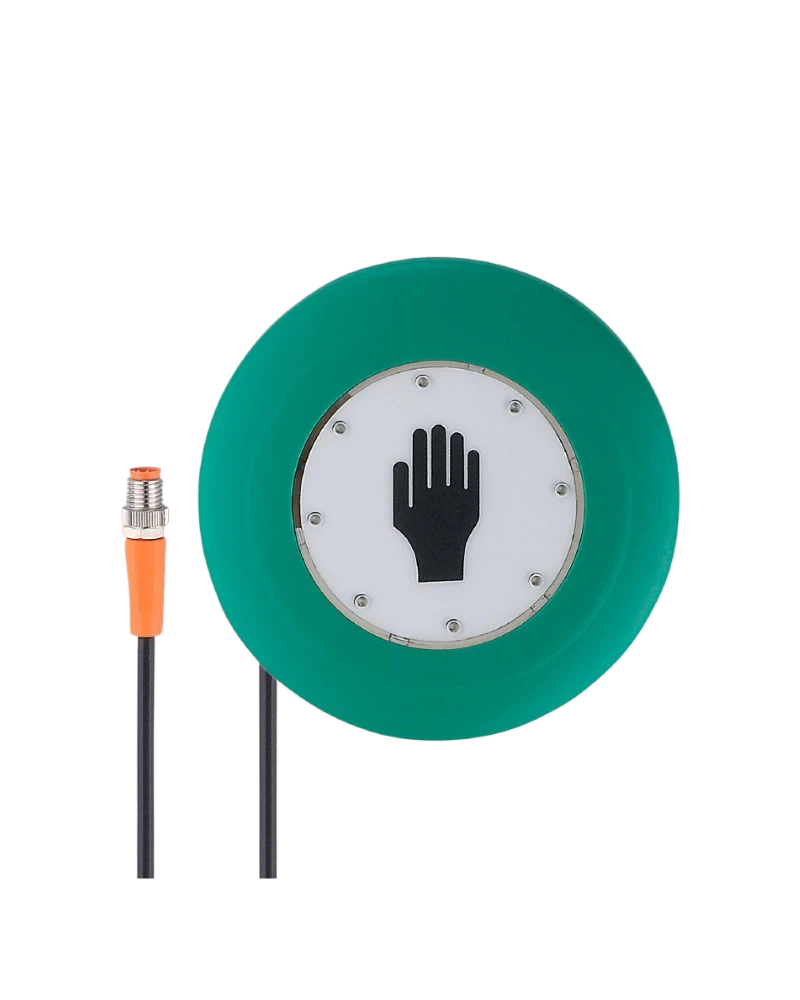

The KT5002 uses a cylindrical 100 mm diameter body with an 11 mm length. Its activation surface uses transparent PA Grilamid TR 90UV. The housing is black PC/ABS with a green PC/ABS surround. The 0.3 m PUR cable terminates in an M8 connector. The documented weight is approximately 131 g.

Key Features

Capacitive touch sensing

Dynamic operating principle

Contactless operation

PNP normally open output

12...30 V DC

30 mA current consumption

200 mA output current

500 ms maximum power-on delay

300 ms output signal length

35 ms response time

Short-circuit protection

Overload protection

Reverse polarity protection

Class III

8 red switching LEDs

8 green operating LEDs

100 mm diameter activation area

11 mm length

IP67 protection

IP69K front protection

0.3 m PUR cable

M8 connector

Applications

Machine operator interfaces

Contactless push-button applications

Packaging machines

Assembly stations

Production equipment

Material handling systems

Industrial control panels

Machine start commands

Operator acknowledgement controls

Automation equipment

Compact Wiring

The 0.3 m PUR cable keeps the connection close to the sensor. The M8 connector provides a compact standardized industrial interface. This arrangement is useful when the sensor is installed directly on a machine panel. PUR cable construction provides a suitable industrial cable material. The connectorized design also simplifies sensor replacement.

Maintenance Benefits

The contactless switching principle eliminates mechanical button wear. LED feedback helps technicians identify sensor status during maintenance. Electrical protection reduces the risk of damage from common wiring faults. The compact sensor format supports clean machine-panel integration. Optional coloured surrounds can also help differentiate control functions.
