Contactless Touch Operation

The KT5001 detects user interaction through capacitive technology without requiring mechanical button movement. Its dynamic operating principle is designed for reliable touch-based switching. The 100 mm activation surface provides a large target area for operators. The absence of mechanical contacts reduces mechanical wear. This makes the sensor suitable for frequently operated machine controls.

Electrical Performance

The sensor uses a PNP normally open output. It operates from 12 to 30 V DC with a current consumption of approximately 30 mA. The switching output supports 200 mA permanent current. Short-circuit and overload protection are included. Reverse polarity protection and a protection class of III further support safe installation.

Visual Indication

The KT5001 uses eight red LEDs to indicate switching status. Eight green LEDs indicate operating status. The LED arrangement provides clear visibility from the front of the sensor. This can help operators distinguish between active switching and normal operating conditions. Visual feedback is particularly useful on machine control panels and operator interfaces.

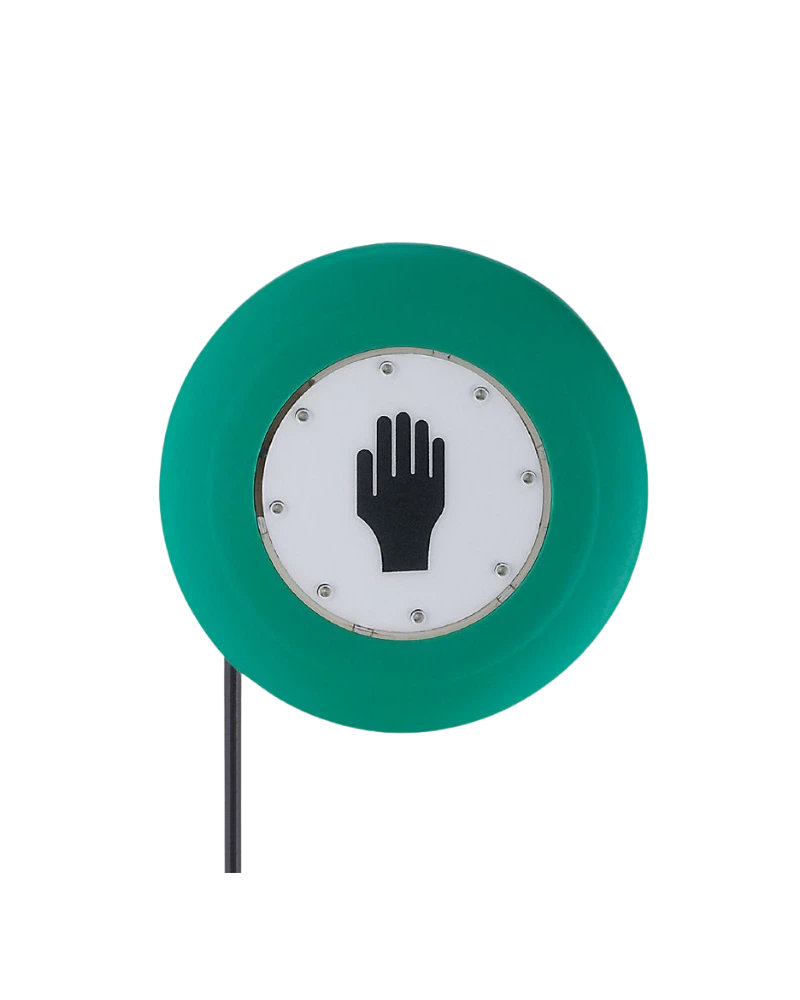

Mechanical Design

The sensor has a cylindrical format with a 100 mm diameter and an 11 mm length. Its activation face is made from transparent PA Grilamid TR 90UV. The housing uses black PC/ABS with a green PC/ABS coloured surround. The documented weight is 160 g. Optional surrounds are available in different colours.

Key Features

Capacitive touch sensing

Contactless switching

Dynamic operating principle

PNP normally open output

12...30 V DC

30 mA current consumption

200 mA output current

500 ms maximum power-on delay

300 ms output signal length

35 ms response time

Short-circuit protection

Overload protection

Reverse polarity protection

Protection class III

8 red switching LEDs

8 green operating LEDs

100 mm diameter activation surface

11 mm sensor length

IP67 protection

IP69K front protection

2 m PUR cable

Applications

Machine operator controls

Industrial control panels

Contactless push-button replacement

Packaging machinery

Production machines

Material handling systems

Operator interfaces

Assembly equipment

Industrial automation

Hygienic machine-control environments

Operator Interface Benefits

The large capacitive activation area allows operators to trigger switching without mechanical button movement. This can simplify repeated machine-control actions. The red and green LED indicators provide direct visual feedback. The contactless principle avoids mechanical button wear. These features make the KT5001 suitable for high-use operator interfaces.

Industrial Durability

The sensor is designed for demanding industrial environments. Its front protection reaches IP69K, supporting applications involving intensive cleaning conditions. The PC/ABS housing provides a robust enclosure around the electronic assembly. The PA Grilamid activation face is designed for repeated operator interaction. Electrical protection features further improve operational reliability.
