The IFM KQ6004 is a compact DC PNP capacitive sensor designed for non-contact material detection. It provides a 12 mm sensing range with selectable normally open and normally closed operation. The sensor includes IO-Link communication for parameterization and diagnostics. Its 0.04 m PVC cable and M8 connector support compact machine installation. IP65/IP67/IP69K protection makes it suitable for industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The capacitive sensing principle allows the KQ6004 to detect suitable materials without mechanical contact. Its 12 mm nominal sensing range provides reliable detection for level and presence applications. The real sensing range is 12 ±10%. Hysteresis is specified at 1 to 15% of Sr. The sensor can therefore be used for dry bulk and liquid detection applications.
IO-Link 1.1 communication provides access to digital sensor parameters and process information. The device uses COM1 transmission at 4.8 kBaud. SIO mode allows the sensor to operate as a conventional switching device. The minimum process cycle time is 100.8 ms. This architecture supports integration into intelligent automation systems.
The KQ6004 uses a PNP output stage and operates from 10 to 30 V DC. Current consumption is below 17 mA. The switching output can continuously handle 100 mA and has a maximum voltage drop of 2.5 V. Short-circuit and overload protection support dependable operation. Reverse polarity protection is also provided.

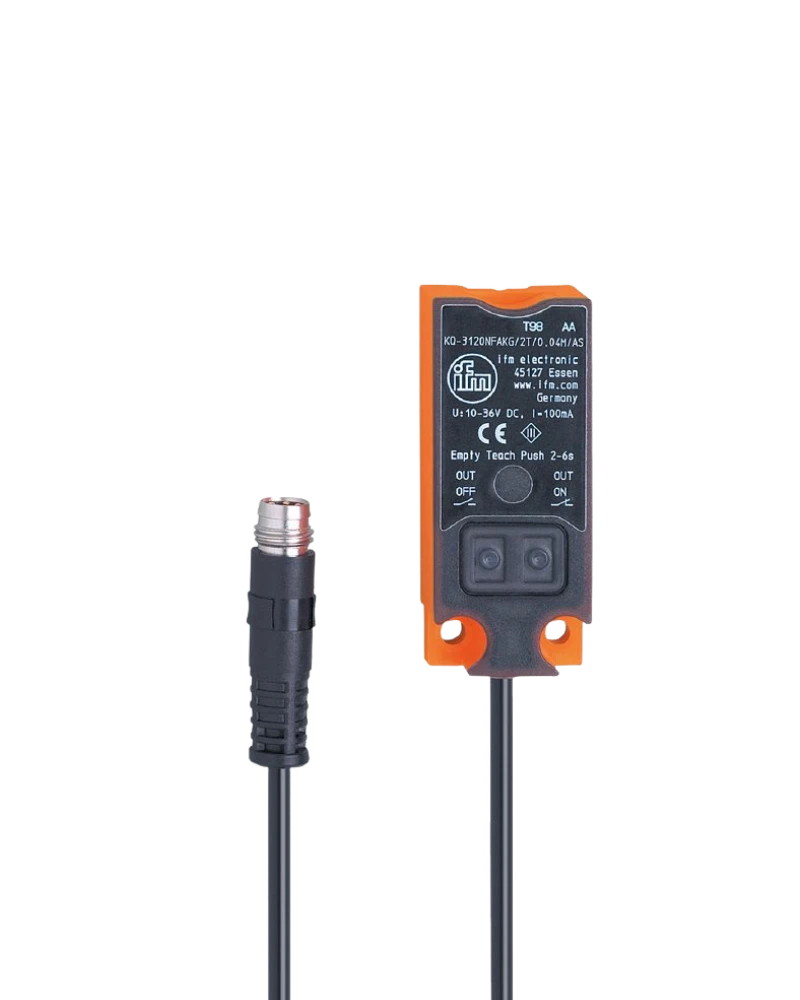

The sensor has a 20 × 14 × 48 mm rectangular housing. It is intended for non-flush installation and uses a reinforced PBT housing. Programming buttons are made from TPE-U and the cover uses reinforced PC. A yellow LED provides switching-status feedback. The 0.04 m PVC cable connects to an M8 connector.
12 mm capacitive sensing range
DC PNP output
NO / NC selectable switching
IO-Link 1.1
COM1 communication
10...30 V DC
<17 mA current consumption
100 mA output current
10 Hz switching frequency
2.5 V maximum voltage drop
Short-circuit protection
Overload protection
Reverse polarity protection
Yellow LED
Teach function
Electronic lock
20 × 14 × 48 mm housing
0.04 m PVC cable
M8 connector
IP65 / IP67 / IP69K
Liquid level detection
Dry bulk material detection
Non-metallic container monitoring
Bypass-pipe detection
Filling equipment
Packaging machinery
Material presence sensing
Process control
Conveyor applications
Industrial automation
The compact housing allows the sensor to fit into restricted machine spaces. Its short cable and M8 connector minimize wiring bulk around the sensor. Teach functionality simplifies initial commissioning and setup. The electronic lock helps protect configured parameters from accidental changes. IO-Link provides an additional path for centralized parameter management.
The reinforced housing is designed for industrial sensing environments. IP65, IP67 and IP69K protection provide multiple levels of ingress protection. Electrical protection features help protect the sensor against common wiring faults. The 10 Hz switching frequency is appropriate for many level and presence applications. Combined mechanical and electrical protection supports dependable long-term operation.
| Specification | KQ6004 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KQ-3120NFPKG/2T/0,04M/AS |
| Measuring principle | Capacitive |
| Electrical design | PNP |
| Output function | NO / NC selectable |
| Sensing range | 12 mm |
| Real sensing range | 12 ±10% |
| Hysteresis | 1...15% of Sr |
| Switch-point drift | -20...20% of Sr |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission type | COM1, 4.8 kBaud |
| SIO mode | Yes |
| Minimum process cycle | 100.8 ms |
| Operating voltage | 10...30 V DC |
| Current consumption | <17 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Voltage drop | 2.5 V max. |
| Output current | 100 mA |
| Switching frequency | 10 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Ambient temperature | -25...80°C |
| Protection rating | IP65 / IP67 / IP69K |
| Housing | Rectangular |
| Mounting | Non-flush |
| Dimensions | 20 × 14 × 48 mm |
| Weight | 25.2 g |
| Connection | 0.04 m PVC cable, M8 |
