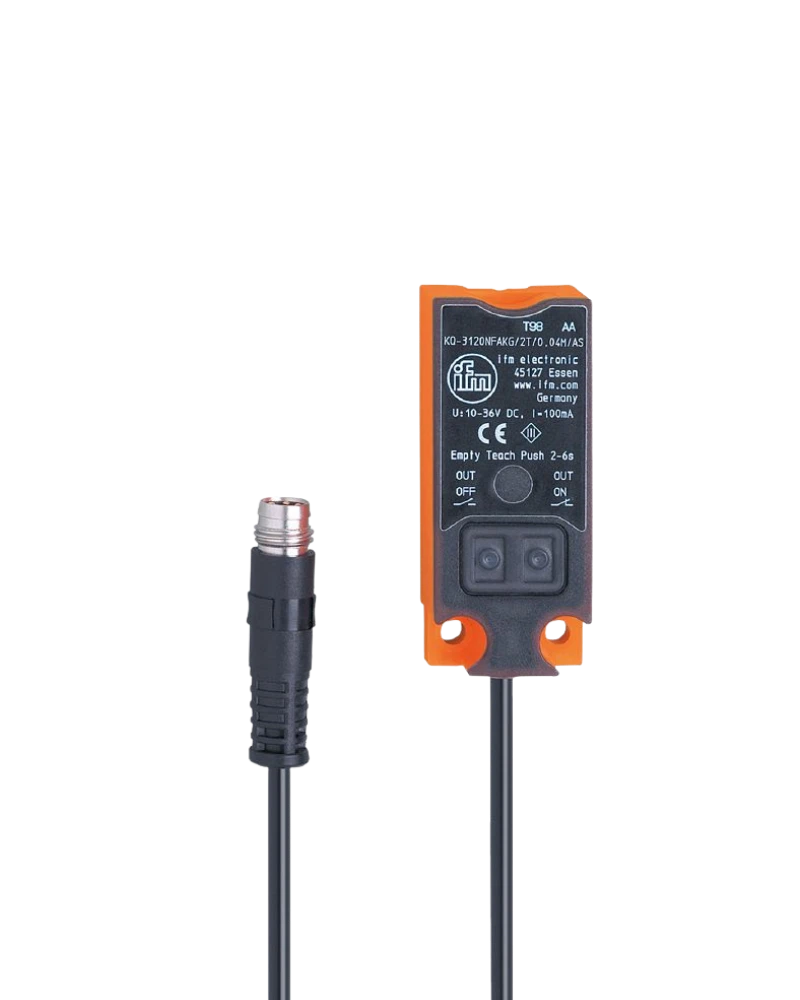

The IFM KQ6003 is a compact capacitive sensor with automatic load detection for PNP/NPN operation. It provides a 12 mm sensing range and supports detection through non-metallic container walls. The sensor uses a short 0.04 m PVC cable with an M8 connector. IO-Link provides parameterization and process-data communication. Its IP65/IP67/IP69K-rated construction supports reliable industrial installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KQ6003 uses capacitive sensing to detect dry bulk materials and liquids without physical contact. Its sensing range is 12 mm with a real sensing range of 12 ±10%. Hysteresis is specified between 1 and 15% of Sr. Switch-point drift is specified between -20 and 20% of Sr. The sensing principle is suitable for level and material-presence monitoring.
A key feature of the KQ6003 is automatic load detection for PNP/NPN operation. The sensor can automatically identify the connected load when a resistive load below 20 kΩ is used. This provides greater wiring flexibility than a fixed-output sensor. The switching output remains suitable for conventional automation interfaces. IO-Link additionally provides digital configuration and diagnostics.
The KQ6003 operates from 10 to 30 V DC with less than 17 mA current consumption. Its output supports 100 mA permanent current and a maximum voltage drop of 2.5 V. Switching frequency is 10 Hz for the DC output. Short-circuit and overload protection improve electrical robustness. Reverse polarity protection is also included.
The sensor has a 20 × 14 × 48 mm rectangular housing for non-flush mounting. Its housing uses glass-fibre-reinforced PBT with TPE-U programming buttons and a reinforced PC cover. A yellow LED indicates switching status. The 0.04 m PVC cable terminates in an M8 connector. The compact connectorized design is well suited to space-limited installations.
12 mm sensing range
Capacitive measuring principle
Automatic PNP/NPN load detection
IO-Link 1.1
COM1 4.8 kBaud
10...30 V DC
100 mA output current
10 Hz switching frequency
Normally open / normally closed functionality
Short-circuit protection
Overload protection
Reverse polarity protection
Yellow LED
Teach function
Electronic lock
20 × 14 × 48 mm housing
Non-flush mounting
0.04 m PVC cable
M8 connector
IP65 / IP67 / IP69K protection
Non-metallic tank level detection
Liquid level monitoring
Dry bulk material detection
Bypass-pipe monitoring
Packaging equipment
Filling machines
Process automation
Material presence detection
Industrial level control
Conveyor systems
Automatic load detection reduces the need for separate PNP and NPN sensor variants in suitable installations. This can simplify replacement planning and control-panel integration. The feature is particularly useful where different load configurations are encountered. IO-Link further improves commissioning flexibility through digital parameter access. Together, these functions provide a versatile sensing solution for automated processes.
The short 0.04 m cable keeps the electrical connection close to the sensor body. The M8 connector provides a standardized interface for industrial sensor cabling. Non-flush mounting allows the sensing face to remain positioned according to the application geometry. The yellow LED gives direct visual confirmation of switching status. The compact rectangular housing helps conserve installation space.
| Specification | KQ6003 |
|---|---|
| Product type | Capacitive sensor |
| Order code | KQ-3120NFAKG/2T/0,04M/AS |
| Measuring principle | Capacitive |
| Electrical design | Automatic PNP/NPN |
| Output function | NO / NC selectable |
| Sensing range | 12 mm |
| Real sensing range | 12 ±10% |
| Hysteresis | 1...15% of Sr |
| Switch-point drift | -20...20% of Sr |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission type | COM1, 4.8 kBaud |
| SIO mode | Yes |
| Minimum process cycle | 100.8 ms |
| Operating voltage | 10...30 V DC |
| Current consumption | <17 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Voltage drop | 2.5 V max. |
| Output current | 100 mA |
| Switching frequency | 10 Hz |
| Short-circuit protection | Yes, pulsed |
| Overload protection | Yes |
| Ambient temperature | -25...80°C |
| Protection rating | IP65 / IP67 / IP69K |
| Housing | Rectangular |
| Mounting | Non-flush |
| Dimensions | 20 × 14 × 48 mm |
| Weight | 25.2 g |
| Connection | 0.04 m PVC cable, M8 connector |
