Capacitive Detection Performance

The KQ6002 uses a capacitive measuring principle for detecting suitable materials without mechanical contact. Its nominal sensing range is 12 mm with a real sensing range of 12 ±10%. The sensor provides adjustable switching behavior through its programmable output function. Hysteresis is specified between 1 and 15% of the real sensing range. Switch-point drift is specified at -20 to 20% of Sr for controlled detection performance.

IO-Link Communication

The sensor incorporates an IO-Link communication interface for digital parameterization and diagnostics. It operates with IO-Link revision 1.1 and COM1 transmission at 4.8 kBaud. The device supports SIO operation when conventional switching is required. Its minimum process cycle time is 100.8 ms. This combination allows the KQ6002 to integrate easily into modern automation architectures.

Electrical Design

The KQ6002 uses a DC PNP electrical design with selectable normally open or normally closed output behavior. It operates from a 10 to 30 V DC supply and consumes less than 17 mA. The switching output supports a permanent current rating of 100 mA. Short-circuit and overload protection improve electrical reliability. Reverse polarity protection is also provided for safer industrial installation.

Mechanical Construction

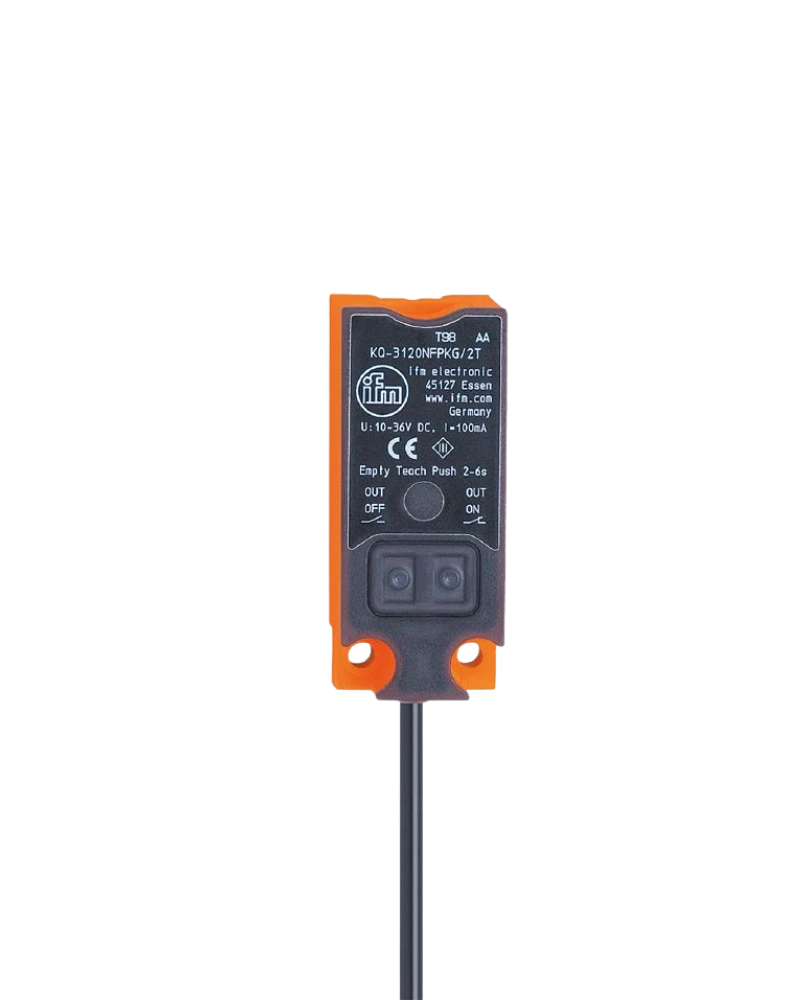

The rectangular sensor measures 20 × 14 × 48 mm and is designed for non-flush mounting. Its housing is manufactured from glass-fibre-reinforced PBT, while the buttons use TPE-U material. The cover is made from glass-fibre-reinforced PC. A yellow LED provides switching-status indication. A 2 m PVC cable with 3 × 0.14 mm² conductors provides the electrical connection.

Key Features

12 mm capacitive sensing range

DC PNP electrical design

Normally open / normally closed selectable output

IO-Link 1.1 communication

COM1 transmission at 4.8 kBaud

10...30 V DC operating voltage

100 mA permanent output current

10 Hz switching frequency

Short-circuit and overload protection

IP65 / IP67 / IP69K protection

Yellow switching-status LED

Teach function

Electronic lock

Non-flush mounting

20 × 14 × 48 mm compact housing

2 m PVC cable

3 × 0.14 mm² cable conductors

Applications

Level detection through non-metallic container walls

Dry bulk material detection

Liquid level monitoring

Bypass-pipe detection

Tank level monitoring

Material presence detection

Industrial filling equipment

Packaging machinery

Process automation

Conveyor material detection

Technical Advantages

The KQ6002 combines capacitive detection with digital IO-Link communication for flexible industrial integration. Its programmable switching function allows the output behavior to be adapted to the control requirement. The 12 mm sensing range provides useful detection capability in compact installations. Its reinforced housing supports reliable operation in demanding industrial environments. Protection against reverse polarity, short circuits and overloads further supports dependable operation.

Installation and Integration

The sensor is designed for non-flush installation and provides a compact rectangular mounting format. Its teach function simplifies initial sensor adjustment during commissioning. The electronic lock helps prevent unintended parameter changes after setup. The 2 m PVC cable provides convenient direct connection to control equipment. IO-Link connectivity also allows the sensor to be integrated into intelligent automation systems.
