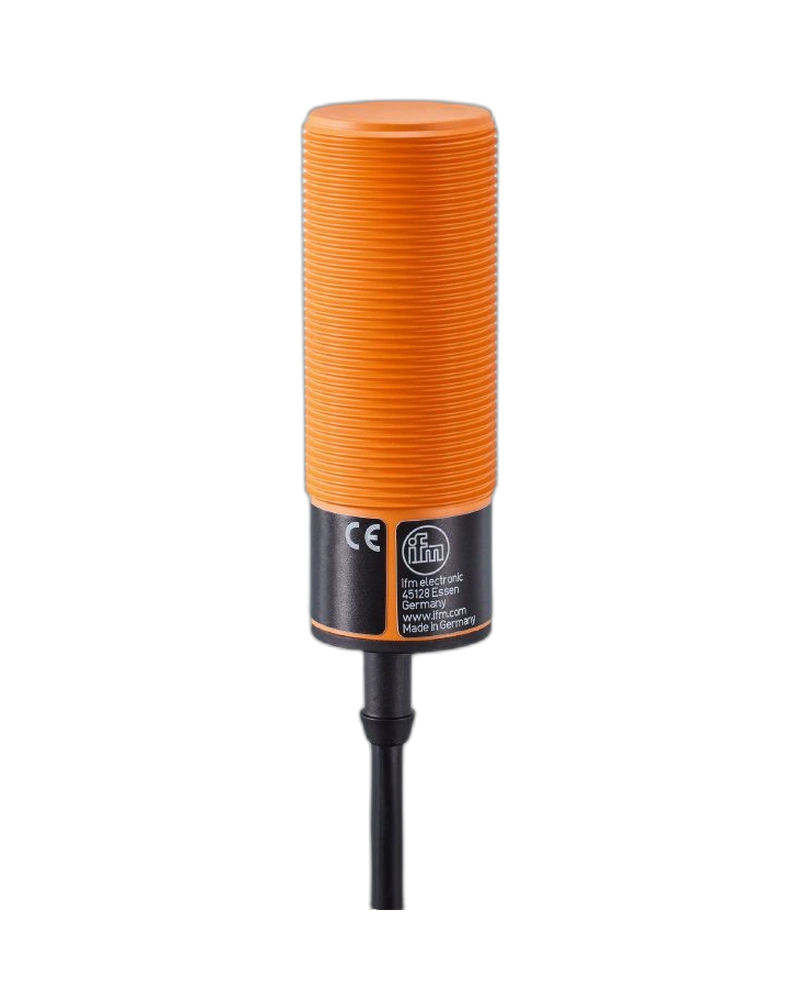

KI0207 is an IFM capacitive sensor designed for adjustable non-contact detection in industrial automation. The KI-2015-BBOA/NI/0,1/LS-100AK configuration provides a 3 to 15 mm sensing range, normally closed output, and a threaded M30 x 1.5 housing. Its two-wire technology and visible switching indication support reliable material and product detection in automated machinery
Explore performance details, construction highlights, applications, and technical information in one clear overview.
KI0207 provides adjustable capacitive sensing for industrial automation applications. Its sensing range is 3 to 15 mm, with an M30 x 1.5 threaded housing and 81 mm overall length. The sensor uses two-wire technology and is designed for non-contact detection of suitable materials and objects in automated machinery.
KI0207 operates with a 20 to 250 V AC/DC supply and provides normally closed output operation. Its real sensing range is 15 ±10%, with an operating distance of 0 to 12.1 mm. The adjustable sensing capability supports flexible installation and setup for product detection, material monitoring, and machine-control applications.
KI0207 provides adjustable capacitive detection with a broad supply-voltage range and practical threaded construction. Its visible switching indication supports commissioning and monitoring, while the adjustable sensing range helps adapt the sensor to different machine conditions. It is suitable for industrial automation and material-detection applications.
3 to 15 mm sensing range
Adjustable sensing range
Normally closed output
20 to 250 V AC/DC supply
M30 x 1.5 threaded housing
81 mm overall length
Real sensing range 15 ±10%
Operating distance 0 to 12.1 mm
Two-wire technology
Visible switching indication
Product presence detection
Material detection
Level monitoring
Container detection
Packaging machinery
Conveyor systems
Plastic detection
Liquid detection
Powder monitoring
Industrial automation
| Specification | Details |
|---|---|
| Product Code | KI0207 |
| Model | KI-2015-BBOA/NI/0,1/LS-100AK |
| Product Type | Capacitive sensor |
| Sensing Range | 3...15 mm |
| Electrical Design | Two-wire technology |
| Output Function | Normally closed |
| Operating Voltage | 20...250 V AC/DC |
| Current Consumption | Model-specific / refer to IFM datasheet |
| Housing Material | PBT / model-specific |
| Housing Design | Threaded type |
| Connection | Model-specific / refer to IFM datasheet |
| Connector | Model-specific / refer to IFM datasheet |
| Protection Rating | Model-specific / refer to IFM datasheet |
| Protection Class | II |
| Switching Frequency | 25 Hz AC / 50 Hz DC |
| Response Time | Model-specific / refer to IFM datasheet |
| Ambient Temperature | Model-specific / refer to IFM datasheet |
| Installation | Non-flush mounting |
| Mounting | M30 x 1.5 threaded |
| LED Indicator | Switching-status indication |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Reverse Polarity Protection | No |
| Weight | Model-specific / refer to IFM datasheet |
| Additional Information | Adjustable sensing range; factory setting 15 mm |
