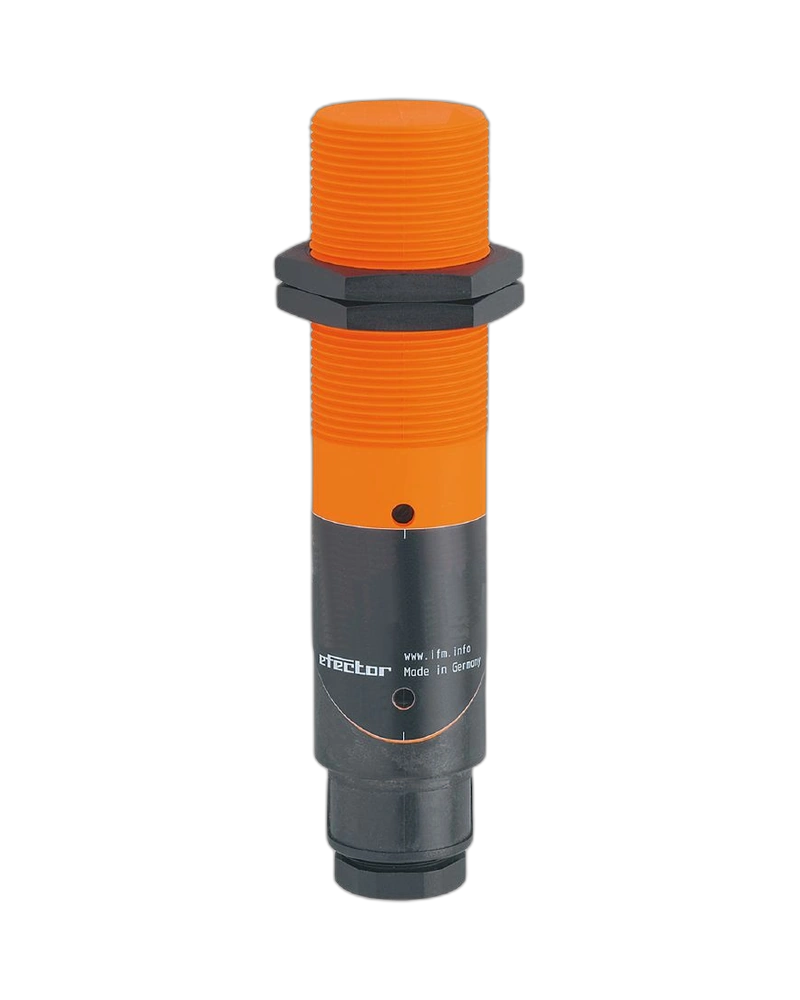

KI0205 is an IFM capacitive sensor designed for non-contact material detection in industrial automation applications. The KIE2015-FBOA/NI RT configuration provides an adjustable 3 to 15 mm sensing range and selectable normally open or normally closed output functionality. Its M30 x 1.5 threaded construction supports practical installation in machinery requiring reliable detection of products, materials, and process conditions
Explore performance details, construction highlights, applications, and technical information in one clear overview.
KI0205 is designed for flexible capacitive sensing in industrial machinery. The sensor provides a 3 to 15 mm adjustable sensing range and selectable output operation. Its M30 x 1.5 threaded probe housing provides a robust format for machine installation. Capacitive technology allows non-contact detection of suitable materials and objects.
The sensor operates from a 20 to 250 V AC/DC supply and provides flexible detection for industrial automation. Its adjustable sensing range allows users to adapt detection to different machine conditions. The RT configuration is suitable for applications requiring practical material detection, product monitoring, and machine-control feedback.
KI0205 is suitable when flexible capacitive detection and selectable switching behaviour are required. Its broad supply range, adjustable sensing capability, and threaded industrial construction support straightforward integration. The sensor is suitable for production machinery, packaging systems, material handling, and other automated processes.
3 to 15 mm sensing range
Adjustable sensing capability
Normally open/closed selectable output
20 to 250 V AC/DC supply
M30 x 1.5 threaded housing
125 mm overall length
Two-wire sensing technology
Visible switching indication
Non-contact material detection
Industrial automation compatibility
Product detection
Material detection
Container monitoring
Level detection
Packaging equipment
Conveyor automation
Production machinery
Plastic detection
Liquid detection
Process monitoring
| Specification | Details |
|---|---|
| Product Code | KI0205 |
| Model | KIE2015-FBOA/NI RT |
| Product Type | Capacitive sensor |
| Sensing Range | 3...15 mm |
| Electrical Design | Two-wire technology |
| Output Function | Normally open / normally closed selectable |
| Operating Voltage | 20...250 V AC/DC |
| Current Consumption | Model-specific / refer to IFM datasheet |
| Housing Material | Model-specific / refer to IFM datasheet |
| Housing Design | Threaded probe |
| Connection | Model-specific / refer to IFM datasheet |
| Connector | Model-specific / refer to IFM datasheet |
| Protection Rating | Model-specific / refer to IFM datasheet |
| Protection Class | II |
| Switching Frequency | Model-specific / refer to IFM datasheet |
| Response Time | Model-specific / refer to IFM datasheet |
| Ambient Temperature | Model-specific / refer to IFM datasheet |
| Installation | Industrial machine installation |
| Mounting | M30 x 1.5 threaded |
| LED Indicator | Switching-status indication |
| Short-Circuit Protection | Model-specific / refer to IFM datasheet |
| Overload Protection | Model-specific / refer to IFM datasheet |
| Reverse Polarity Protection | No |
| Weight | Model-specific / refer to IFM datasheet |
| Additional Information | RT version; adjustable capacitive sensing |
