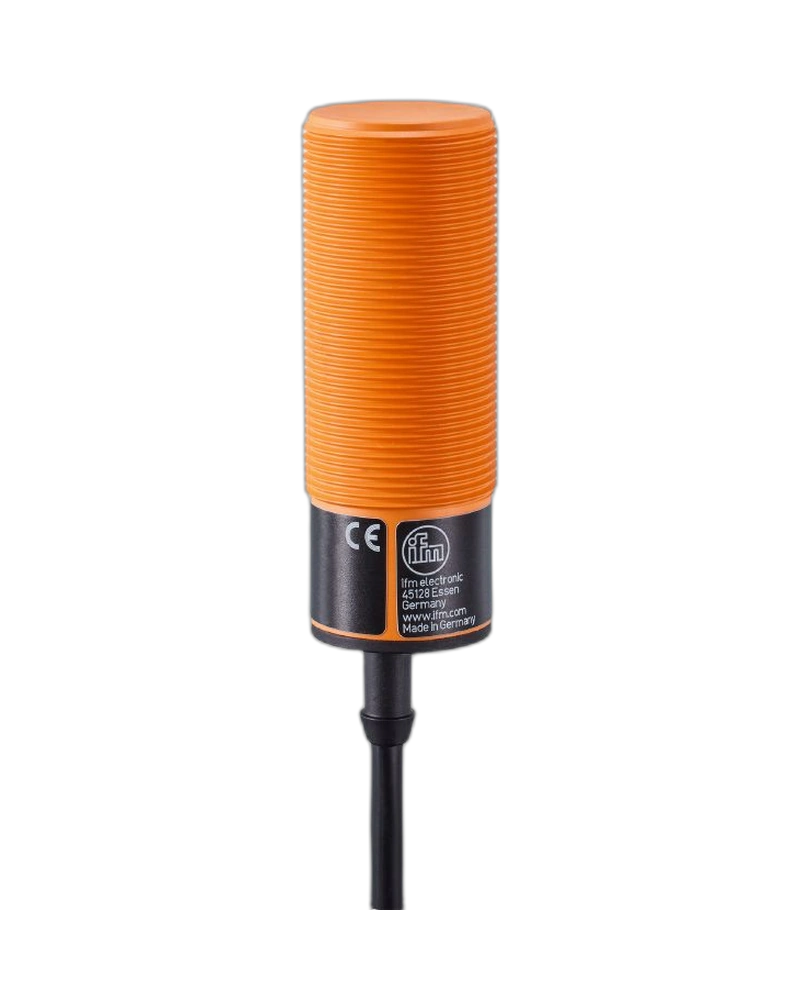

KI0203 is an IFM capacitive sensor for non-contact detection of materials, objects, and process conditions in industrial automation systems. The KI-2015-BBOA/NI model provides an adjustable sensing range of 3 to 15 mm and normally closed output operation. It uses a threaded M30 x 1.5 housing and supports industrial applications requiring flexible material detection and reliable switching.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
KI0203 is a threaded capacitive sensor designed for industrial material and object detection. Its sensing range is adjustable from 3 to 15 mm, with a factory setting of 15 mm. The sensor uses an M30 x 1.5 threaded housing with an overall length of 81 mm. Its capacitive technology enables non-contact detection of suitable materials in automated equipment.
KI0203 operates with a 20 to 250 V AC/DC supply and provides normally closed output functionality. The sensor offers a real sensing range of 15 ±10% mm and an operating distance of 0 to 12.1 mm. It is suitable for material presence, product detection, and automation applications where adjustable capacitive sensing is required.
KI0203 provides flexible capacitive detection with a broad supply-voltage range and adjustable sensing capability. Its industrial M30 threaded design supports practical installation, while the visible switching indication assists machine setup and monitoring. It is suitable for applications requiring reliable non-contact detection of different materials.
Adjustable 3 to 15 mm sensing range
Normally closed output
20 to 250 V AC/DC supply
M30 x 1.5 threaded housing
81 mm overall length
Real sensing range of 15 ±10% mm
Operating distance up to 12.1 mm
Two-wire industrial sensor technology
Visible switching indication
Non-contact material detection
Material presence detection
Product detection
Level monitoring
Container detection
Packaging machinery
Conveyor systems
Plastic detection
Liquid detection
Powder detection
Industrial automation
| Specification | Details |
|---|---|
| Product Code | KI0203 |
| Model | KI-2015-BBOA/NI |
| Product Type | Capacitive sensor |
| Sensing Range | 3...15 mm |
| Electrical Design | Two-wire technology |
| Output Function | Normally closed |
| Operating Voltage | 20...250 V AC/DC |
| Current Consumption | Model-specific / refer to IFM datasheet |
| Housing Material | PBT |
| Housing Design | Threaded type |
| Connection | Model-specific / refer to IFM datasheet |
| Connector | Model-specific / refer to IFM datasheet |
| Protection Rating | IP65 |
| Protection Class | II |
| Switching Frequency | 25 Hz AC / 40 Hz DC |
| Response Time | Model-specific / refer to IFM datasheet |
| Ambient Temperature | -25...70 °C |
| Installation | Non-flush mounting |
| Mounting | M30 x 1.5 threaded |
| LED Indicator | 1 x red LED |
| Short-Circuit Protection | No |
| Overload Protection | No |
| Reverse Polarity Protection | No |
| Weight | 181 g |
| Additional Information | Sensing range adjustable; factory setting 15 mm |
