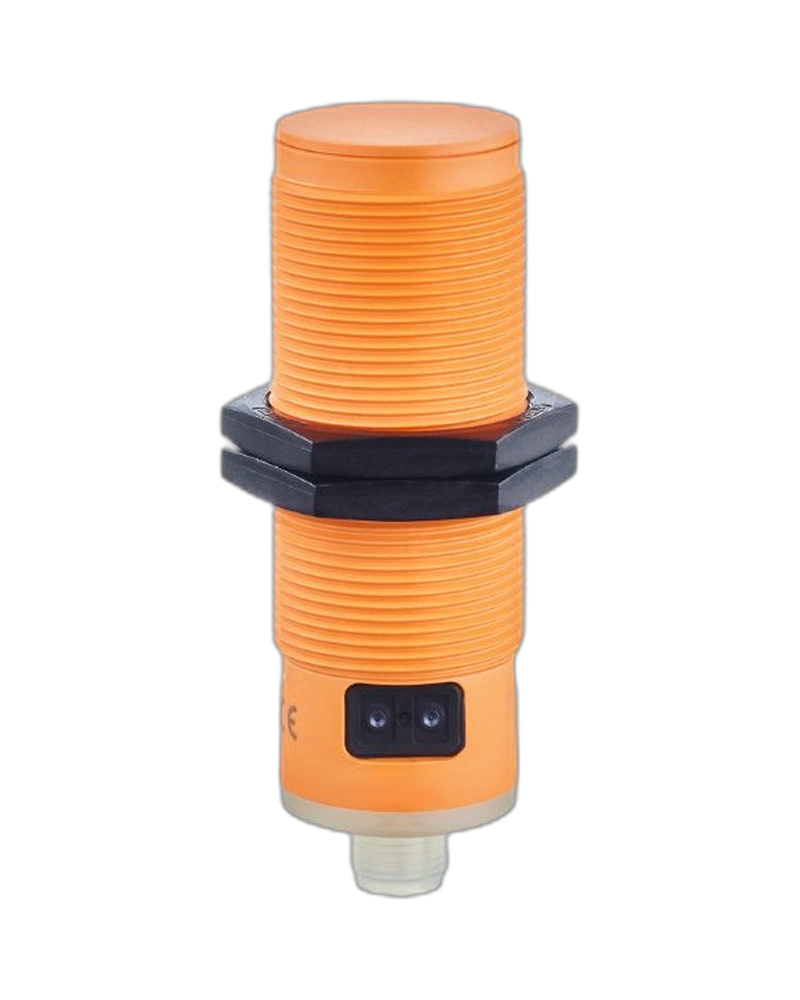

KI0064 is an IFM capacitive sensor designed for reliable detection of suitable materials in industrial automation systems. It provides a 20 mm sensing range with selectable normally open or normally closed output functionality. Integrated programming buttons allow convenient sensor setup and configuration. The M30 x 1.5 threaded housing provides a practical mounting format for industrial machinery. KI0064 is suitable for liquid detection, dry material detection and general process-monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
KI0064 uses capacitive sensing technology to detect suitable targets without physical contact. It provides a 20 mm sensing range for compatible detection applications. The sensor can be configured for normally open or normally closed switching. Its programmable output-hold settings provide additional flexibility for machine-control applications. Proper calibration and positioning are recommended for reliable operation.
The sensor includes programming buttons for convenient configuration. Seven output-hold-time settings can be programmed, ranging from 0 to 12 seconds. A yellow LED provides visible switching-status indication. The teach function allows convenient setup, while electronic locking helps prevent unwanted changes. These features make the sensor practical for machine commissioning and maintenance.
KI0064 features an M30 x 1.5 threaded housing with a 90 mm overall length. It operates from 30...250 V AC or 20...250 V DC and provides IP65/IP67 protection. The housing is made from PBT, with TPE-U pushbuttons and a PC LED window. The sensor is non-flush mountable and designed for compatible industrial installations. It can support automation, material detection and process-monitoring applications.
Capacitive sensor technology
20 mm sensing range
Selectable NO / NC output
Programming buttons
Seven programmable output-hold settings
0...12 second hold-time settings
Teach function
Electronic lock
Yellow LED indicator
M30 x 1.5 threaded housing
90 mm length
IP65 / IP67 protection
PBT housing
Non-flush mounting
30...250 V AC operation
20...250 V DC operation
Liquid detection
Dry material detection
Level monitoring
Object presence detection
Material monitoring
Industrial automation
Process control
Machine building
Packaging equipment
Production machinery
Conveyor systems
OEM machinery
Storage systems
Automated process monitoring
| Specification | Details |
|---|---|
| Product Code | KI0064 |
| Product Name | Capacitive Sensor |
| Model | KI-2200NFBOAP2T/LS100 |
| Sensor Type | Capacitive |
| Sensing Range | 20 mm |
| Output Function | NO / NC selectable |
| Output Hold Settings | 7 programmable settings |
| Hold-Time Range | 0...12 s |
| Operating Voltage AC | 30...250 V |
| Operating Voltage DC | 20...250 V |
| Rated Insulation Voltage | 250 V |
| Protection Class | II |
| Reverse Polarity Protection | Yes |
| Power-On Delay | 700 ms |
| Housing | Threaded |
| Thread Size | M30 x 1.5 |
| Overall Length | 90 mm |
| Mounting | Non-flush |
| Protection Rating | IP65 / IP67 |
| Ambient Temperature | -25...80 °C |
| Sensing Face Temperature | -25...110 °C |
| Switching Frequency AC | 10 Hz |
| Switching Frequency DC | 10 Hz |
| Housing Material | PBT |
| Connection | 1 x 1/2" connector, coding C |
