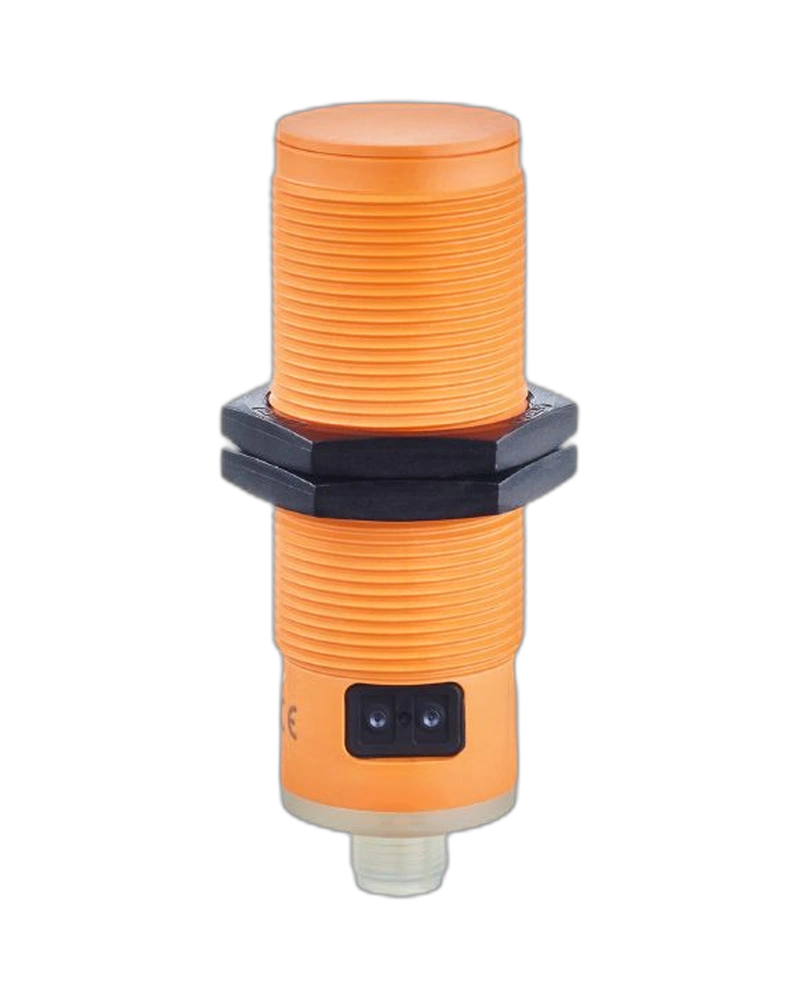

KI0063 is an IFM capacitive sensor designed for detecting liquids and dry bulk materials. It features a programmable sensing range and integrated programming buttons for convenient setup. The sensor provides selectable normally open and normally closed output functionality. Its M30 x 1.5 threaded housing supports practical industrial installation. KI0063 is suitable for level detection, material monitoring and automated process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
KI0063 uses capacitive sensing technology for detecting suitable liquids and dry bulk materials. Its sensing range is programmable from 5 to 40 mm. The factory setting is 20 mm, with a real sensing range of 20 ± 10%. Capacitive operation allows detection through suitable non-metallic container walls and bypass arrangements. Proper setup is important for reliable material detection.
The sensor includes programming buttons that simplify sensing-range configuration. Its output can be selected between normally open and normally closed operation. The integrated LED ring provides visible switching-status indication. The sensor also supports teach functionality and electronic locking. These features make commissioning and subsequent maintenance more convenient.
KI0063 has an M30 x 1.5 threaded housing and 90 mm overall length. It supports 30...250 V AC and 20...250 V DC operation. IP65/IP67 protection is specified for suitable industrial operating environments. The product is identified by IFM as a phase-out article, with KI0054 or KI6000 listed as alternatives. Technical data should be checked before selecting an alternative product.
Capacitive sensing
5...40 mm programmable sensing range
20 mm factory setting
Liquid detection
Dry bulk material detection
NO / NC selectable output
Programming buttons
LED ring
Teach function
Electronic lock
M30 x 1.5 housing
90 mm length
IP65 / IP67 protection
Wide AC/DC voltage range
Non-flush mounting
Industrial level monitoring
Liquid level detection
Dry bulk material detection
Container monitoring
Hopper applications
Bypass pipe detection
Material presence detection
Industrial automation
Process control
Packaging machinery
Production equipment
Material handling
OEM machinery
Machine monitoring
Automated process systems
| Specification | Details |
|---|---|
| Product Code | KI0063 |
| Product Name | Capacitive Sensor |
| Model | KI-2200NFBOAP2T/LS100 |
| Product Status | Phase-out |
| Sensor Type | Capacitive |
| Sensing Range | 20 mm |
| Programmable Range | 5...40 mm |
| Factory Setting | 20 mm |
| Real Sensing Range | 20 ± 10% |
| Output Function | NO / NC selectable |
| Operating Voltage AC | 30...250 V |
| Operating Voltage DC | 20...250 V |
| Rated Insulation Voltage | 250 V |
| Protection Class | II |
| Reverse Polarity Protection | Yes |
| Power-On Delay | 700 ms |
| Housing | Threaded |
| Thread Size | M30 x 1.5 |
| Overall Length | 90 mm |
| Mounting | Non-flush |
| Protection Rating | IP65 / IP67 |
| AC Switching Frequency | 10 Hz |
| DC Switching Frequency | 10 Hz |
| Permanent Output Current | 100 mA |
| Short-Time Output Current | 1000 mA |
