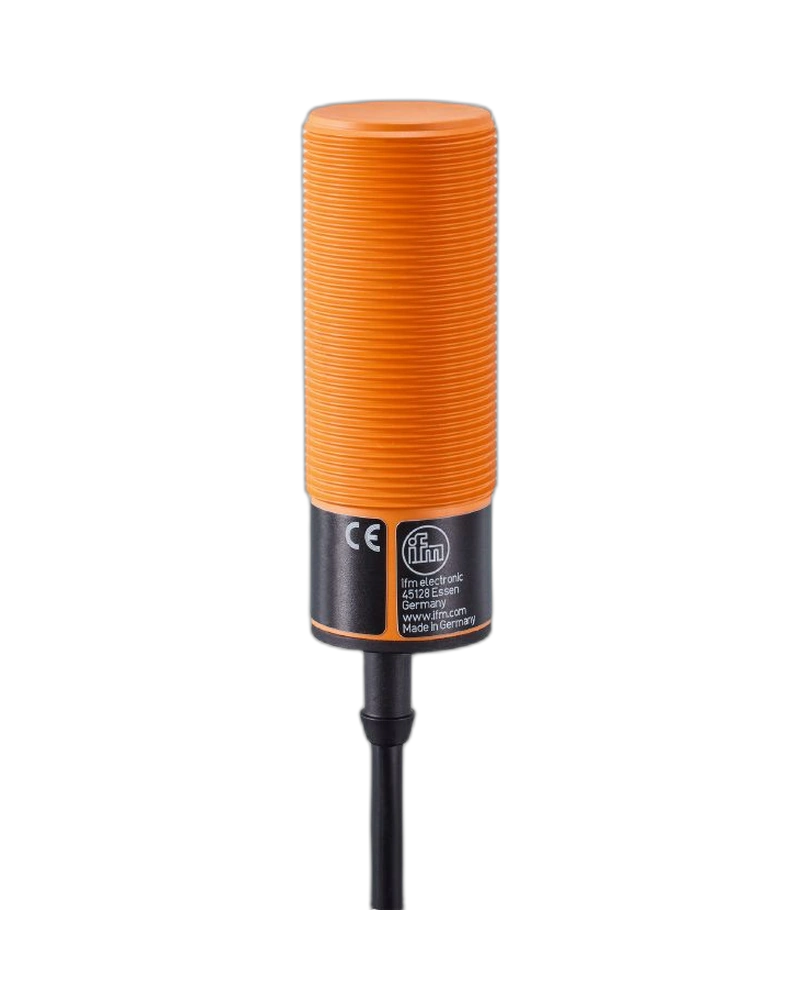

KI0061 is an IFM capacitive sensor designed for detecting liquids and dry bulk materials. It provides a 20 mm sensing distance with an adjustable sensing range for application-specific setup. The sensor uses a normally closed output and supports adjustable output-hold timing. Its M30 x 1.5 threaded housing is suitable for non-flush industrial mounting. KI0061 is suitable for level monitoring, material detection and automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
KI0061 uses capacitive sensing to detect suitable materials without direct physical contact. It provides a nominal sensing distance of 20 mm with a real sensing range of 20 ± 10%. The sensing distance can be adjusted to suit the application. Capacitive detection is suitable for liquids and dry bulk materials. Correct positioning and calibration help maintain consistent detection performance.
KI0061 provides a normally closed switching output for compatible control systems. Its output hold time can be adjusted from 0 to 60 seconds. Potentiometers are provided for sensing-distance and binary-output-delay adjustment. A yellow LED indicates the switching status during operation. These controls allow the sensor to be configured for different machine requirements.
The sensor uses an M30 x 1.5 threaded housing with an overall length of 81 mm. Its PBT housing and non-flush mounting arrangement support industrial installation. The device is rated IP65/IP67 and is specified for an ambient temperature range of -25...80 °C. It is suitable for compatible liquid-level and dry-material monitoring applications. KI0061 is an archived article, with IFM listing KI0021 or KI6000 as alternatives.
Capacitive sensing technology
20 mm sensing distance
Adjustable sensing distance
Normally closed output
Adjustable output hold time
0...60 second hold-time adjustment
M30 x 1.5 threaded housing
81 mm length
Yellow status LED
PBT housing
IP65 / IP67 protection
Non-flush mounting
20...250 V AC/DC operation
Two potentiometer controls
Industrial material detection
Liquid level monitoring
Dry bulk material detection
Container level sensing
Hopper monitoring
Material presence detection
Industrial automation
Process monitoring
Machine control
Production equipment
Packaging systems
Material handling
Storage equipment
OEM machinery
Automated process control
| Specification | Details |
|---|---|
| Product Code | KI0061 |
| Product Name | Capacitive Sensor |
| Model | KI-2200NBBOA/2P |
| Sensor Type | Capacitive |
| Sensing Distance | 20 mm |
| Adjustable Sensing Distance | Yes |
| Real Sensing Range | 20 ± 10% |
| Output Function | Normally closed |
| Output Hold Time | 0...60 s |
| Operating Voltage | 20...250 V AC/DC |
| Current Consumption | <20 mA |
| Protection Class | II |
| Reverse Polarity Protection | No |
| Housing | Threaded |
| Thread Size | M30 x 1.5 |
| Overall Length | 81 mm |
| Mounting | Non-flush |
| Protection Rating | IP65 / IP67 |
| Ambient Temperature | -25...80 °C |
| Sensing Face Temperature | -25...110 °C |
| AC Switching Frequency | 10 Hz |
| DC Switching Frequency | 10 Hz |
| Permanent Output Current | 200 mA |
| Housing Material | PBT |
| Cable | 2 m PVC, 2 x 0.5 mm² |
