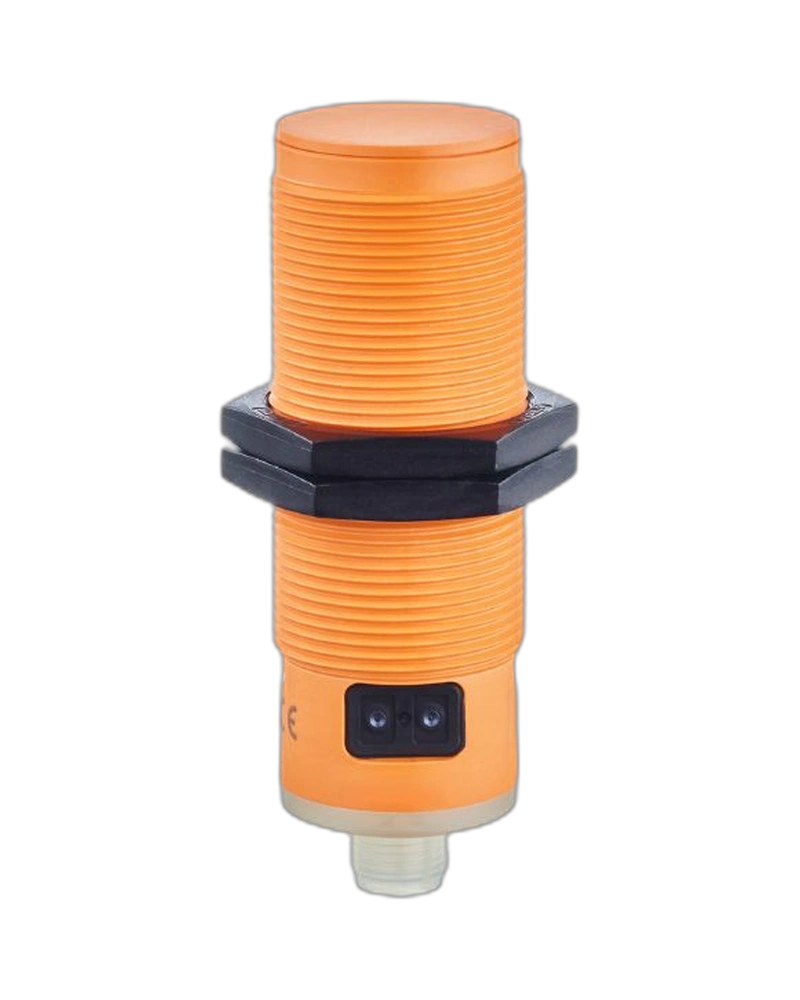

KI0058 is an IFM capacitive sensor designed for detecting liquids and dry bulk materials. Its programmable sensing range provides flexibility when configuring the sensor for different machine and process requirements. Integrated programming buttons simplify empty and full-state adjustment during installation. The sensor provides selectable normally open and normally closed output functionality. KI0058 is suitable for level monitoring, material detection and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
KI0058 is designed to detect liquids and dry bulk materials using capacitive sensing technology. The sensing range can be adjusted according to the installation and target material. Its default sensing range is 20 mm, while the programmable range extends from 5 to 40 mm. This flexibility makes it useful for different container and process arrangements. Proper installation and calibration help achieve reliable detection.
The sensor includes programming buttons for convenient setup during commissioning. The output can be configured between normally open and normally closed operation. The yellow LED ring provides visible switching-status feedback. Electronic locking can help prevent accidental parameter changes after configuration. These features simplify sensor setup and maintenance in automated equipment.
KI0058 is suitable for detecting materials through non-metallic container walls and bypass pipes. It can support liquid level monitoring as well as dry bulk material detection. The M30 x 1.5 threaded housing provides a practical mounting format. IP65/IP67 protection supports suitable industrial environments. The sensor can be integrated into automated process-control and material-handling systems.
Capacitive sensing technology
5...40 mm programmable sensing range
20 mm factory setting
Liquid detection
Dry bulk material detection
Programming buttons
NO / NC selectable output
Yellow LED ring
Teach function
Electronic lock
M30 x 1.5 threaded housing
90 mm length
IP65 / IP67 protection
PBT housing
Non-flush mounting
Wide AC/DC voltage range
Liquid level monitoring
Dry bulk material detection
Container monitoring
Hopper level detection
Bypass pipe monitoring
Material presence detection
Industrial automation
Process control
Packaging systems
Production equipment
Material handling
Storage systems
OEM machinery
Machine monitoring
| Specification | Details |
|---|---|
| Product Code | KI0058 |
| Product Name | Capacitive Sensor |
| Model | KI-2200NFBOAP2T/LS100 |
| Sensor Type | Capacitive |
| Measuring Principle | Capacitive |
| Sensing Range | 5...40 mm |
| Factory Setting | 20 mm |
| Real Sensing Range | 20 ± 10% |
| Output Function | NO / NC selectable |
| Operating Voltage AC | 30...250 V |
| Operating Voltage DC | 20...250 V |
| AC Frequency | 47...63 Hz |
| Rated Insulation Voltage | 250 V |
| Protection Class | II |
| Reverse Polarity Protection | Yes |
| Housing | Threaded |
| Thread Size | M30 x 1.5 |
| Overall Length | 90 mm |
| Mounting | Non-flush |
| Protection Rating | IP65 / IP67 |
| Ambient Temperature | -25...80 °C |
| Sensing Face Temperature | -25...110 °C |
| Permanent Output Current | 100 mA |
| Short-Time Output Current | 1000 mA |
| Housing Material | PBT |
