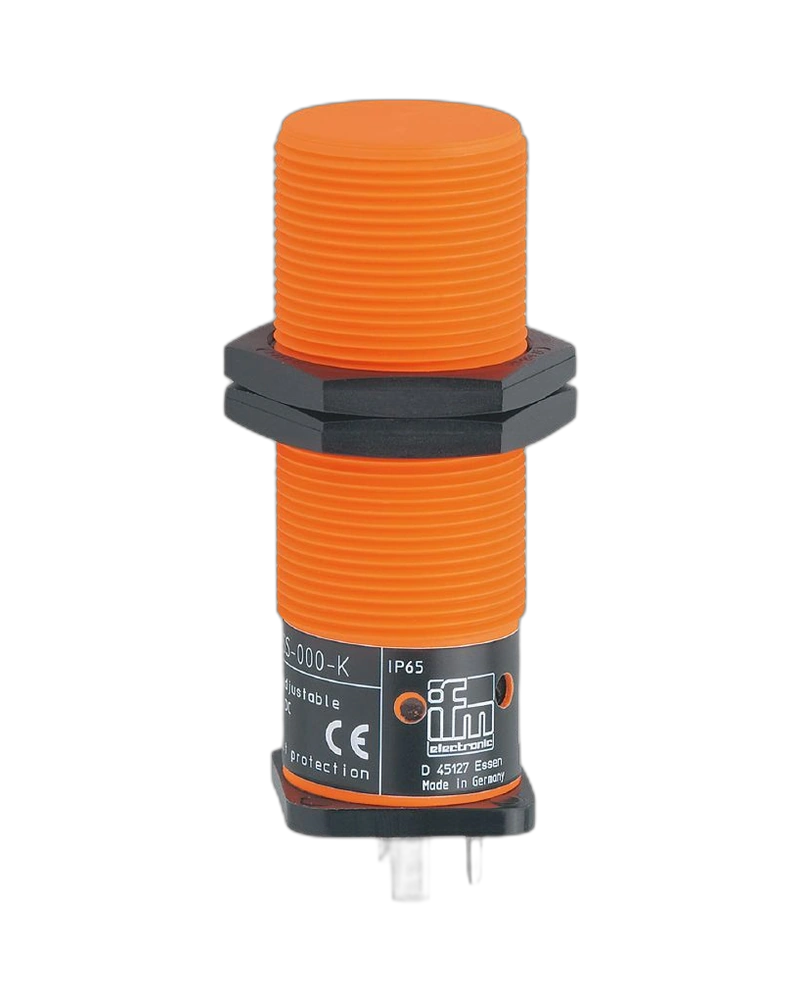

KI0040 is an IFM capacitive sensor designed for reliable non-contact detection in industrial automation applications. Its capacitive sensing principle allows detection of suitable materials and objects without physical contact. The M30 threaded housing provides a practical mounting arrangement for machine and equipment integration. The sensor offers a 15 mm sensing range with selectable normally open or normally closed output functionality. KI0040 is suitable for position detection, material detection and general industrial automation tasks.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
KI0040 uses capacitive sensing technology to detect changes in the surrounding electrical field. This allows the sensor to detect suitable targets without requiring physical contact with the sensing surface. The 15 mm sensing range provides a useful detection distance for many industrial applications. The sensing range can vary depending on the material being detected and its dielectric characteristics. Correct installation and target positioning help maintain consistent sensing performance.
The sensor supports a wide 20...250 V AC/DC operating voltage range for flexible industrial integration. Its output function can be selected between normally open and normally closed operation. The switching output supports permanent current ratings up to 200 mA under the specified conditions. AC and DC switching frequencies are specified at 25 Hz and 40 Hz respectively. Proper electrical protection and installation according to the manufacturer requirements are recommended.
KI0040 features a threaded M30 x 1.5 housing with an overall length of 92 mm. Its non-flush mounting arrangement provides a practical solution for compatible machine structures. The PBT housing offers a compact industrial construction suitable for automation equipment. The sensor includes a yellow LED for switching-status indication. It can be used for position detection, material monitoring and object presence applications.
Capacitive sensing technology
15 mm sensing range
Selectable normally open / normally closed output
20...250 V AC/DC operating voltage
M30 x 1.5 threaded housing
92 mm overall length
Non-flush mounting
Yellow switching-status LED
25 Hz AC switching frequency
40 Hz DC switching frequency
200 mA permanent switching current
IP65 protection
PBT housing
High-frequency interference immunity
DIN valve plug connection
Compact industrial construction
Object presence detection
Position detection
Material detection
Level monitoring
Industrial automation
Machine building
Production equipment
Conveyor systems
Packaging machinery
Material handling
OEM machinery
Process monitoring
Automated equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | KI0040 |
| Product Name | Capacitive Sensor |
| Model | KI-2015-FBOA/NI/SS-000-K |
| Sensor Type | Capacitive |
| Sensing Range | 15 mm |
| Real Sensing Range Sr | 15 ± 10% |
| Operating Distance | 0...12.1 mm |
| Output Function | NO / NC selectable |
| Operating Voltage | 20...250 V AC/DC |
| Housing | Threaded |
| Thread Size | M30 x 1.5 |
| Overall Length | 92 mm |
| Mounting | Non-flush |
| Protection Rating | IP65 |
| Ambient Temperature | -20...70 °C |
| Switching Frequency AC | 25 Hz |
| Switching Frequency DC | 40 Hz |
| Permanent Current AC | 200 mA |
| Permanent Current DC | 200 mA |
| Short-Time Current | 1500 mA |
| Minimum Load Current | 5 mA |
| Maximum Leakage Current | 2.5 / 1.7 / 1.5 mA |
| Housing Material | PBT |
| Status Indicator | Yellow LED |
| Connection | DIN valve plug Type A |
