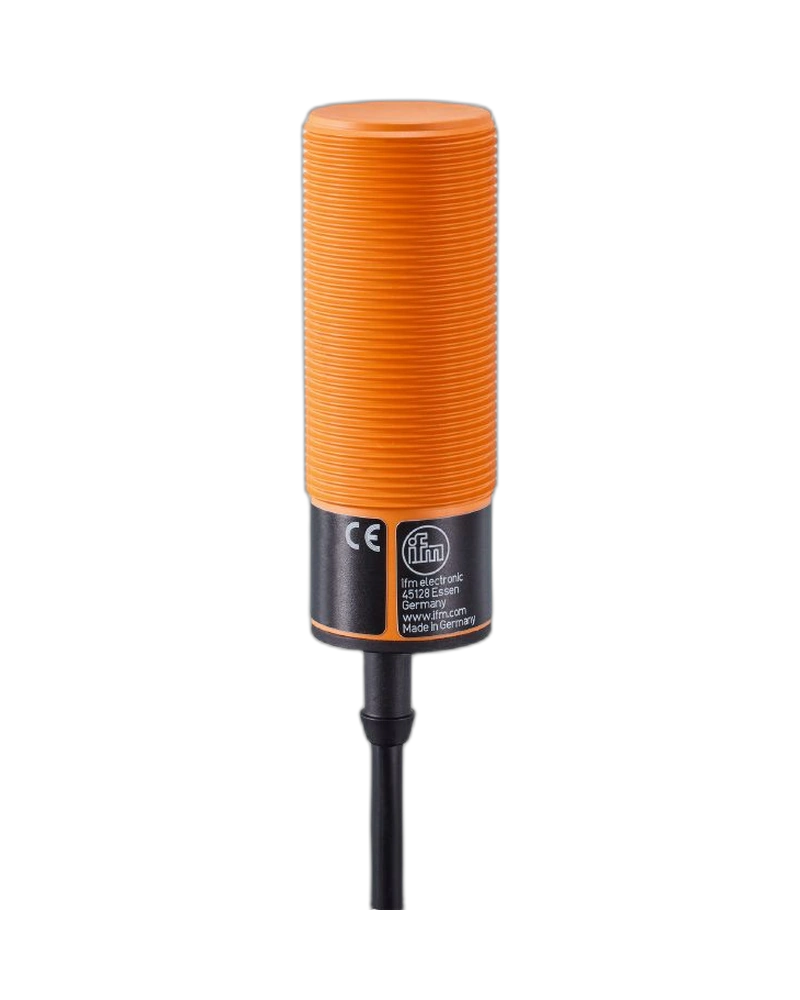

The KI0020 is an AC/DC capacitive sensor with a normally closed output. It provides a 15 mm adjustable sensing range and a 0–12.1 mm operating distance. The sensor operates from 20–250 V AC/DC with 25 Hz AC and 40 Hz DC switching. Its M30 × 1.5 PBT housing is designed for non-flush mounting. A yellow LED, 2 m PVC cable, and IP65 protection support conventional industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The KI0020 uses a 15 mm adjustable sensing range. The factory setting is 15 mm. The real sensing range is 15 ±10%. Its operating distance is 0–12.1 mm. Correction factors support glass, water, ceramics, and PVC targets.
The sensor uses a normally closed AC/DC output. It supports 250 mA continuous current under standard conditions. The short-time current rating is 1500 mA. AC switching frequency is 25 Hz and DC switching frequency is 40 Hz. Short-circuit and overload protection are not provided.
The M30 × 1.5 housing provides a threaded installation format. The sensor has an 81 mm dimensional length. Its PBT housing provides an industrial plastic construction. A yellow LED indicates switching status. The 2 m PVC cable provides two-wire connection.
15 mm sensing range
Normally closed
20–250 V AC/DC
25 Hz AC
40 Hz DC
M30 × 1.5
81 mm length
2 m PVC cable
IP65
Yellow LED
Position detection
Level monitoring
Bulk material detection
Liquid presence
Packaging machinery
Conveyor systems
Filling equipment
Process automation
The KI0020 is designed for conventional AC/DC sensor circuits. Its two-wire architecture reduces wiring requirements. The normally closed output provides a defined switching state. The adjustable sensing range allows installation tuning. This makes the sensor suitable for established industrial machinery.
The M30 × 1.5 thread provides secure mounting. Non-flush installation supports the specified capacitive sensing distance. The 2 m cable is suitable for typical machine wiring. IP65 protection supports standard industrial environments. The yellow LED provides local switching feedback.
| Specification | Value |
|---|---|
| Model | KI0020 |
| Order code | KI-2015-BBOA/NI |
| Sensor type | Capacitive |
| Output function | Normally closed |
| Sensing range | 15 mm |
| Adjustable | Yes |
| Factory setting | 15 mm |
| Real sensing range | 15 ±10% |
| Operating distance | 0–12.1 mm |
| Operating voltage | 20–250 V AC/DC |
| Protection class | II |
| Reverse polarity | No |
| DC voltage drop | 8 V |
| AC voltage drop | 10 V |
| Minimum load | 5 mA |
| Leakage current | 2.5/1.7/1.5 mA |
| Continuous AC current | 250 mA |
| Continuous DC current | 250 mA |
| Short-time current | 1500 mA |
| AC switching frequency | 25 Hz |
| DC switching frequency | 40 Hz |
| Short-circuit protection | No |
| Overload protection | No |
| Ambient temperature | -25 to 70°C |
| Protection | IP65 |
| Thread | M30 × 1.5 |
| Dimensions | L81 mm |
| Housing | PBT |
| Cable | 2 m PVC |
| Cable cores | 2 × 0.5 mm² |
